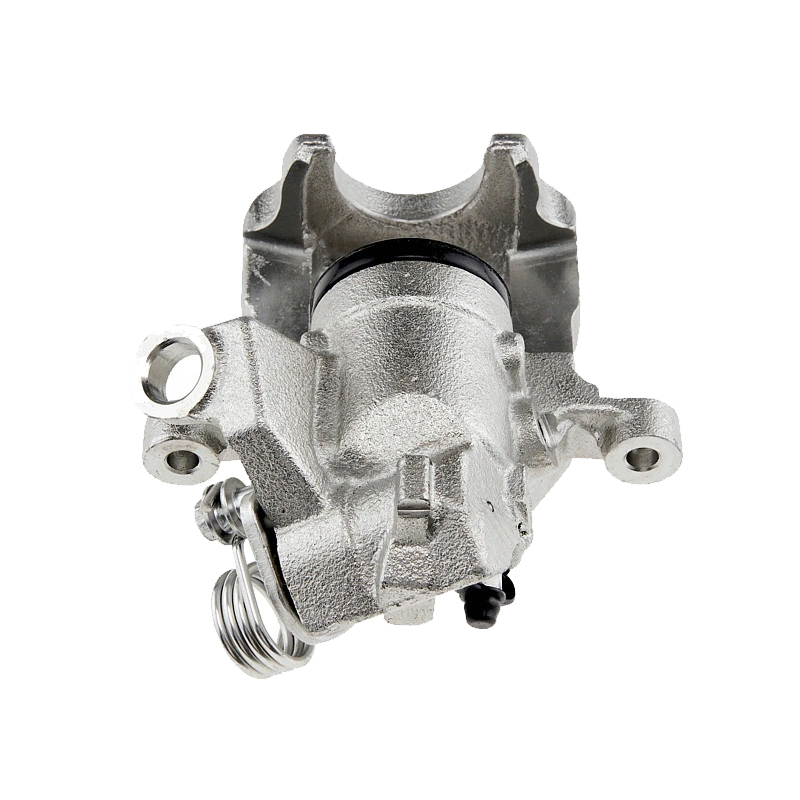

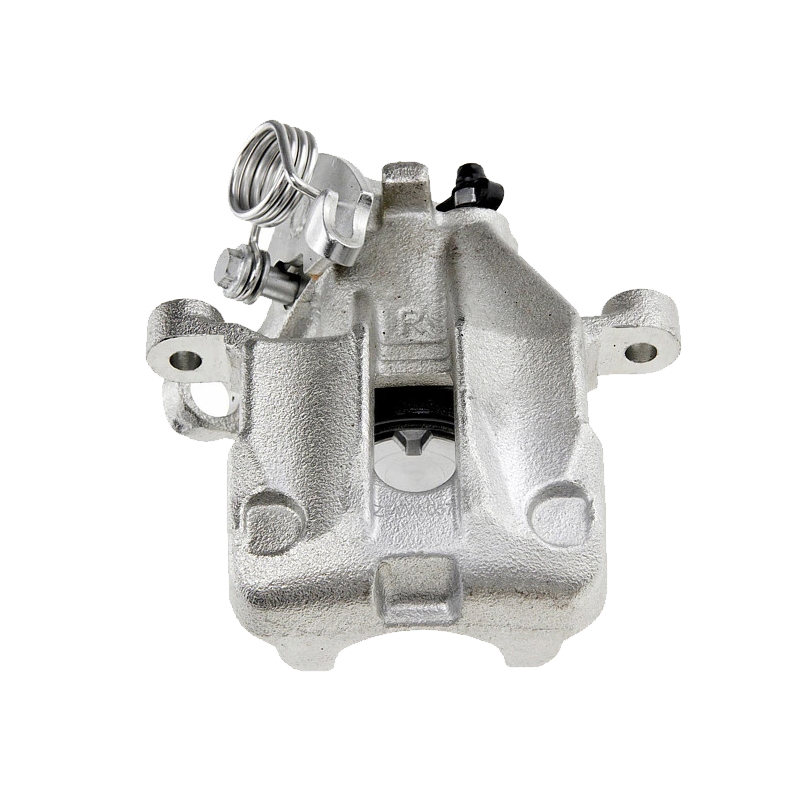

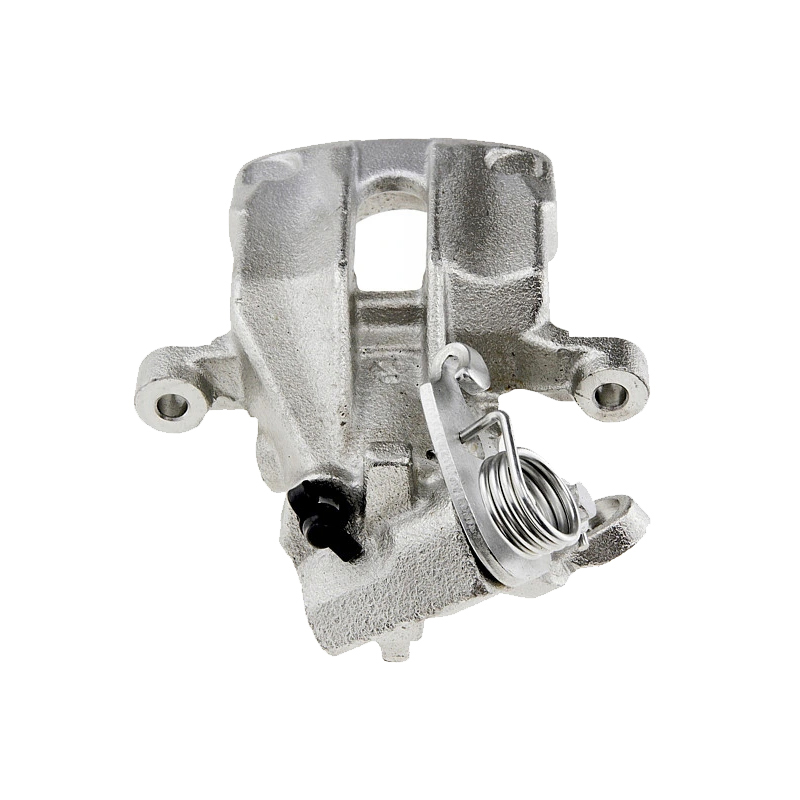

VW Seat Brake Caliper 191615424 535615424 191615424B 535615424X
Reference No.
| A.B.S. | 528842 |
| BUDWEG CALIPER | 341011 |
| TRW | BHN124E/ BHN128/ BHN128E/ BHN129/ BHN129E |
| ATE | 24.3384-1604.5 |
| BOSCH | 0986472673/0986472673 |
| Brake ENGINEERING | CA1169R |
Part List
| REPAIR KIT |
D4845C |
| PISTON |
233815 |
| REPAIR KIT |
203816 |
| GUIDE SLEEVE KIT |
169103 |
| REPAIR KIT, PARKING BRAKE HANDLE |
209912 |
| SEAL, PISTON |
183816 |
Compatible Applications
| VW PASSAT (3A2, 35I) (1988/02 – 1997/12) |
| VW PASSAT Variant (32B) (1980/08 – 1989/06) |
| VW PASSAT Variant (3A5, 35I) (1988/02 – 1997/06) |
| VW GOLF Mk II (19E, 1G1) (1983/08 – 1992/12) |
| VW GOLF Mk III (1H1) (1991/08 – 1998/07) |
| VW JETTA II Saloon (19E, 1G2, 165) (1983/08 – 1992/12) |
| VW VENTO (1H2) (1991/11 – 1998/09) |
| VW CORRADO (53I) (1987/08 – 1995/12) |
| SEAT CORDOBA Saloon (6K1, 6K2) (1993/02 – 1999/10) |
| SEAT TOLEDO I (1L) (1991/01 – 1999/10) |
| SEAT IBIZA Mk II (6K1) (1993/03 – 1999/08) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
