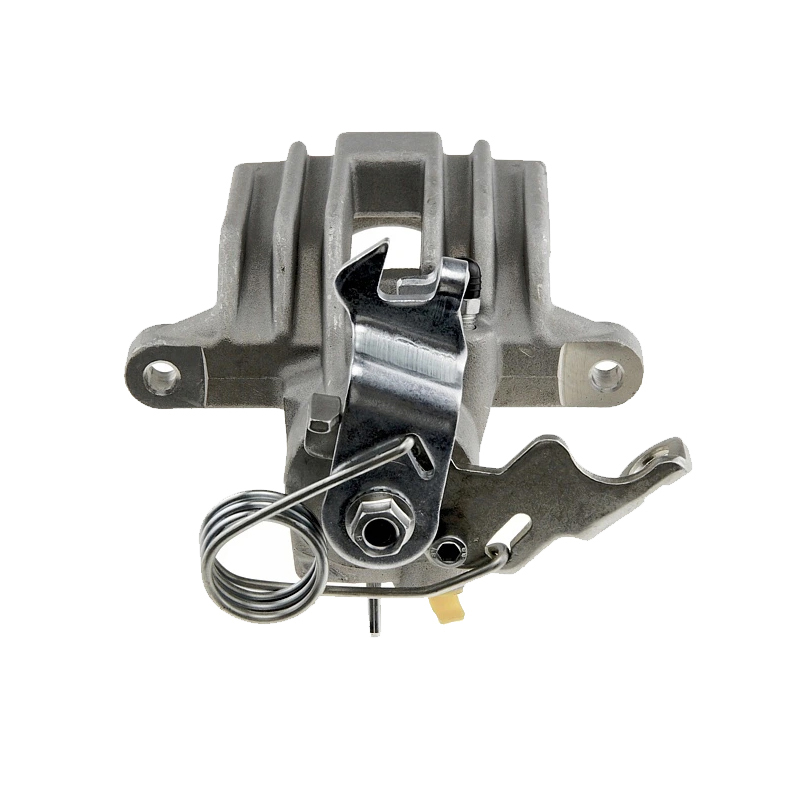

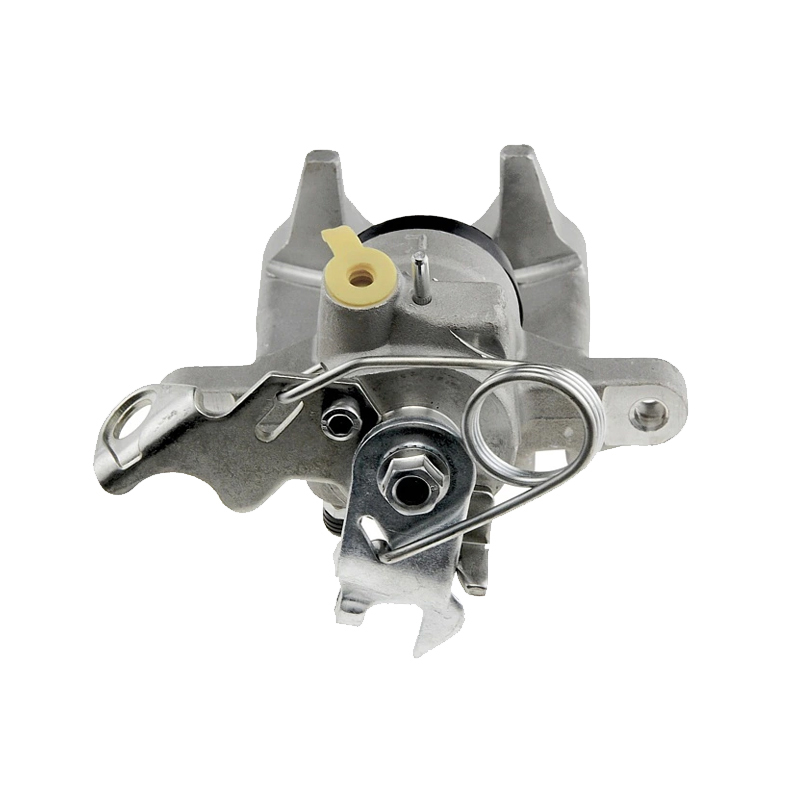

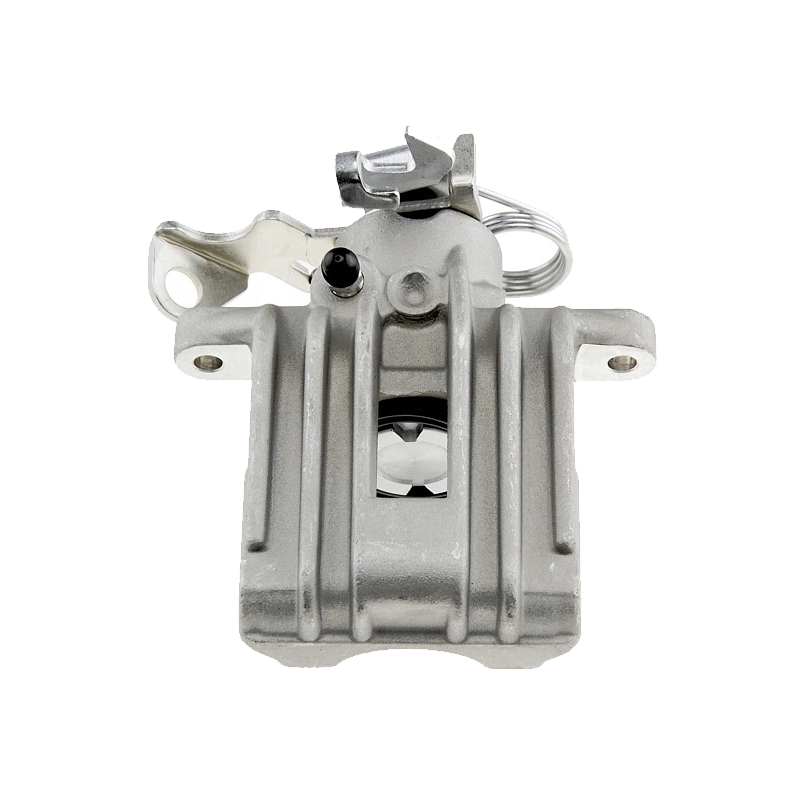

SKODA AUDI VW Brake Caliper 521241 8E0615423

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 10

For Brake Disc Diameter [mm] 245

Piston Diameter [mm] 38

OE Number 8E0615423


Product Detail

Company Profile

Product Tags

WENZHOU BIT AUTOMOBILE PARTS CO., LTD

Address

No.2 Building of Jiujie zone, Kunyang Town,Pingyang County, Wenzhou City, Zhejiang

Phone

+86 18857856585
+86 15088970715

Hours

Monday-Sunday: 9am to 12pm

Product Description

Brake Caliper

The brake caliper plays a central role in a disc-brake system and has two functions. First, it acts either as a bracket to support the brake pads on either side of the rotor or to support the caliper bracket itself — there are other designs, but these are the two most common. Second, it uses pistons to convert pressure exerted on the brake fluid by the master cylinder into friction on the rotor.

Reference No.

A.B.S. 521241
BUDWEG CALIPER 342870
TRW BHN182E/BHN182
ATE 24.3384-1731.7
BOSCH 0986472830
Brake ENGINEERING CA1987

Part List

REPAIR KIT

D4846C

PISTON

233815

REPAIR KIT

203843

GUIDE SLEEVE KIT

169135

REPAIR KIT, PARKING BRAKE HANDLE

2099375

SEAL, PISTON

183843

Compatible Applications

AUDI A4 (8D2, B5)      (1994/11 - 2001/09)
AUDI A6 (4B2, C5)      (1997/01 - 2005/01)
AUDI A6 Avant (4B5, C5)      (1997/11 - 2005/01)
AUDI A4 Avant (8D5, B5)      (1994/11 - 2001/09)
VW PASSAT Saloon (3B2)      (1996/08 - 2001/12)
VW PASSAT Variant (3B5)      (1997/05 - 2001/12)
VW PASSAT Saloon (3B3)      (2000/11 - 2005/05)
VW PASSAT Variant (3B6)      (2000/10 - 2005/08)
SKODA SUPERB (3U4)      (2001/12 - 2008/03)

What You Can Get from Our Factory

BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.

We have complete parts for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

By the way, we also have wide range catalogs for European, American, Japanese and Korean cars. Such as Audi, VW, BMW, Dodge, Chevy, Toyota, honda, KIA, Hyundai and so on. Find something what you want in our company.

微信图片_20211030153016

What is Our Production

We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.

微信图片_20211030165742

How disc brakes work

When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

brake-caliper3

Certificate

Quality and value is a common goal we share as a company. We are committed to face any challenges and see this as an opportunity to offer more novel solutions.

This led to many firsts in automotive innovations, as well as many design patents based on the futuristic approach. As a manufacturer of brake calipers, you can rely on us to bring a revolutionary brake caliper product line. With the following advantages, you can be confident that you are getting the best and finest service in the market. In order to assure you our quality, we approved the IATF 16949 Certificate in 2016.
