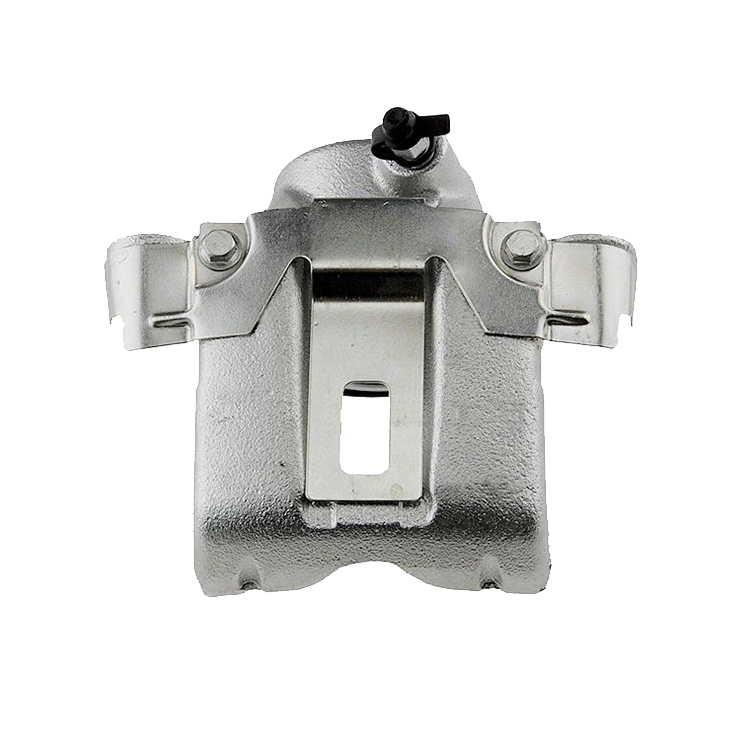

TOYOTA Brake Caliper 4775060110 4775060040 4775060070
Brake Caliper
The brake caliper plays a central role in a disc-brake system and has two functions. First, it acts either as a bracket to support the brake pads on either side of the rotor or to support the caliper bracket itself — there are other designs, but these are the two most common. Second, it uses pistons to convert pressure exerted on the brake fluid by the master cylinder into friction on the rotor.
Reference No.
| A.B.S. | 721231 |
| BUDWEG CALIPER | 342698 |
| TRW | BHV542E |
| ATE | 24338416037 |
| Brake ENGINEERING | CA1615 |
Part List
| REPAIR KIT |
D41376C |
| PISTON |
234837 |
| REPAIR KIT |
204868 |
| SEAL, PISTON |
184868 |
Compatible Applications
| TOYOTA LAND CRUISER (_J8_) (1990/01 – 1998/02) |
| TOYOTA LAND CRUISER – BUNDERA (PZJ7_, KZJ7_, HZJ7_, BJ7_, LJ7_, RJ7 (1984/03 – /) |
| TOYOTA LAND CRUISER PRADO (_J9_) (1995/04 – /) |
Dismantling:
1. Lift the car (use a vehicle ramp if available).
2. Remove the wheels.
3. Disconnect pad wear sensor wires if fitted.
4. Untie the brake hose and use a brake pedal depressor to hold the brake pedal down to shut off the system.
5. Dismantle the brake caliper.
6. Dismantle the brake disc and brake pads if you wish to replace them.
