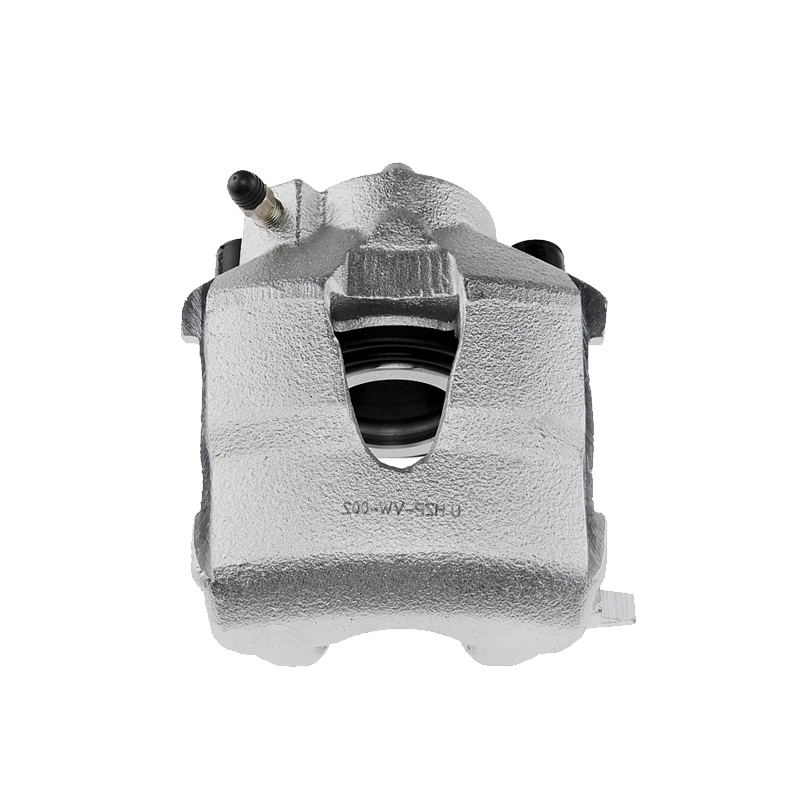

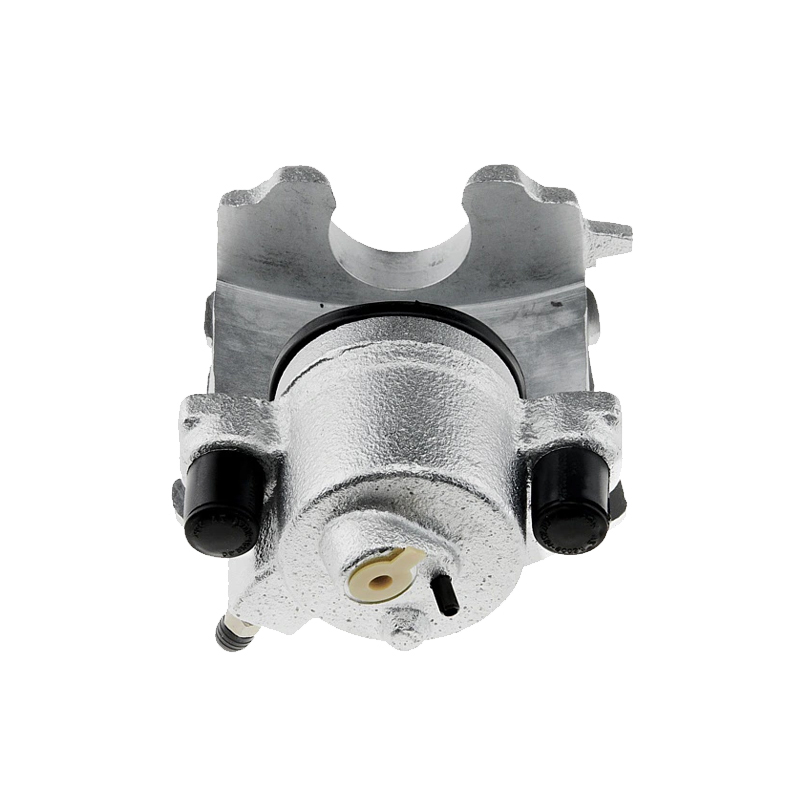

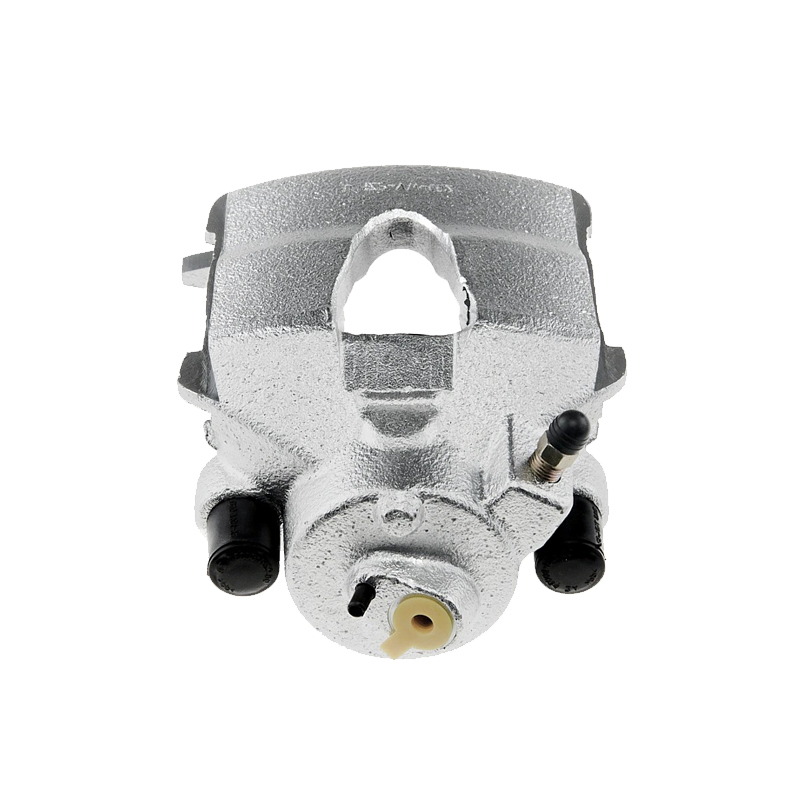

Brake Caliper 1J0615124 1K0615124A 1J0615124A 1K0615124D for Audi VW Seat Skoda

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 10

Piston Diameter [mm] 38

OE Number 1J0615124 1K0615124A 1J0615124A 1K0615124D


Product Detail

Company Profile

Product Tags

WENZHOU BIT AUTOMOBILE PARTS CO., LTD

Address

No.2 Building of Jiujie zone, Kunyang Town,Pingyang County, Wenzhou City, Zhejiang

Phone

+86 18857856585
+86 15088970715

Hours

Monday-Sunday: 9am to 12pm

Product Description

Reference No.

A.B.S. 421612
BUDWEG CALIPER 342671
TRW BHW348E
ATE 11.9541-9550.2
BOSCH 0986474071
Brake ENGINEERING CA1715R

Part List

REPAIR KIT

D4849C

PISTON

235461

REPAIR KIT

205414

GUIDE SLEEVE KIT

169200

SEAL, PISTON

185414

Compatible Applications

AUDI  A3 (8L1)      (1996/09 - 2003/05)
AUDI  A2 (8Z0)      (2000/02 - 2005/08)
AUDI  A3 (8P1)      (2003/05 - 2012/08)
AUDI  A3 Sportback (8PA)      (2004/09 - 2013/03)
AUDI  A3 Convertible (8P7)      (2008/04 - 2013/05)
AUDI  A1 (8X1, 8XF)      (2010/05 - /)
AUDI  A1 Sportback (8XA, 8XK)      (2011/09 - /)
VW GOLF IV (1J1)      (1997/08 - 2005/06)
VW GOLF Mk IV Est (1J5)      (1999/05 - 2006/06)
VW NEW BEETLE (9C1, 1C1)      (1998/01 - 2010/09)
VW JETTA IV (1J2)      (1998/10 - 2005/09)
VW BORA Est (1J6)      (1999/05 - 2005/05)
VW POLO (9N_)      (2001/10 - 2012/01)
VW NEW BEETLE Convertible (1Y7)      (2002/09 - 2010/10)
VW RABBIT V (1K1)      (2003/10 - 2009/02)
VW DERBY Saloon (9A4)      (2002/09 - /)
VW CADDY III Box (2KA, 2KH, 2CA, 2CH)      (2004/03 - /)
VW CADDY III Est (2KB, 2KJ, 2CB, 2CJ)      (2004/03 - /)
VW GOLF PLUS (5M1, 521)      (2005/01 - 2013/12)
VW FOX (5Z1, 5Z3)      (2003/10 - /)
VW VENTO III (1K2)      (2005/08 - 2010/10)
VW JETTA V Est (1K5)      (2007/06 - 2009/07)
VW GOLF VI (5K1)      (2008/10 - 2013/11)
VW POLO (6R, 6C)      (2009/06 - /)
VW GOLF VI Variant (AJ5)      (2009/07 - 2013/07)
VW JETTA VI IV (162, 163)      (2010/04 - /)
VW NOVO FUSCA (5C1)      (2011/04 - /)
VW UP      (2011/08 - /)
VW VENTO Saloon (60)      (2009/05 - /)
VW BEETLE Convertible (5C7)      (2011/12 - /)
SKODA OCTAVIA (1U2)      (1996/09 - 2010/12)
SKODA OCTAVIA Combi (1U5)      (1998/07 - 2010/12)
SKODA FABIA (6Y2)      (1999/08 - 2008/03)
SKODA FABIA Combi (6Y5)      (2000/04 - 2007/12)
SKODA FABIA Saloon (6Y3)      (1999/10 - 2007/12)
SKODA FABIA Praktik      (2001/07 - 2007/12)
SKODA OCTAVIA (1Z3)      (2004/02 - 2013/06)
SKODA OCTAVIA Combi (1Z5)      (2004/02 - 2013/06)
SKODA PRAKTIK (5J)      (2006/03 - /)
SKODA FABIA      (2006/12 - 2014/12)
SKODA FABIA Combi      (2007/10 - 2014/12)
SKODA ROOMSTER Praktik (5J)      (2007/03 - /)
SKODA YETI (5L)      (2009/05 - /)
SKODA CITIGO      (2011/10 - /)
SKODA RAPID (NH3)      (2012/07 - /)
SKODA RAPID Spaceback (NH1)      (2012/07 - /)
SEAT TOLEDO Mk II (1M2)      (1998/10 - 2006/05)
SEAT LEON (1M1)      (1999/11 - 2006/06)
SEAT IBIZA Mk IV (6L1)      (2002/02 - 2009/11)
SEAT CORDOBA Saloon (6L2)      (2002/09 - 2009/11)
SEAT ALTEA (5P1)      (2004/03 - /)
SEAT TOLEDO III (5P2)      (2004/04 - 2009/05)
SEAT LEON (1P1)      (2005/05 - 2012/12)
SEAT ALTEA XL (5P5, 5P8)      (2006/10 - /)
SEAT IBIZA V (6J5, 6P5)      (2008/03 - /)
SEAT IBIZA V SPORTCOUPE (6J1, 6P1)      (2008/07 - /)
SEAT IBIZA V ST (6J8, 6P8)      (2010/03 - /)
SEAT Mii (KF1_)      (2011/10 - /)
SEAT TOLEDO IV (KG3)      (2012/07 - /)

Assembling:

1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.

What You Can Get from Our Factory

BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.

We have complete parts for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

By the way, we also have wide range catalogs for European, American, Japanese and Korean cars. Such as Audi, VW, BMW, Dodge, Chevy, Toyota, honda, KIA, Hyundai and so on. Find something what you want in our company.

微信图片_20211030153016

What is Our Production

We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.

微信图片_20211030165742

How disc brakes work

When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

brake-caliper3

Certificate

Quality and value is a common goal we share as a company. We are committed to face any challenges and see this as an opportunity to offer more novel solutions.

This led to many firsts in automotive innovations, as well as many design patents based on the futuristic approach. As a manufacturer of brake calipers, you can rely on us to bring a revolutionary brake caliper product line. With the following advantages, you can be confident that you are getting the best and finest service in the market. In order to assure you our quality, we approved the IATF 16949 Certificate in 2016.

sred
