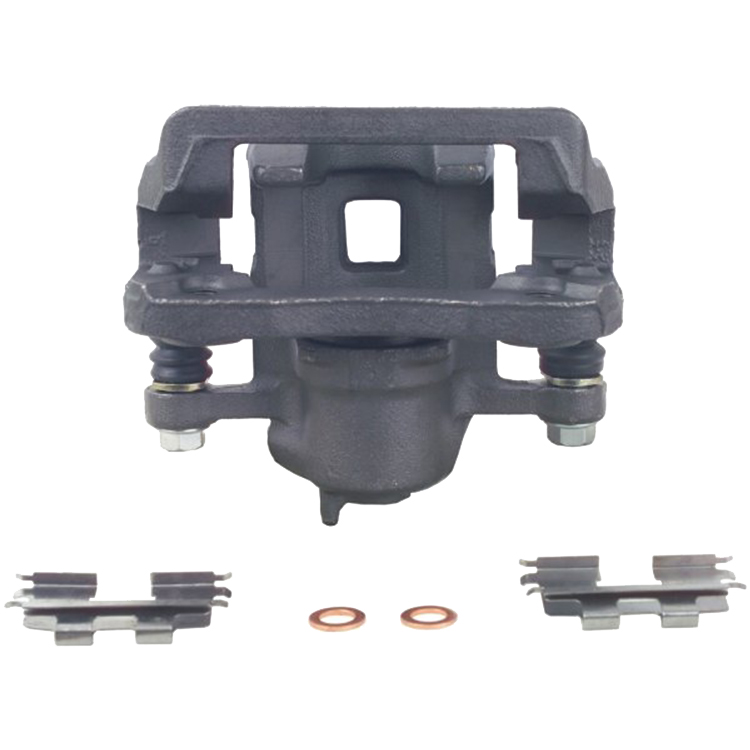

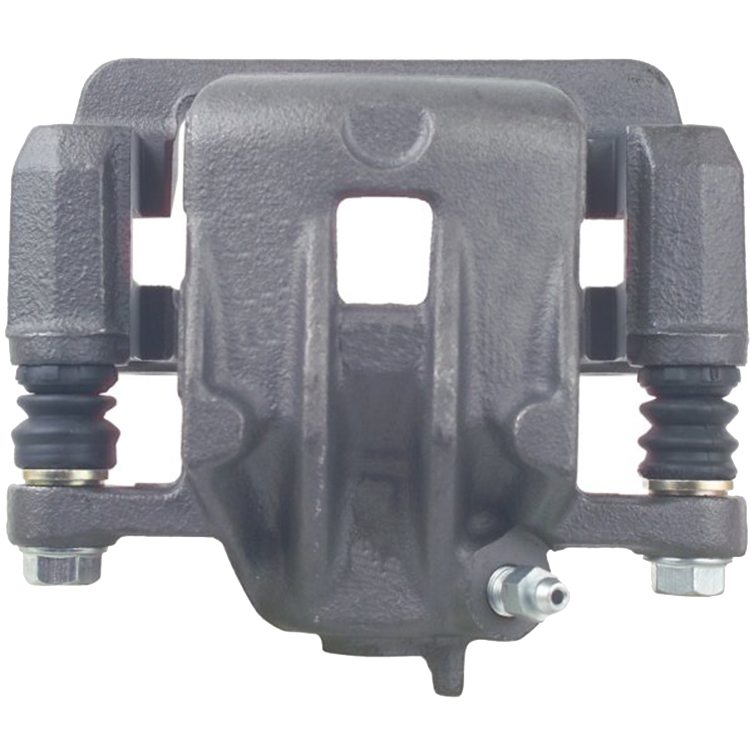

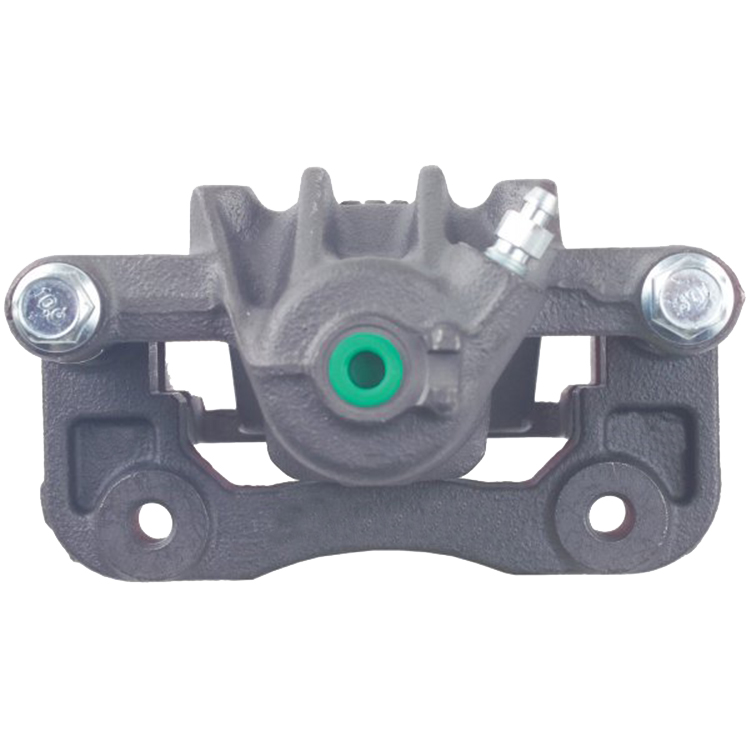

Brake Caliper 19B3101 581902DA00 for Hyundai Kia
Interchanges No.
18FR2433 AC-DELCO |
99-00830B BBB INDUSTRIES |
077-1840S BECK/ARNLEY |
077-1979S BECK/ARNLEY |
19-B3101 |
19B3101 |
242-73652A NAPA / RAYLOC |
10-02246-1 PROMECANIX |
FRC11766 RAYBESTOS |
FRC12310 RAYBESTOS |
CRB140112 WAGNER |
99-00830B WILSON |
SC2414 DNS |
106294S UCX |
Compatible Applications
Hyundai Sonata 2006-2008 Rear Left |
Hyundai Tucson 2005-2009 Rear Right |
Kia Magentis 2006-2010 Rear Left |
Kia Optima 2006-2010 Rear Left |
Kia Sportage 2005-2010 Rear Right |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
