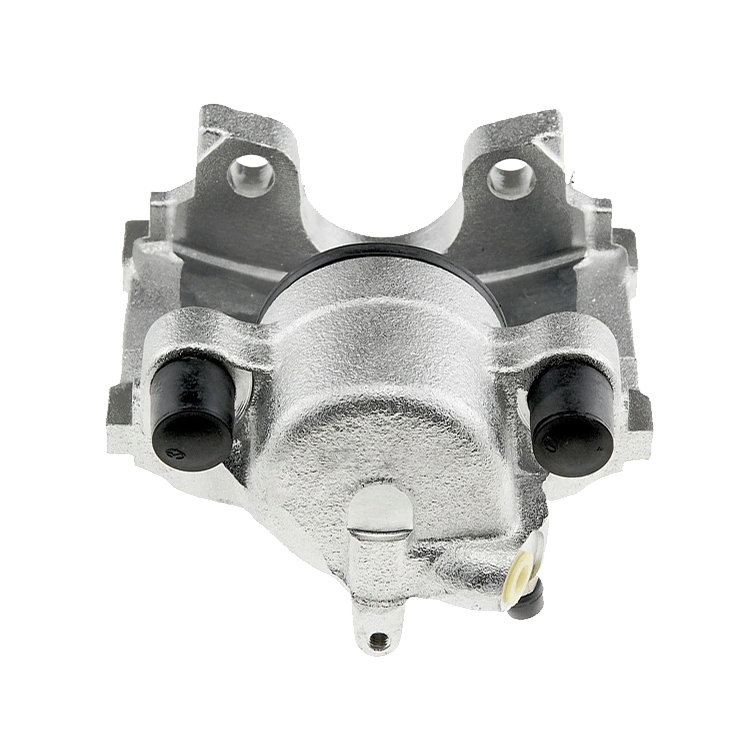

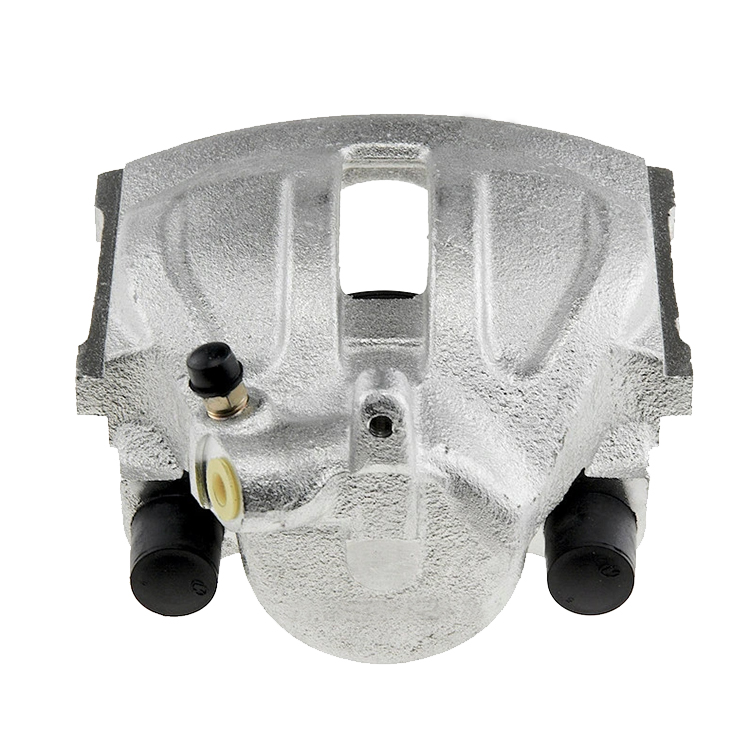

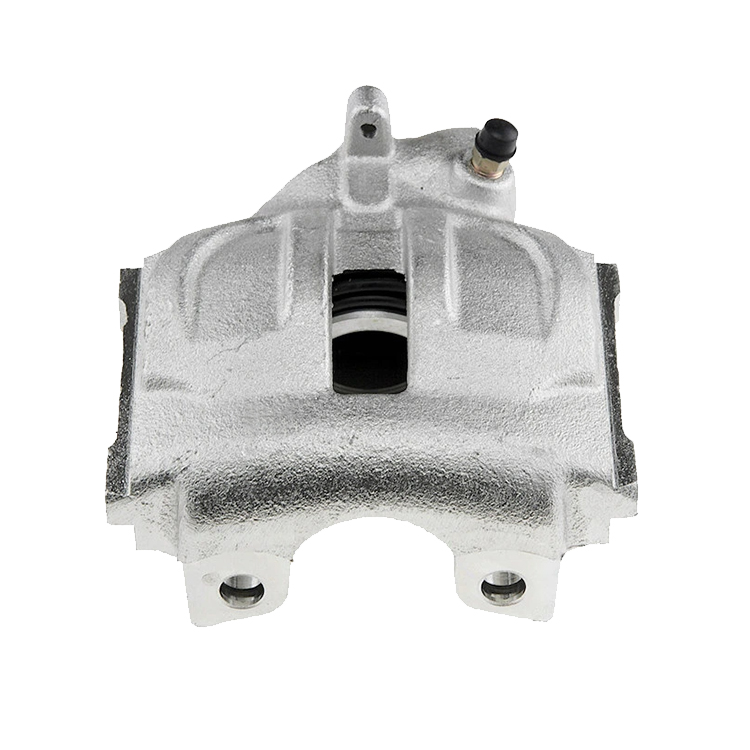

VW Mercedes-Benz Brake Caliper 9024200502 05135897AA 0024201183 2D0615423
Reference No.
| A.B.S. | 422631 |
| BUDWEG CALIPER | 342846 |
| TRW | BHS314E |
| ATE | 11.3521-8501.2 |
| BOSCH | 0986473353 |
| Brake ENGINEERING | CA1846 |
Part List
| REPAIR KIT |
D41613C/D42297C |
| PISTON |
235204 |
| REPAIR KIT |
205204 |
| SEAL, PISTON |
185204 |
Compatible Applications
| VW LT Mk II Bus (2DB, 2DE, 2DK) (1996/04 – 2006/07) |
| VW LT Mk II Box (2DA, 2DD, 2DH) (1996/04 – 2006/07) |
| VW LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) (1996/04 – 2006/07) |
| Mercedes-Benz SPRINTER 3-t Bus (903) (1995/01 – 2006/05) |
| Mercedes-Benz SPRINTER 3-t Platform/Chassis (903) (1995/01 – 2006/05) |
| Mercedes-Benz SPRINTER 3-t Box (903) (1995/01 – 2006/05) |
| Mercedes-Benz SPRINTER CLASSIC 4,6-t Bus (909) (2013/09 – /) |
| Mercedes-Benz SPRINTER CLASSIC 3,5-t Box (909) (2013/09 – /) |
WHY CHOOSE BIT?
We are not the cheapest choice in the market but is the professional supplier.
Quality comes at a price. And because we do not compromise, we do not aim to be the cheapest in the market. You can take pleasure from that. Because if you want to sell quality products, using our calipers will ensure that you achieve a greater turnover and greater earnings per unit. At the same time, you have more satisfied customers.
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
