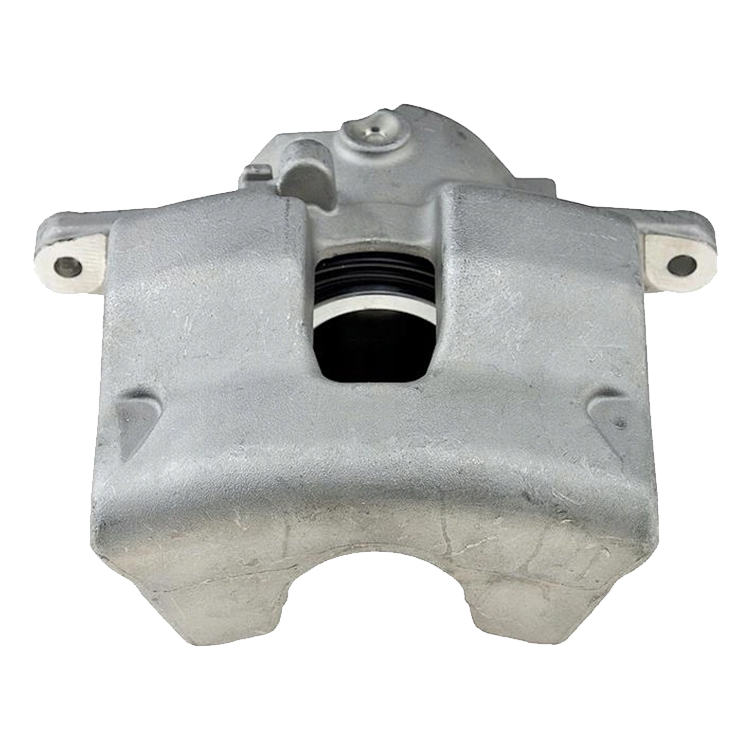

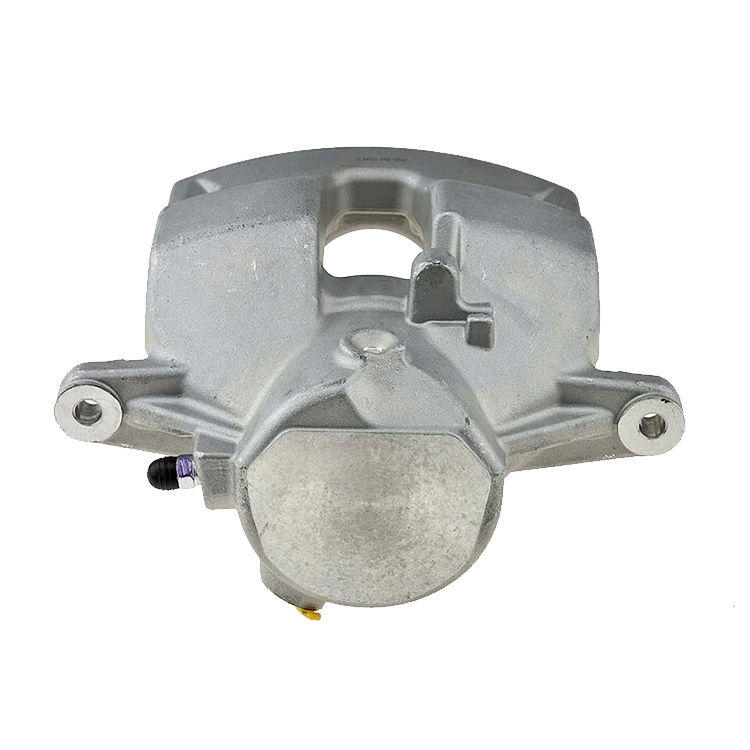

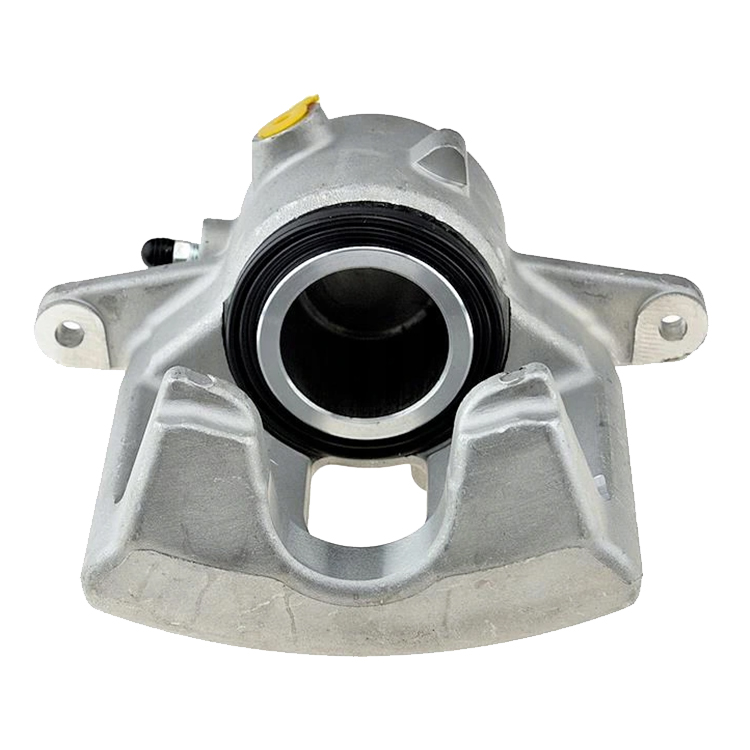

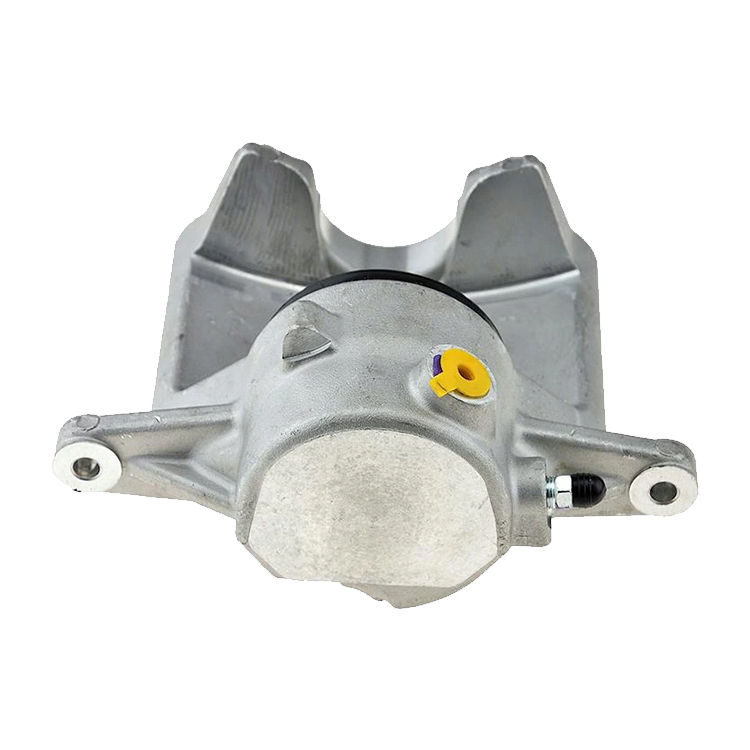

Mercedes-Benz Brake Caliper 2044210481 2044210881 2044212481 2044212681 A2044210481 A2044210881 A2044212481 A2044212681 344445
Reference No.
BREMBO F 50 313 |
BUDWEG CALIPER 344445 |
DELCO REMY DC84445 |
DRI 3226020 |
ELSTOCK 83-2206 |
FTE RX609862A0 |
HELLA PAGID 8AC 355 393-641 |
NK 2133272 |
sbs 13012133272 |
Part List
206050 (REPAIR KIT) |
236053 (PISTON) |
186050 (SEAL, PISTON) |
169118 (GUIDE SLEEVE KIT) |
189967 (GUIDE SLEEVE KIT) |
Compatible Applications
Mercedes-Benz C-CLASS Saloon (W204) (2007/01 – 2014/01) |
Mercedes-Benz C-CLASS T-Model (S204) (2007/08 – /) |
Mercedes-Benz E-CLASS (W212) (2009/01 – /) |
Mercedes-Benz E-CLASS Coupe (C207) (2009/01 – /) |
Mercedes-Benz E-CLASS Est (S212) (2009/08 – /) |
Mercedes-Benz E-CLASS Convertible (A207) (2010/01 – /) |
Mercedes-Benz SLK (R172) (2011/02 – /) |
Mercedes-Benz C-CLASS Coupe (C204) (2011/06 – /) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
