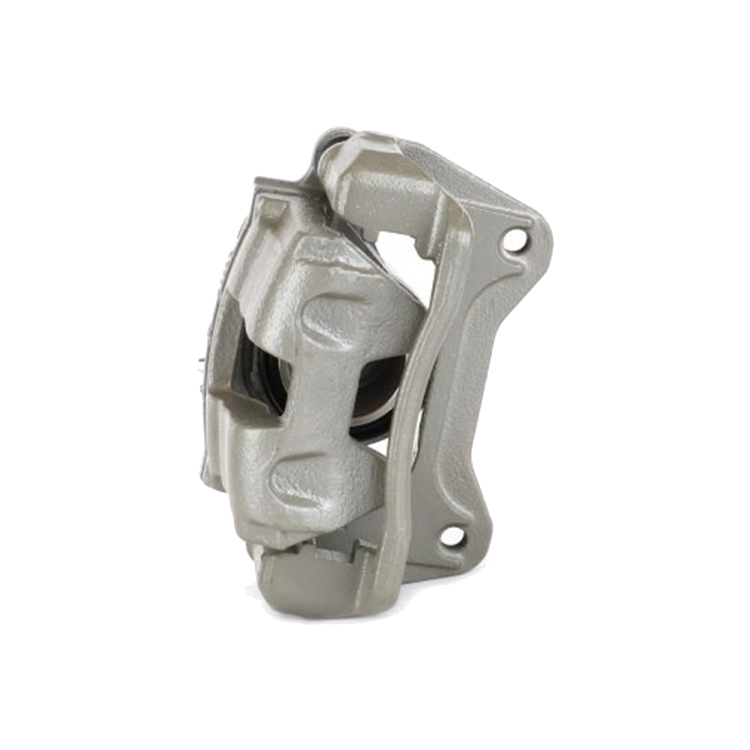

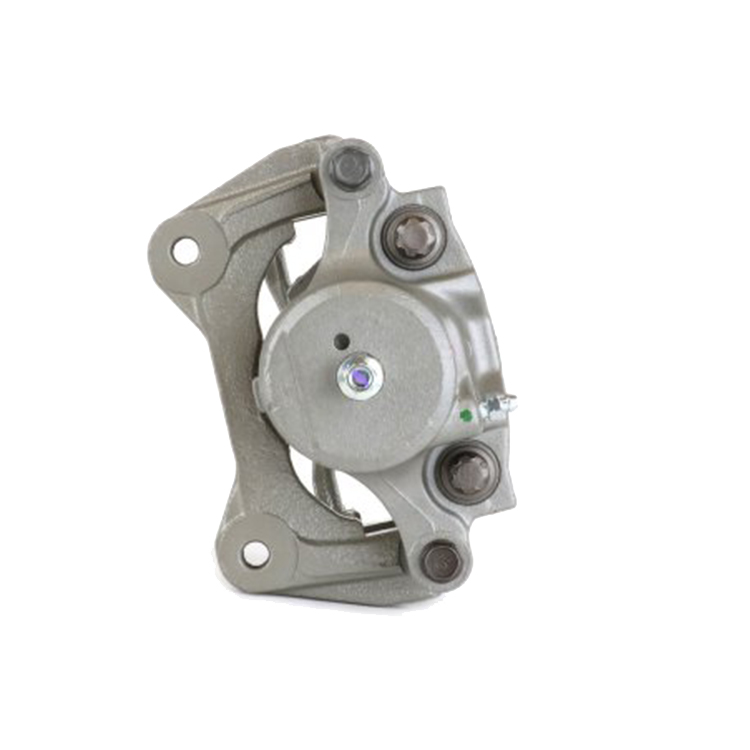

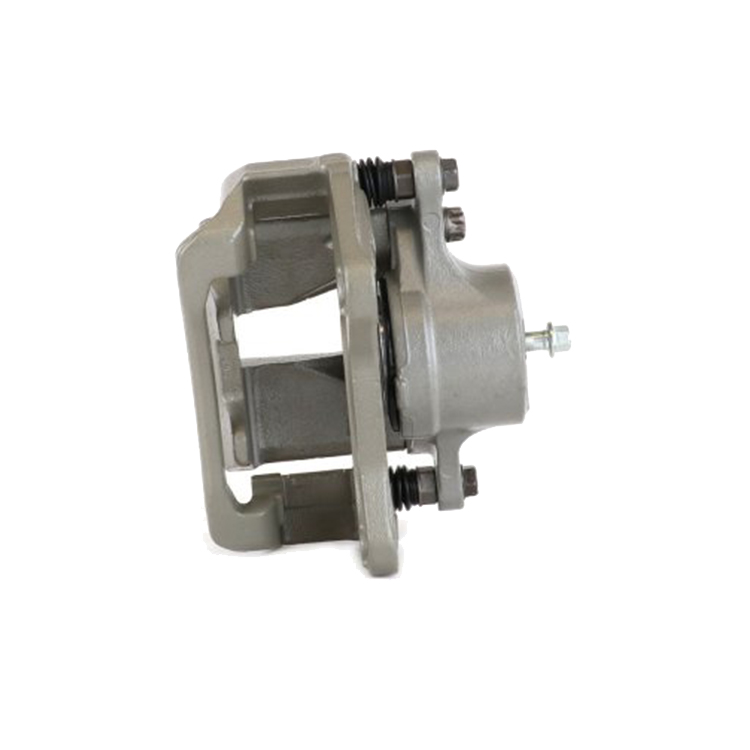

Brake Caliper 58180-3QA50 58180-4RA00 19B6461S for Hyundai Sonata Kia Optima
Interchanges No.
| ER1380KB ABSCO |
| 18FR12254 AC-DELCO |
| 18FR12782 AC-DELCO |
| SLB20379 AUTOLINE |
| 99-00853B BBB INDUSTRIES |
| 19-B6461 |
| 19-B6461S |
| 19B6461S |
| 10-03645-1 PROMECANIX |
| FRC12254 RAYBESTOS |
| 99-00853B WILSON |
| SC2473 DNS |
Compatible Applications
| Hyundai Sonata 2011-2015 Front Left |
| Kia Optima 2011-2016 Front Left |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
