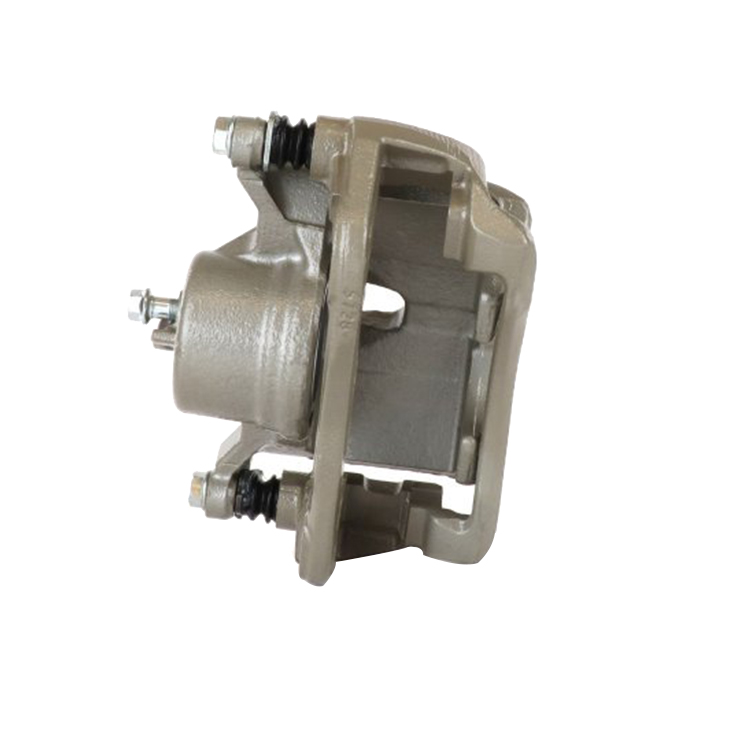

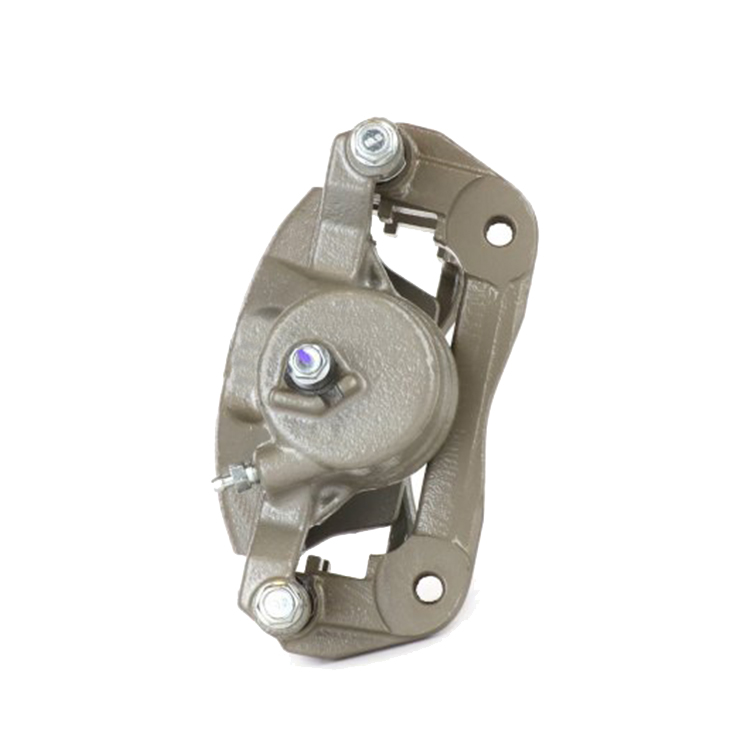

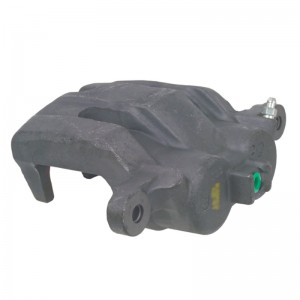

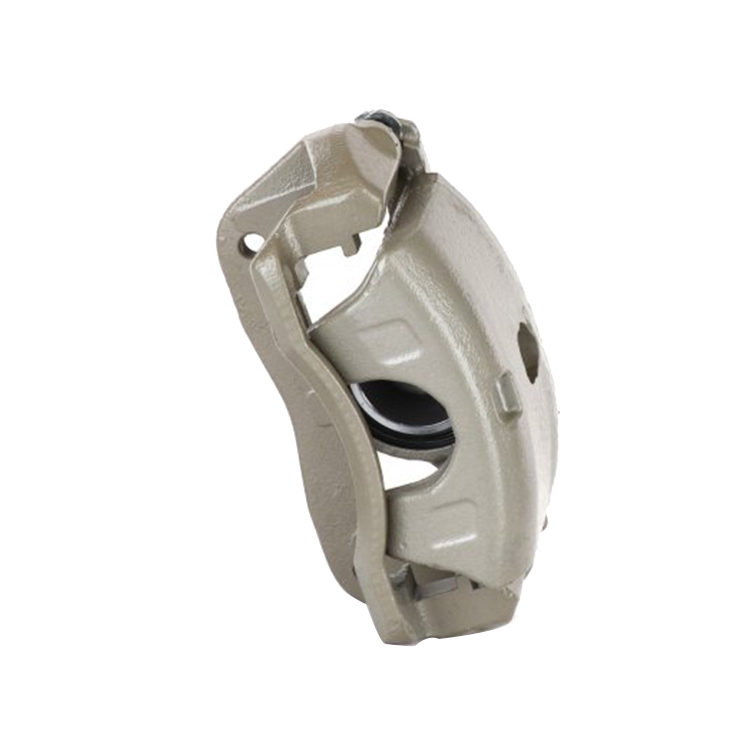

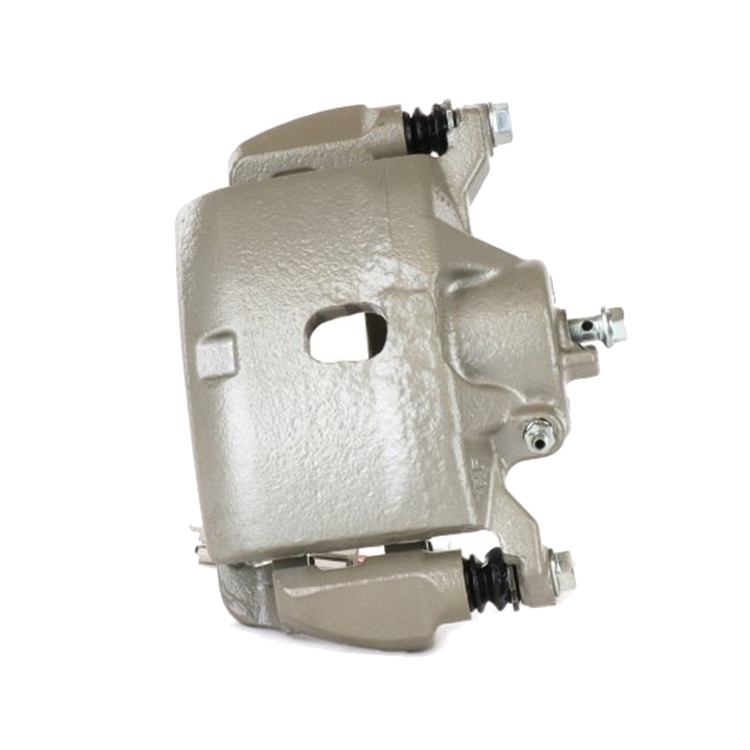

Brake Caliper 45019TA0A00 45019TA5A00 45019SDAA01 45019SDAA02 45019SZW000 45019T2FA00 19B2660 for Acura Honda

Bleeder Port Size:  M10x1.0

Product Packing Weight:  10.8 lbs

Piston Size (OD) (mm) : 57.023

Piston Size (OD) (in): 2.245

Brake Caliper Finish: Oil Emulsion

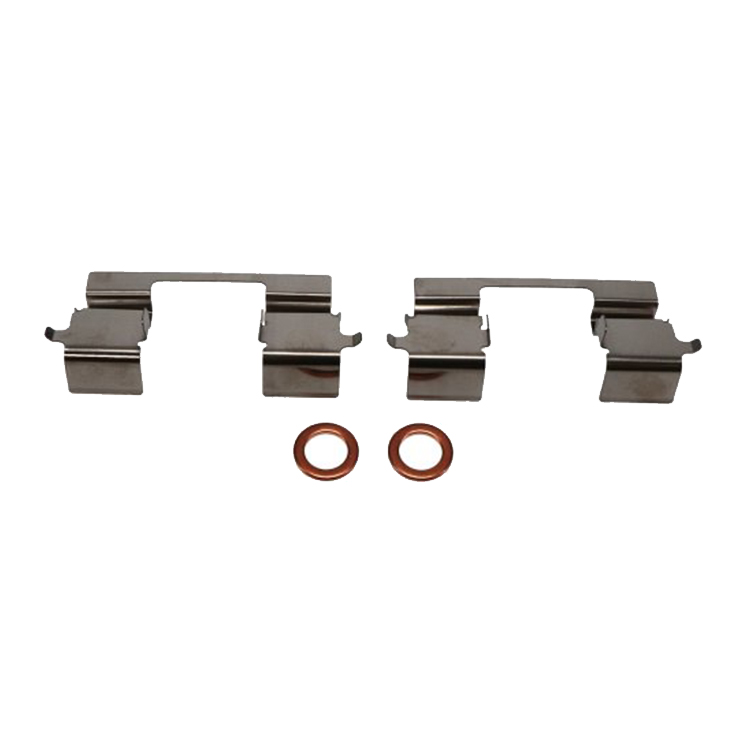

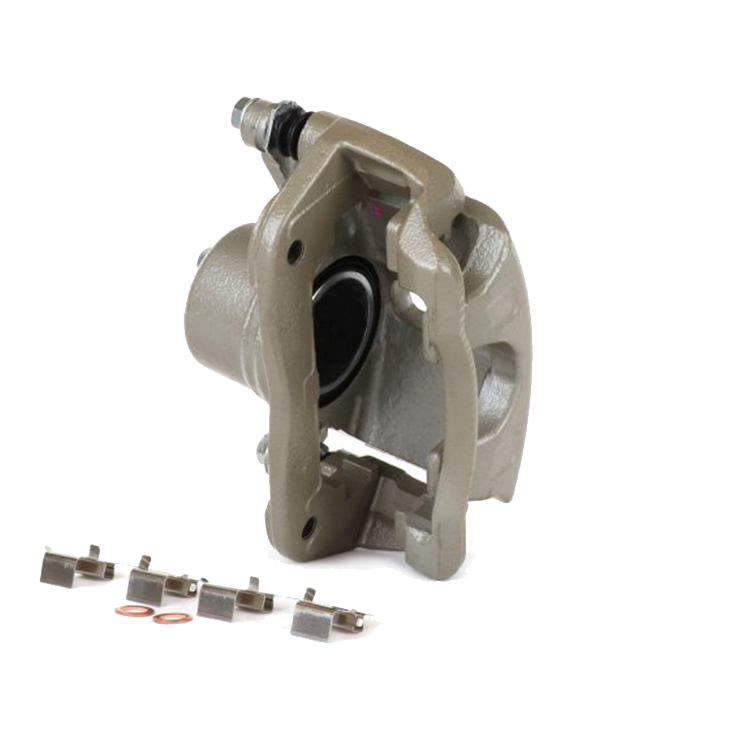

Package Contents: Caliper; Bracket; Hardware Kit

Piston Material: Steel

OE Number: 45019-SDAA01 45019TA0A00 45019TA5A00

45019SDAA01 45019SDAA02 45019SZW000 45019T2FA00


Product Detail

Company Profile

Product Tags

Interchanges No.

ER1694KB ABSCO
18FR2148 AC-DELCO
99-00943A BBB INDUSTRIES
077-1657S BECK/ARNLEY
19-B2660
19B2660
SLC9857 FENCO
45019-T2F-A00 HONDA / ACURA
10-05287-1 PROMECANIX
10-05310-1 PROMECANIX
FRC11425 RAYBESTOS
CRB134584 WAGNER
99-00943A WILSON
SC3817 DNS
105158S UCX



Compatible Applications

Acura ILX 2013-2015 Front Left
Honda Accord 2003-2017 Front Left
Honda Civic 2013-2020 Front Left
Honda CR-Z 2016 Front Left
Honda Fit 2013-2014 Front Left



Assembling:

1. Install the brake disc and brake pads if necessary.

2. Install the new brake caliper and tighten bolts to the specified torque.

3. Tighten the brake hose and then remove the pressure from the brake pedal

4. Make sure that all movable parts are lubricated and glide easily.

5. Re-connect the pad wear sensor wires if fitted.

6. Bleed the brake system by following the vehicle manufacturer’s guidelines.

7. Mount the wheels.

8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.

9. Check the brake fluid and replenish if necessary. Follow the operating instructions.

10. Check that there is no leakage of brake fluid.

11. Test the brakes on a brake test stand and carry out a test run.


  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.
