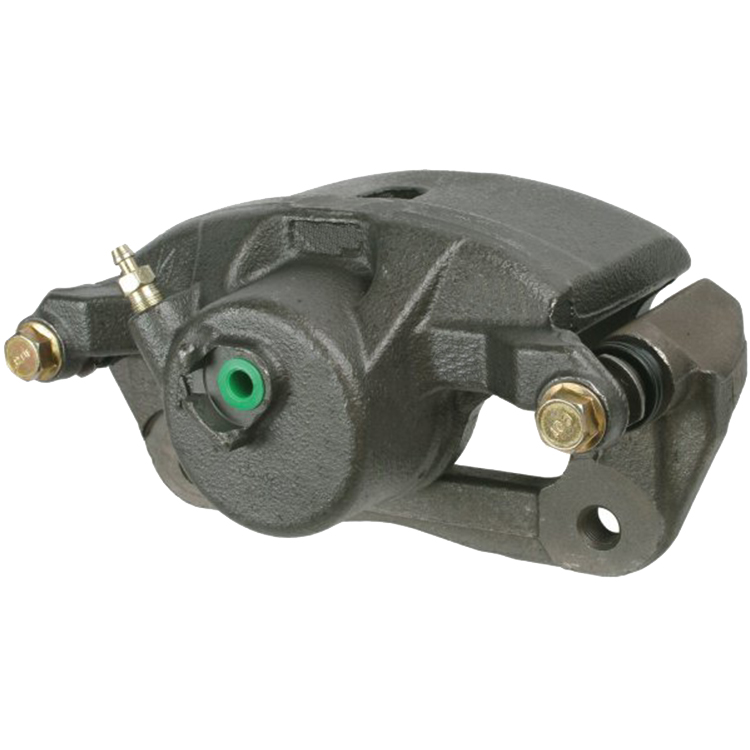

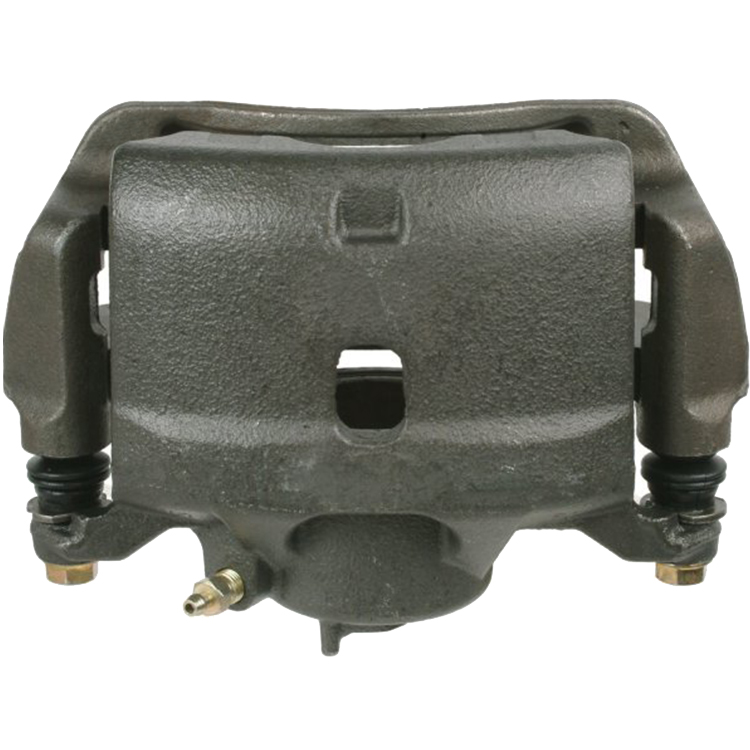

Honda Brake Caliper 45018S9AA01 45018S9AA02 45018SCVA01 45018SCVA02 45018SCVA04 19B2662

Bleeder Port Size:  M10x1.0

Product Packing Weight:  11 lbs

Piston Size (OD) (mm) : 57.023

Piston Size (OD) (in): 2.245

Brake Caliper Finish: Oil Emulsion

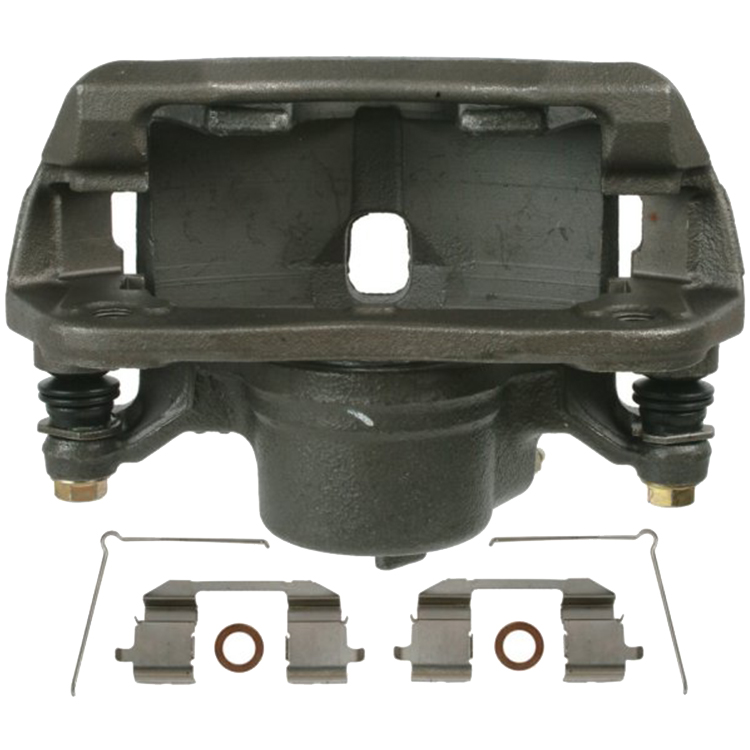

Package Contents: Caliper; Bracket; Hardware Kit

Piston Material: Steel

OE Number: 45018-S9A-A01 45018S9AA01 45018-S9A-A01

45018S9AA02 45018-S9A-A02 45018SCVA01 45018-SCV-A01

45018SCVA02 45018-SCV-A02 45018SCVA04 45018-SCV-A04


Product Detail

Company Profile

Product Tags

Interchanges No.

18FR2153 AC-DELCO
99-00946A BBB INDUSTRIES
19-B2662
19B2662
SLC9766 FENCO
242-73213A NAPA / RAYLOC
10-05288-1 PROMECANIX
FRC11517 RAYBESTOS
99-00946A WILSON
SC3802 DNS
105149S UCX



Compatible Applications

Honda CR-V 2002-2004 Front Right
Honda Element 2003-2011 Front Right



Assembling:

1. Install the brake disc and brake pads if necessary.

2. Install the new brake caliper and tighten bolts to the specified torque.

3. Tighten the brake hose and then remove the pressure from the brake pedal

4. Make sure that all movable parts are lubricated and glide easily.

5. Re-connect the pad wear sensor wires if fitted.

6. Bleed the brake system by following the vehicle manufacturer’s guidelines.

7. Mount the wheels.

8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.

9. Check the brake fluid and replenish if necessary. Follow the operating instructions.

10. Check that there is no leakage of brake fluid.

11. Test the brakes on a brake test stand and carry out a test run.
