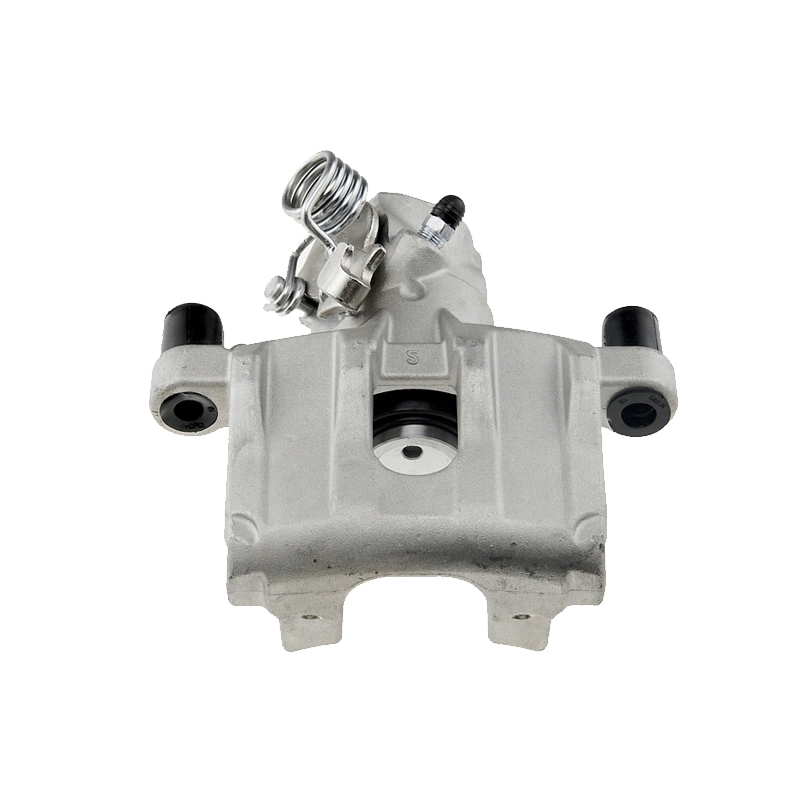

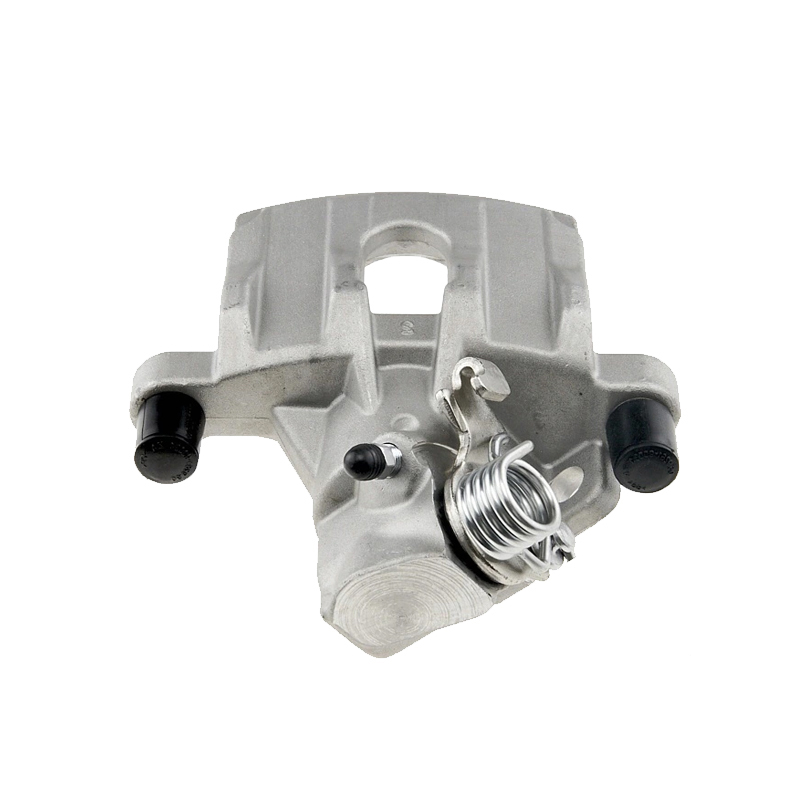

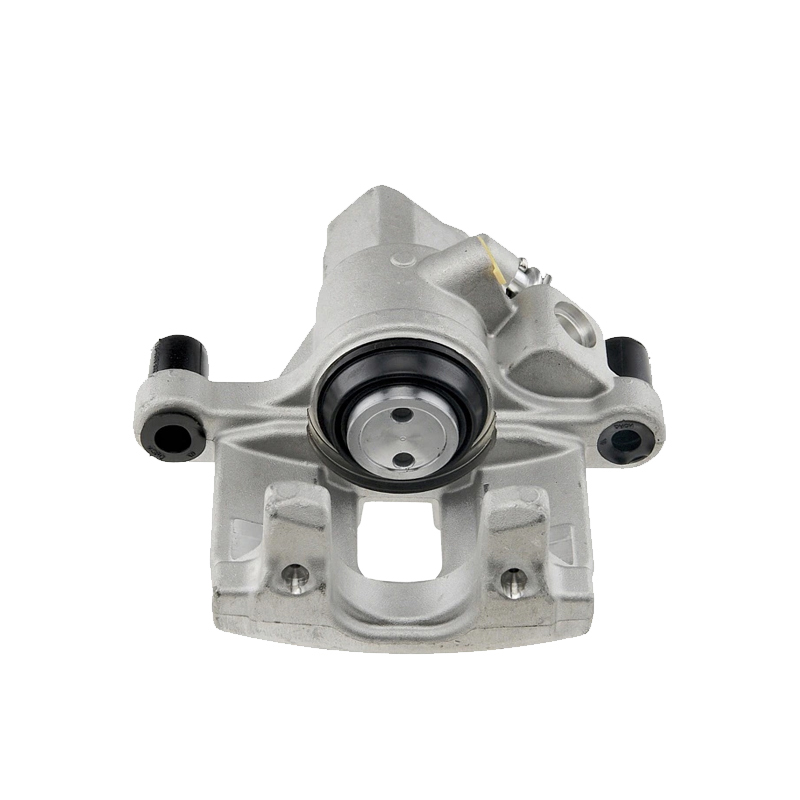

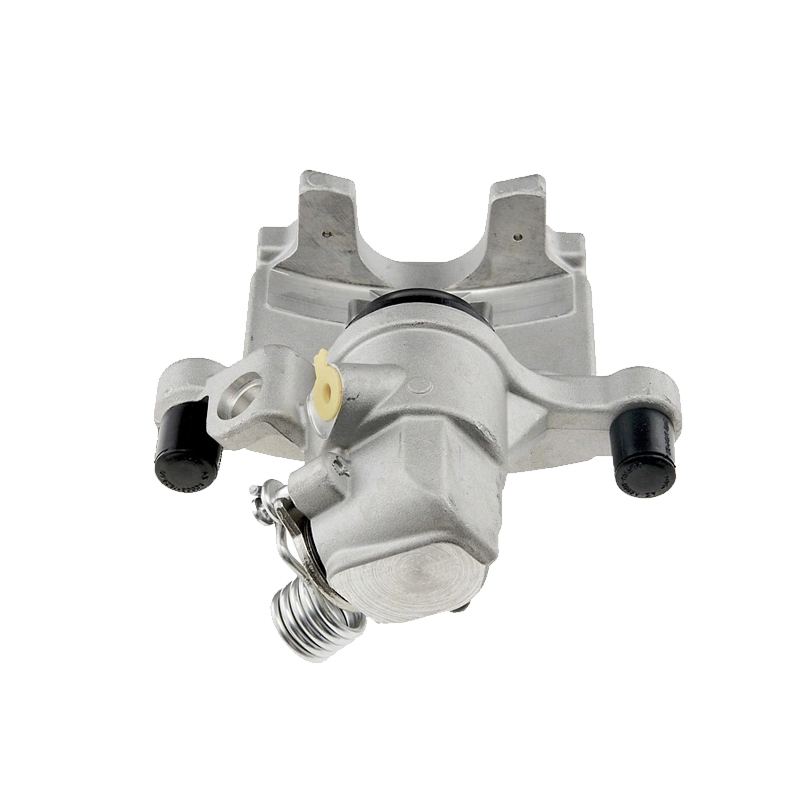

Brake Caliper 344414 343972 343396 3M512M089BA 1324305 8603940 for FORD MAZDA VOLVO

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 11

Piston Diameter [mm] 38

OE Number 1324305 1365653 3M512M089BA 3M512M089AB

3M512M089AA 1223706 CCY92671X BPYK-26-71X BPYK2661XC BPYK-26-71XA BPYK-26-71XB 8602911 8603735 36000902 36000900

8603940 5164904 8M512M088BC 1730926 8M512M088B1B 8M512M088B1C 1761267 1857716 1760070 1761755 8M512M088BB 8M512M088CB BPYK2661XC RM3M512M089BA


Product Detail

Company Profile

Product Tags

Reference No.

A.B.S. 430361
BUDWEG CALIPER 343396
TRW BHN709E/ JGT274S/ JGT274T/ JGT419S/ JGT419T
ATE 11.9387-7015.2
BOSCH 0986473173
Brake ENGINEERING CA2451

Part List

REPAIR KIT

D41614C

PISTON

233842

REPAIR KIT

203850

GUIDE SLEEVE KIT

169200

SEAL, PISTON

183850

Compatible Applications

FORD FOCUS C-MAX      (2003/10 – 2007/03)
FORD FOCUS II (DA_)      (2004/11 – /)
FORD FOCUS II Est (DA_)      (2004/11 – 2012/09)
FORD FOCUS II Saloon (DA_)      (2005/04 – /)
FORD FOCUS II Convertible      (2006/10 – /)
FORD C-MAX (DM2)      (2007/02 – /)
MAZDA 3 (BK)      (2003/10 – 2009/12)
MAZDA AXELA Saloon (BK)      (1999/09 – 2009/06)
VOLVO S40 II (MS)      (2004/01 – /)
VOLVO V50 (MW)      (2004/04 – /)
VOLVO C70 II Convertible      (2006/03 – /)
VOLVO C30      (2006/10 – 2012/12)

FAQS

1.What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Generally speaking, the minimum order quantity for regular products is 30pcs, and some products are 100pcs. Small trial orders are also acceptable.

What is the average lead time?
For samples, the lead time is about 7 days.
For mass production, the lead time is 25-35 days after receiving the deposit payment. The lead times become effective when we have received your deposit and your final approval for your products.


  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.
