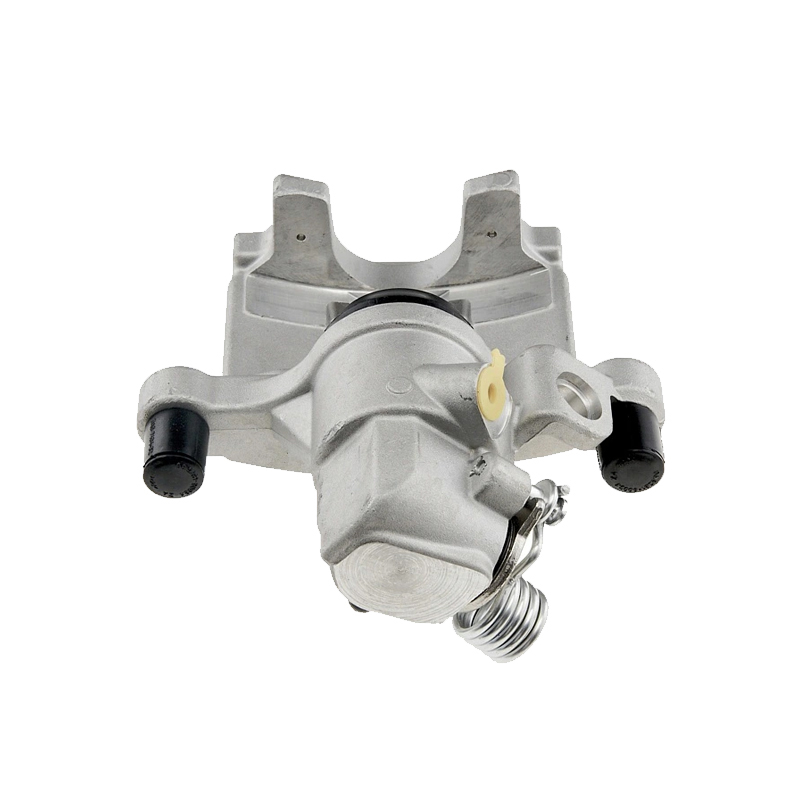

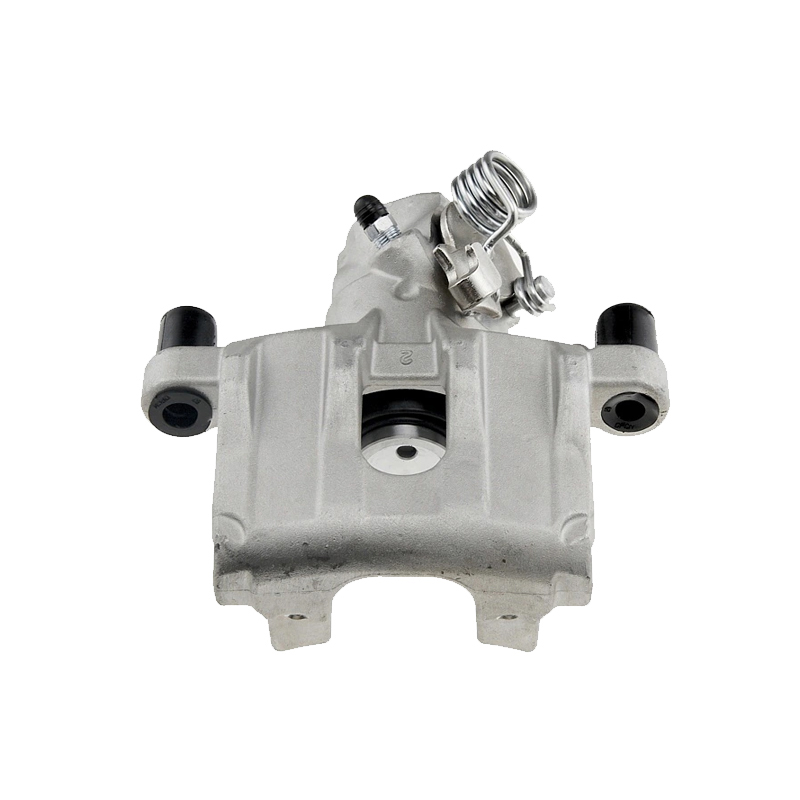

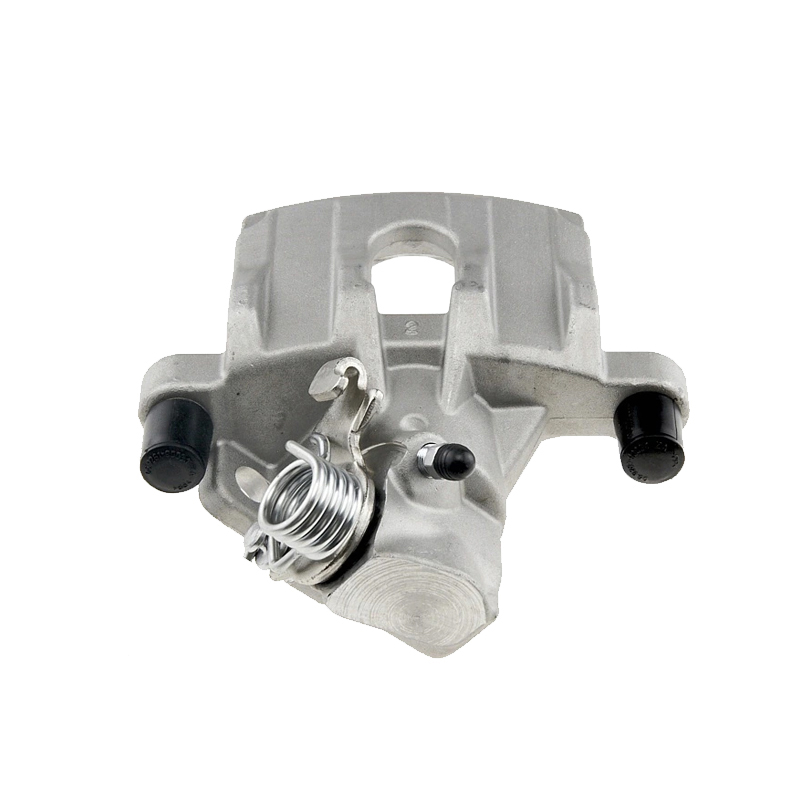

Brake Caliper 344415 343973 343397 3M512M088BA 1324304 8603941 for FORD MAZDA VOLVO

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 11

Piston Diameter [mm] 38

OE Number 1324304 1365648 3M512M088BA 1223704 3M512M088AA 3M512M088AB BPYK-26-61XB CCY92661X BPYK2671XC BPYK-26-61X BPYK-26-61XA 36000901 36000903 8603736 8602912 8603941 1730929 1857717 8M512M089CB 1760071 1761756 8M512M089BB 8M512M089BA 1511569 1761268 1927082 8M512M089B1C 8M512M089CA 8M512M089BC 8M512M089B1D BPYK2671XC


Product Detail

Company Profile

Product Tags

Reference No.

A.B.S. 430362
BUDWEG CALIPER 343397
TRW BHN710E/JGM360S/JGM360T/JGM627S/JGM627T/JGT277T
ATE 11.9387-7016.2
BOSCH 0986474173
Brake ENGINEERING CA2451R

Part List

REPAIR KIT

D41614C

PISTON

233842

REPAIR KIT

203850

GUIDE SLEEVE KIT

169200

SEAL, PISTON

183850

Compatible Applications

FORD FOCUS C-MAX      (2003/10 – 2007/03)
FORD FOCUS II (DA_)      (2004/11 – /)
FORD FOCUS II Est (DA_)      (2004/11 – 2012/09)
FORD FOCUS II Saloon (DA_)      (2005/04 – /)
FORD FOCUS II Convertible      (2006/10 – /)
FORD C-MAX (DM2)      (2007/02 – /)
MAZDA 3 (BK)      (2003/10 – 2009/12)
MAZDA AXELA Saloon (BK)      (1999/09 – 2009/06)
VOLVO S40 II (MS)      (2004/01 – /)
VOLVO V50 (MW)      (2004/04 – /)
VOLVO C70 II Convertible      (2006/03 – /)
VOLVO C30      (2006/10 – 2012/12)

FAQS

1.What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Generally speaking, the minimum order quantity for regular products is 30pcs, and some products are 100pcs. Small trial orders are also acceptable.

3.What are you terms of payment ?
Negotiable . Usually T/T30% as deposit, and 70% before delivery.We will show you the goods photos of the products and package before your pay the balance. Also can accept Paypal , Western Union. Credit card available.

4.What are your terms of delivery?
EXW, FOB, DDP, DDU


  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.
