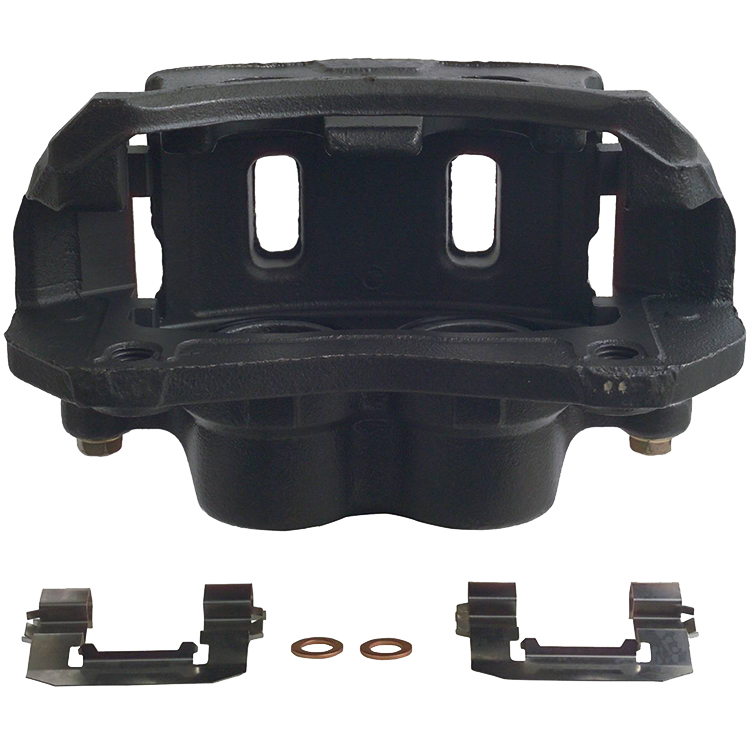

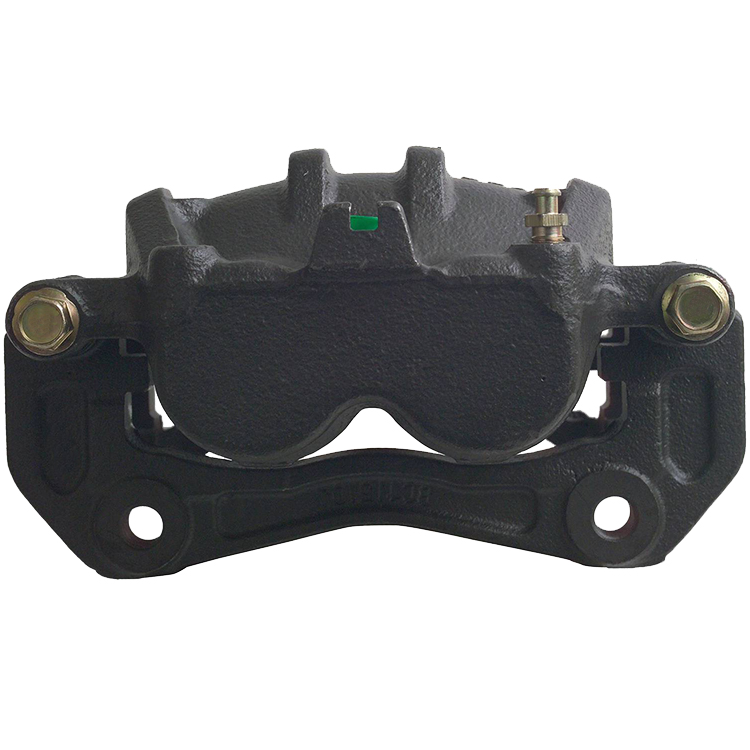

Brake Caliper 19150998 96626068 4808860 4814331 4808844 25964183 96625937 423652 343999 18B5057 for Chevrolet GMC Pontiac Saturn Suzuki

Bleeder Port Size:  M10x1.5

Product Packing Weight:  14.26 lbs

Piston Size (OD) (mm) : 44.958

Piston Size (OD) (in): 1.77

Brake Caliper Finish: Oil Emulsion

Package Contents: Caliper; Bracket; Hardware Kit

Piston Material: Steel

OE Number:19150998 96626068 4808860 4814331 4808844

25964183 96625937 423652 343999


Product Detail

Company Profile

Product Tags

Interchanges No.

18FR2559 AC-DELCO
18-B5057
18B5057
SLC867 FENCO
242-75608A NAPA / RAYLOC
11-26048-1 PROMECANIX
11-26048A-1 PROMECANIX
FRC11920 RAYBESTOS
SC1046 DNS
104401S UCX



Compatible Applications

Chevrolet Captiva Sport 2012-2015 Front Right
Chevrolet Equinox 2007-2009 Front Right
Chevrolet Equinox 2017 Front Right
GMC Terrain 2017 Front Right
Pontiac Torrent 2007-2009 Front Right
Saturn Vue 2008-2010 Front Right
Suzuki XL-7 2007-2009 Front Right



Calipers. Calipers. And more calipers.

We specialize in calipers. We re-manufacture already used calipers and manufacture new ones. In both cases, we supply calipers which match or exceed the quality of the originals. When choosing materials, we pursue achieving a durability which exceeds the normal standard. By way of example, we use brass bushings instead of a cheaper alternative. We use hard chrome-plated pistons.


  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.
