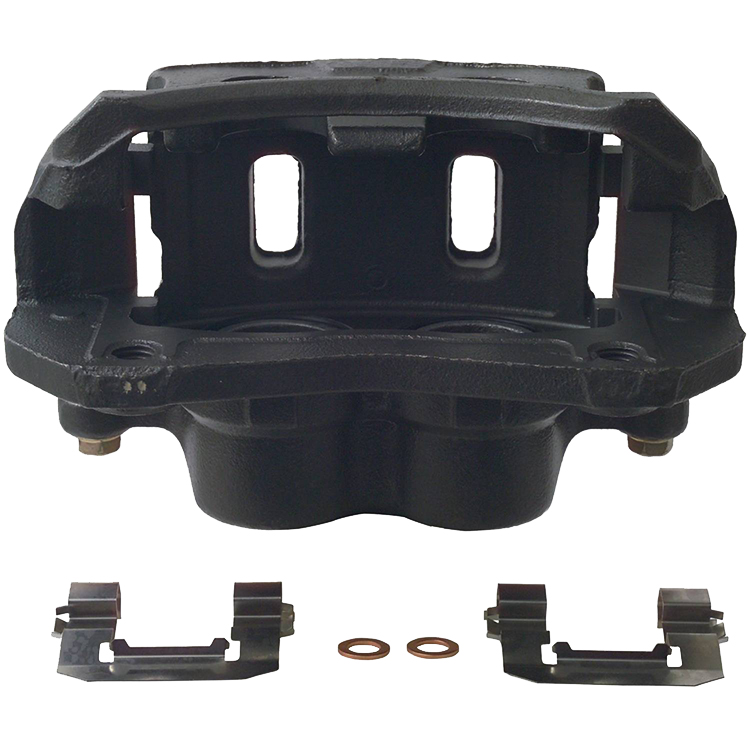

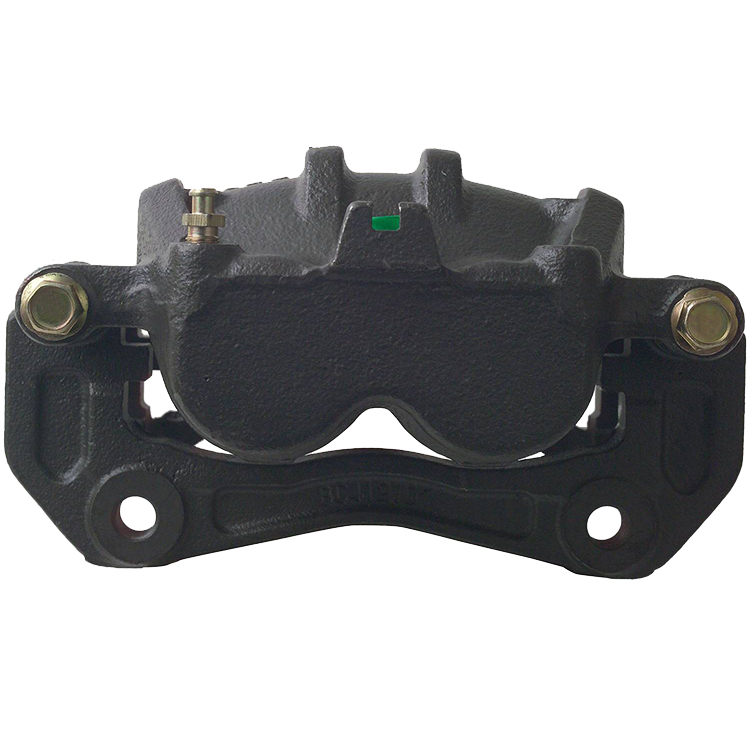

Brake Caliper 19150998 96626067 4808859 4808843 814330 96625936 25964182 423651 343998 18B5056 for Chevrolet GMC Pontiac Saturn Suzuki

Bleeder Port Size:  M10x1.5

Product Packing Weight:  14.26 lbs

Piston Size (OD) (mm) : 44.958

Piston Size (OD) (in): 1.77

Brake Caliper Finish: Oil Emulsion

Package Contents: Caliper; Bracket; Hardware Kit

Piston Material: Steel

OE Number:19150998 96626067 4808859 4808843

814330 96625936 25964182 423651 343998


Product Detail

Company Profile

Product Tags

Interchanges No.

18FR2558 AC-DELCO
18-B5056
18B5056
SLC866 FENCO
242-75607A NAPA / RAYLOC
11-26047-1 PROMECANIX
11-26047A-1 PROMECANIX
FRC11919 RAYBESTOS
SC1045 DNS
104400S UCX



Compatible Applications

Chevrolet Captiva Sport 2012-2015 Front Left
Chevrolet Equinox 2007-2009 Front Left
Chevrolet Equinox 2017 Front Left
GMC Terrain 2017 Front Left
Pontiac Torrent 2007-2009 Front Left
Saturn Vue 2008-2010 Front Left
Suzuki XL-7 2007-2009 Front Left



Features and Benefits

  • Pistons are durable, resistant to cracking or pitting and handle great loads.
  • Rubber seals are replaced with new high temperature EPDM rubber for extended life and optimum performance.
  • Mounting bracket is included where applicable for a hassle-free installation.
  • Calipers are treated with a special formulated rust inhibitor and kept in the original equipment finish.
  • New banjo bolts are included where applicable to ensure a perfect fit and quick installation.
  • New bleeder screws provide trouble-free bleeding and a positive seal.
  • New washers are included where applicable for a proper seal.
  • A plastic cap plug protects every brake port thread to ensure trouble-free installation.
  • New stainless steel hardware clips and new mounting pins are included where applicable.
  • As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
  • Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.
