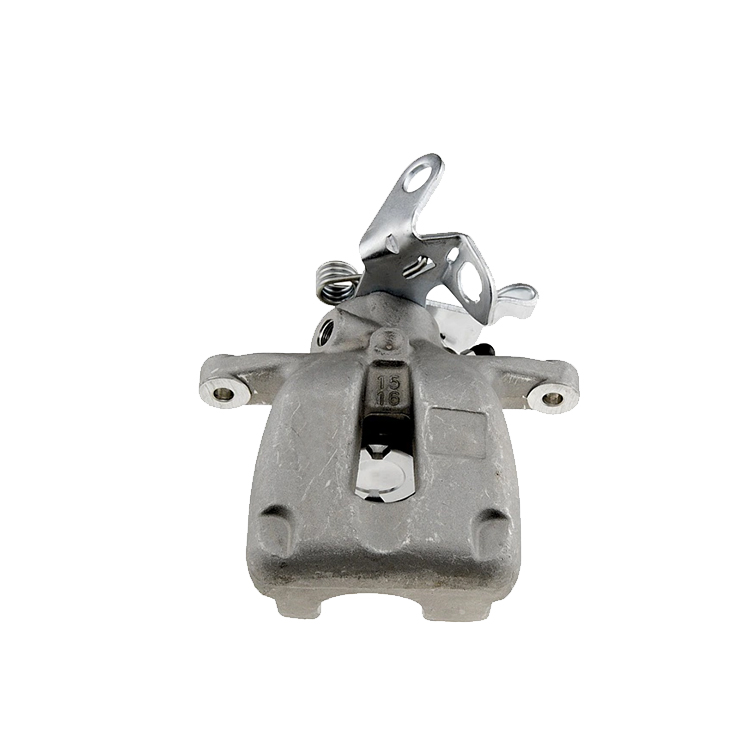

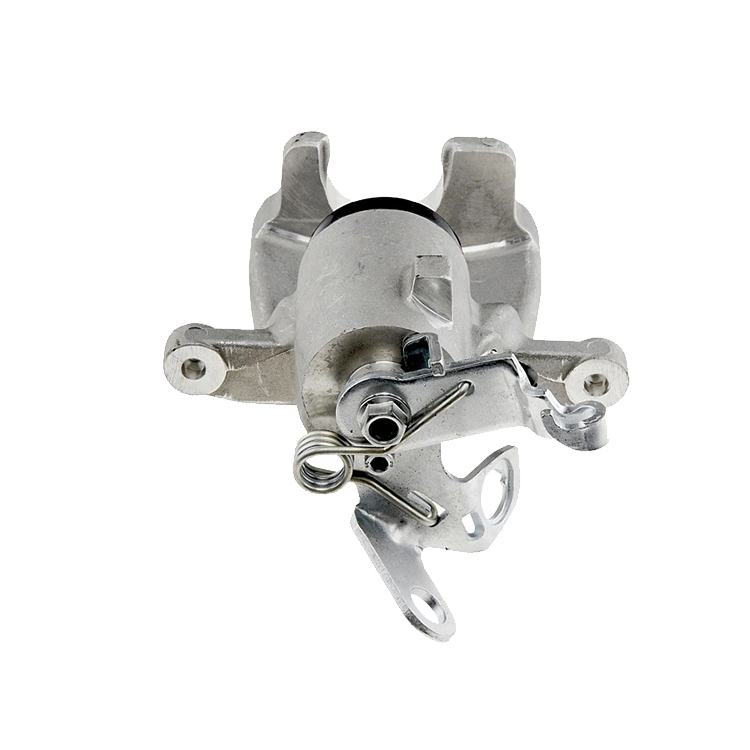

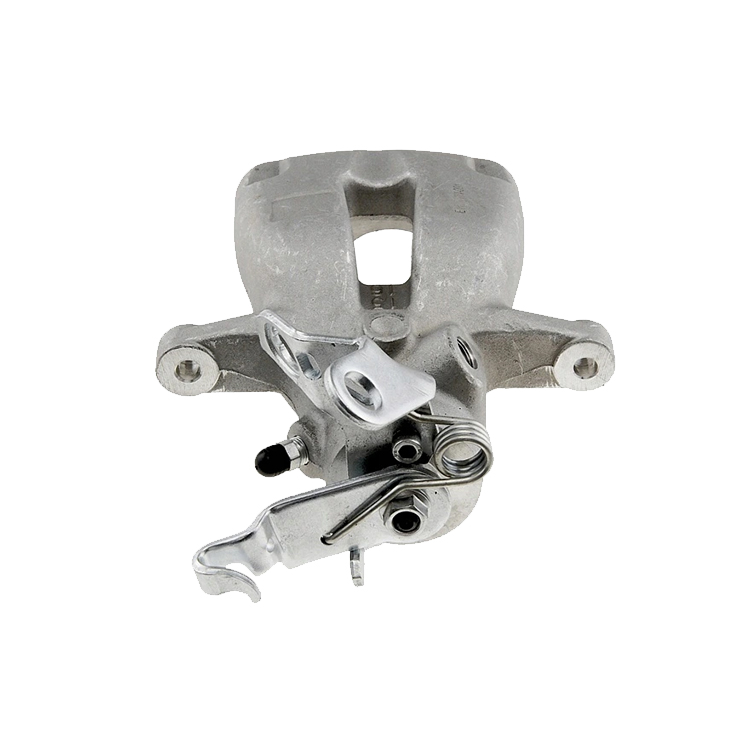

Brake Caliper 1K0615423C 1K0615423P 1K0615423F 1K0615423M 1K0615423H 1K0615423 for Audi VW SKODA SEAT

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 12

For Brake Disc Diameter [mm] 282

Piston Diameter [mm] 42

OE Number 1K0615423C 1K0615423 1K0615423P 1K0615423F 1K0615423M 1K0615423H


Product Detail

Company Profile

Product Tags

Reference No.

A.B.S. 521001
BUDWEG CALIPER 343364
TRW BHS324/ BHS324E
ATE 24.3414-1709.7
BOSCH 0986473448
Brake ENGINEERING CA2552

Part List

REPAIR KIT

D41124C

PISTON

234101

REPAIR KIT

204101

GUIDE SLEEVE KIT

169135

SEAL, PISTON

184101

Compatible Applications

Audi A3 (8P1)      (2003/05 – 2012/08)
Audi A3 Sportback (8PA)      (2004/09 – 2013/03)
Audi TT (8J3)      (2006/08 – 2014/06)
Audi TT Roadster (8J9)      (2007/03 – 2014/06)
VW TOURAN (1T1, 1T2)      (2003/02 – 2010/05)
VW RABBIT V (1K1)      (2003/10 – 2009/02)
VW VENTO III (1K2)      (2005/08 – 2010/10)
VW JETTA V Est (1K5)      (2007/06 – 2009/07)
VW SCIROCCO (137, 138)      (2008/05 – /)
VW GOLF VI (5K1)      (2008/10 – 2013/11)
VW GOLF VI Variant (AJ5)      (2009/07 – 2013/07)
SKODA OCTAVIA (1Z3)      (2004/02 – 2013/06)
SKODA OCTAVIA Combi (1Z5)      (2004/02 – 2013/06)
SKODA SUPERB (3T4)      (2008/03 – 2015/05)
SKODA YETI (5L)      (2009/05 – /)
SKODA SUPERB Est (3T5)      (2009/10 – 2015/05)
SEAT ALTEA (5P1)      (2004/03 – /)
SEAT TOLEDO III (5P2)      (2004/04 – 2009/05)
SEAT ALTEA XL (5P5, 5P8)      (2006/10 – /)

Which parts BIT is manufacturing?

We specialize in calipers. We re-manufacture already used calipers and manufacture new ones. In both cases, we supply calipers which match or exceed the quality of the originals. When choosing materials, we pursue achieving a durability which exceeds the normal standard. By way of example, we use brass bushings instead of a cheaper alternative. We use hard chrome-plated pistons.


  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.
