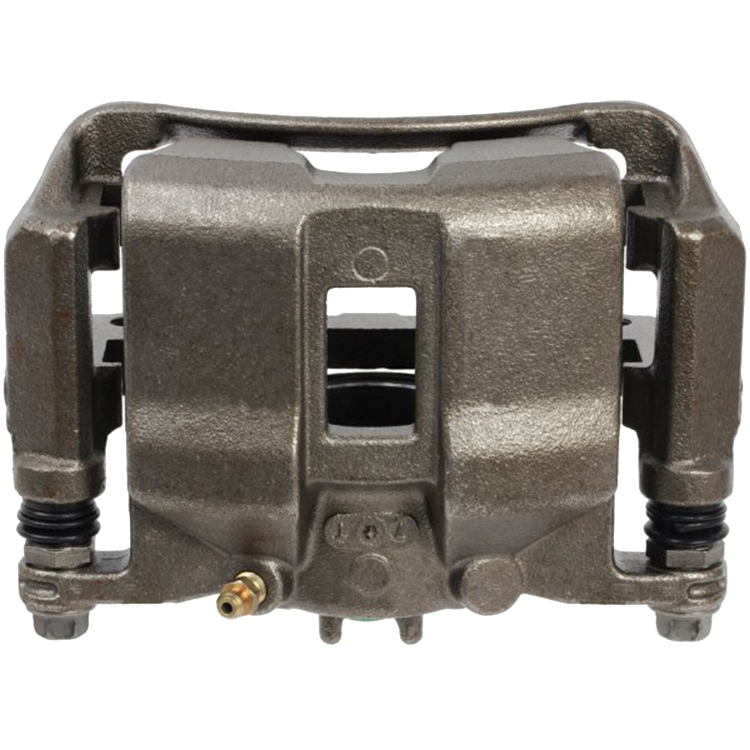

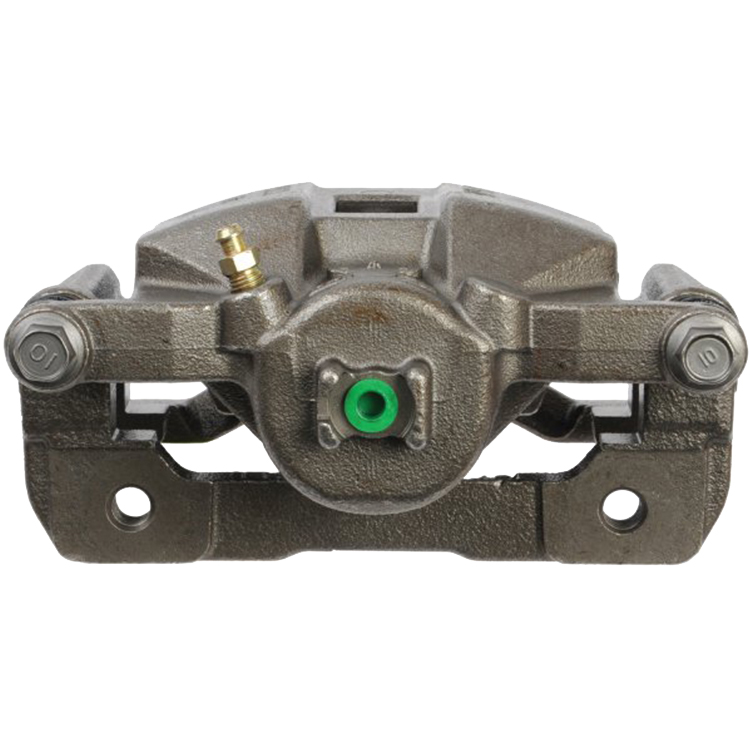

Acura Brake Caliper 45019-SNB-000 45019-TR0-E00 45019SNB000 45019TR0E00

Bleeder Port Size:  M10x1.0

Product Packing Weight:  11.4 lbs

Piston Size (OD) (mm) : 53.9496

Brake Caliper Finish: Oil Emulsion

Package Contents: Caliper; Bracket; Hardware Kit

Piston Material: STEEL

OE Number: 45019-SNB-000 45019-TR0-E00 45019SNB000

45019TR0E00


Product Detail

Company Profile

Product Tags

WENZHOU BIT AUTOMOBILE PARTS CO., LTD

Address

No.2 Building of Jiujie zone, Kunyang Town,Pingyang County, Wenzhou City, Zhejiang

Phone

+86 18857856585
+86 15088970715

Hours

Monday-Sunday: 9am to 12pm

Product Description

Interchanges No.

SL20305 AUTOLINE
99-00963A BBB INDUSTRIES
077-1735S BECK/ARNLEY
19-B3448
19B3448
SLC9981 FENCO
10-05281A-1 PROMECANIX
CRB603448 WAGNER
99-00963A WILSON
10 rows
10
first_page
chevron_left
1-8 of 8
chevron_right
SC3847 DNS
105178S UCX



Compatible Applications

Acura CSX 2006-2011 Front Left
Honda Civic 2006-2015 Front Left



WHY CHOOSE BIT?

We are not the cheapest choice in the market but is the professional supplier.

Quality comes at a price. And because we do not compromise, we do not aim to be the cheapest in the market. You can take pleasure from that. Because if you want to sell quality products, using our calipers will ensure that you achieve a greater turnover and greater earnings per unit. At the same time, you have more satisfied customers.



Assembling:

1. Install the brake disc and brake pads if necessary.

2. Install the new brake caliper and tighten bolts to the specified torque.

3. Tighten the brake hose and then remove the pressure from the brake pedal

4. Make sure that all movable parts are lubricated and glide easily.

5. Re-connect the pad wear sensor wires if fitted.

6. Bleed the brake system by following the vehicle manufacturer’s guidelines.

7. Mount the wheels.

8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.

9. Check the brake fluid and replenish if necessary. Follow the operating instructions.

10. Check that there is no leakage of brake fluid.

11. Test the brakes on a brake test stand and carry out a test run.

What You Can Get from Our Factory

BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.

We have complete parts for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

By the way, we also have wide range catalogs for European, American, Japanese and Korean cars. Such as Audi, VW, BMW, Dodge, Chevy, Toyota, honda, KIA, Hyundai and so on. Find something what you want in our company.

微信图片_20211030153016

What is Our Production

We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.

微信图片_20211030165742

How disc brakes work

When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

brake-caliper3

Certificate

Quality and value is a common goal we share as a company. We are committed to face any challenges and see this as an opportunity to offer more novel solutions.

This led to many firsts in automotive innovations, as well as many design patents based on the futuristic approach. As a manufacturer of brake calipers, you can rely on us to bring a revolutionary brake caliper product line. With the following advantages, you can be confident that you are getting the best and finest service in the market. In order to assure you our quality, we approved the IATF 16949 Certificate in 2016.
