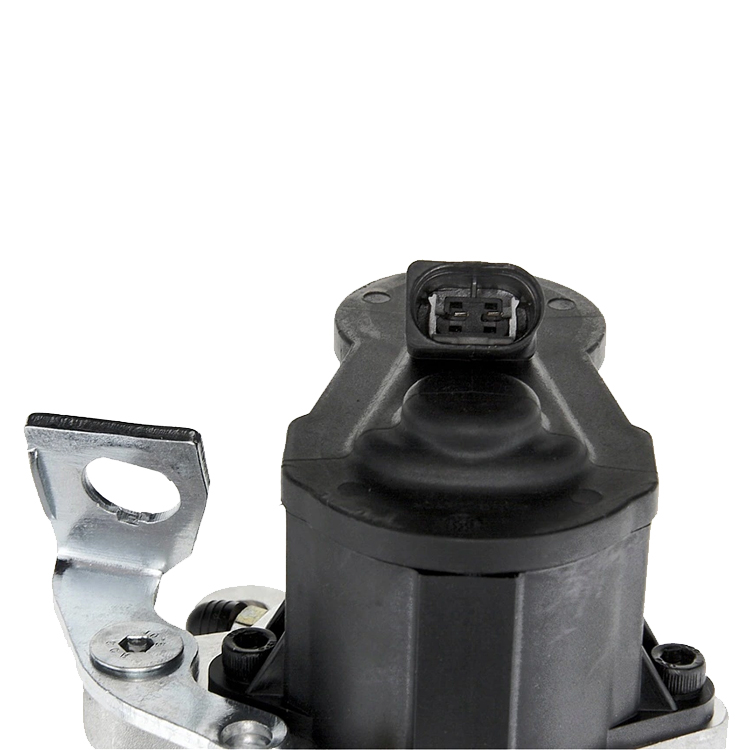

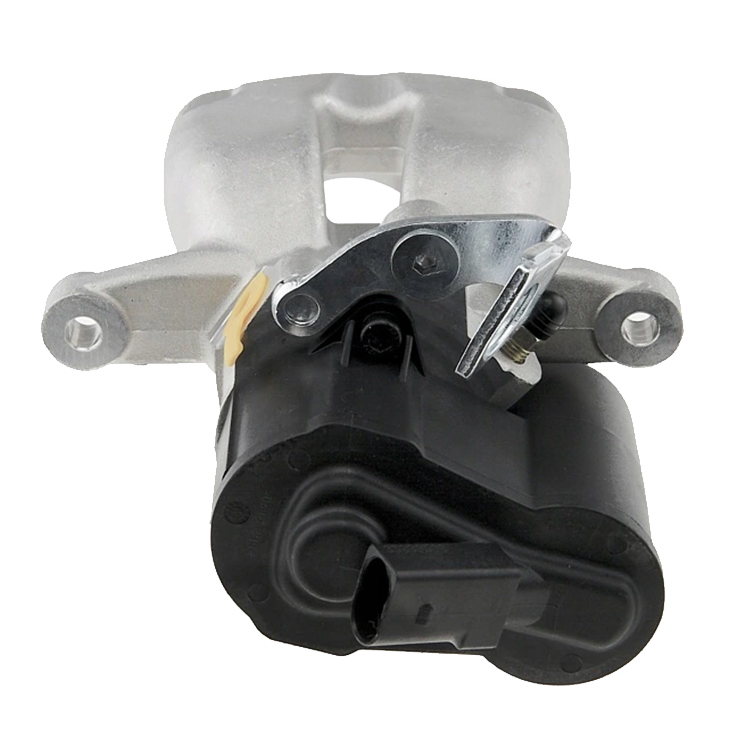

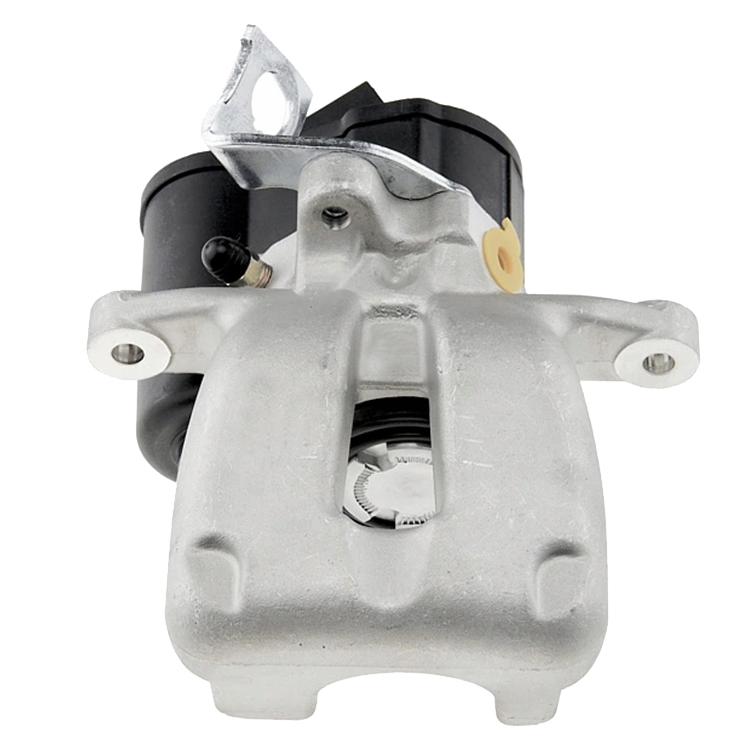

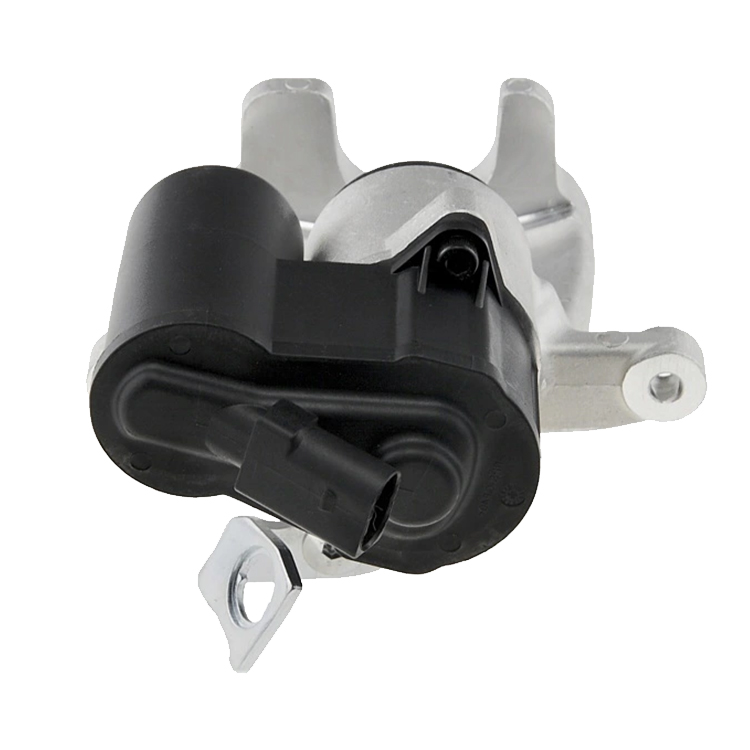

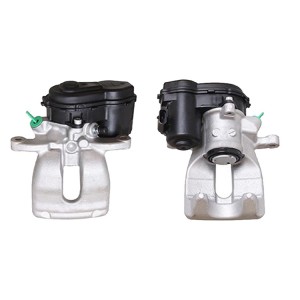

VW Electric Brake Caliper 3C0615404E

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 12

Piston Diameter [mm] 38

OE Number 3C0 615 404 3C0 615 404E 3C0615404 3C0615404E


Product Detail

Company Profile

Product Tags

Reference No.

A.B.S. 522792
BUDWEG CALIPER 343643
TRW BHN358E/ BHN358
BOSCH 0986474455
Brake ENGINEERING CA2782R



Part List

REPAIR KIT

D42248C

PISTON

233856

REPAIR KIT

203863

GUIDE SLEEVE KIT

169135

SEAL, PISTON

183863



Compatible Applications

VW PASSAT Saloon (3C2)      (2005/03 – 2010/11)
VW PASSAT Variant (3C5)      (2005/08 – 2011/10)



Functionality

Apart from performing the basic vehicle holding function required of park brakes, the EPB systems provide other functions like automatic release of the park brakes when the driver presses the accelerator or slips the clutch, and re-clamping using additional force on detection of vehicle motion. Further, the hill-hold function, which applies brakes to prevent roll-back when pulling away on a gradient, can also be implemented using the EPB.



Implementation

The implementation of the control logic for the actuators is carried out by either using a stand alone ECU or by integrating it in the ECU for electronic stability control.


  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.

    20211030165742
