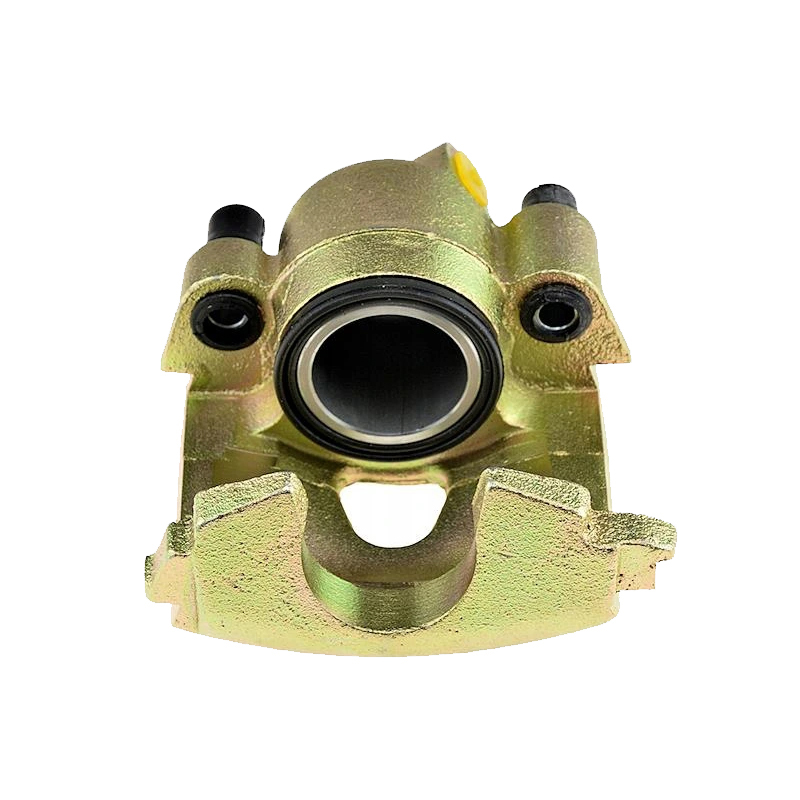

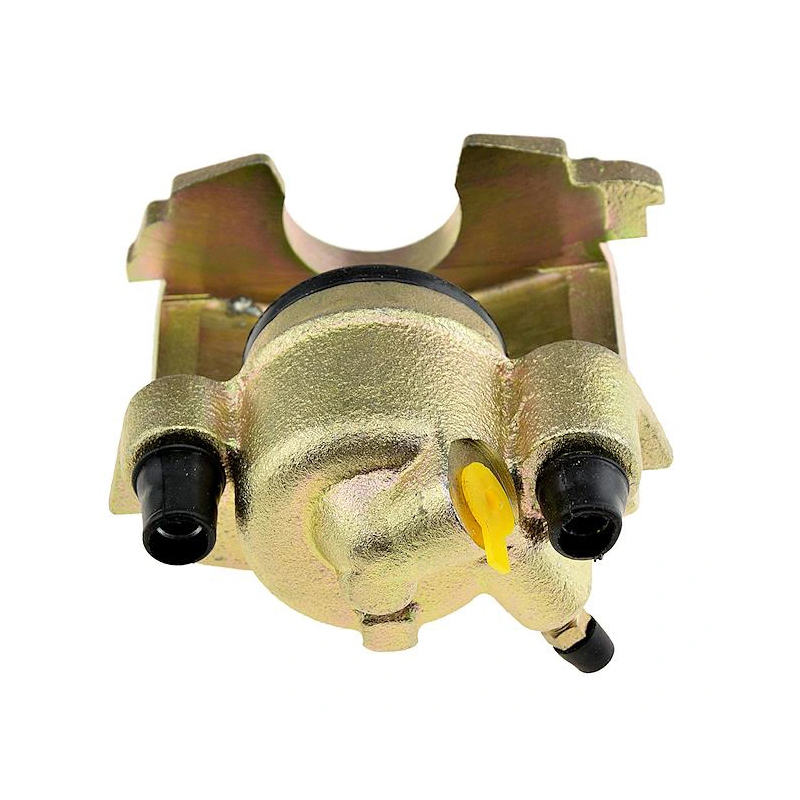

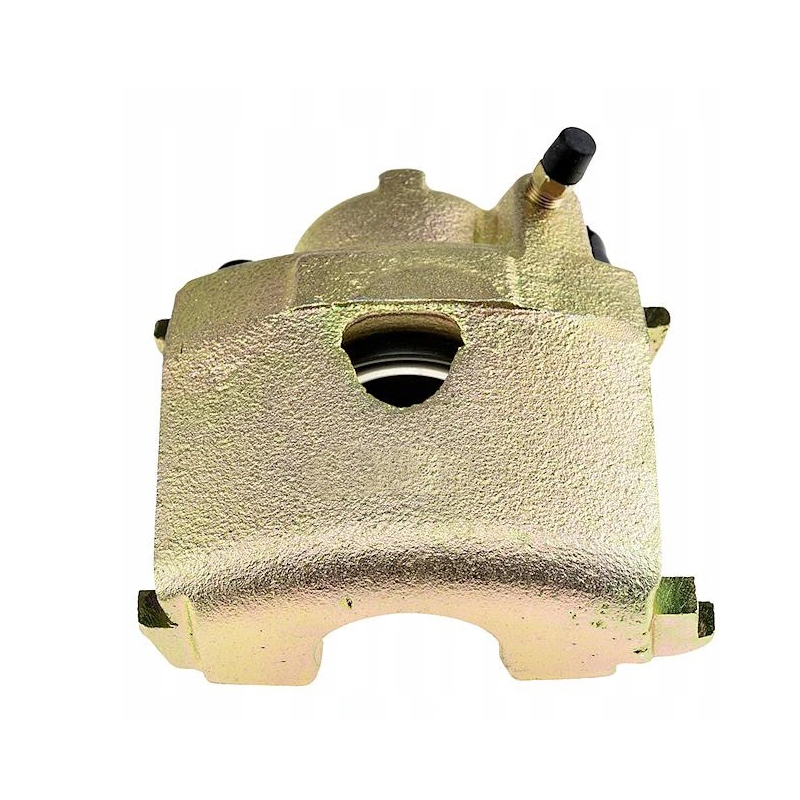

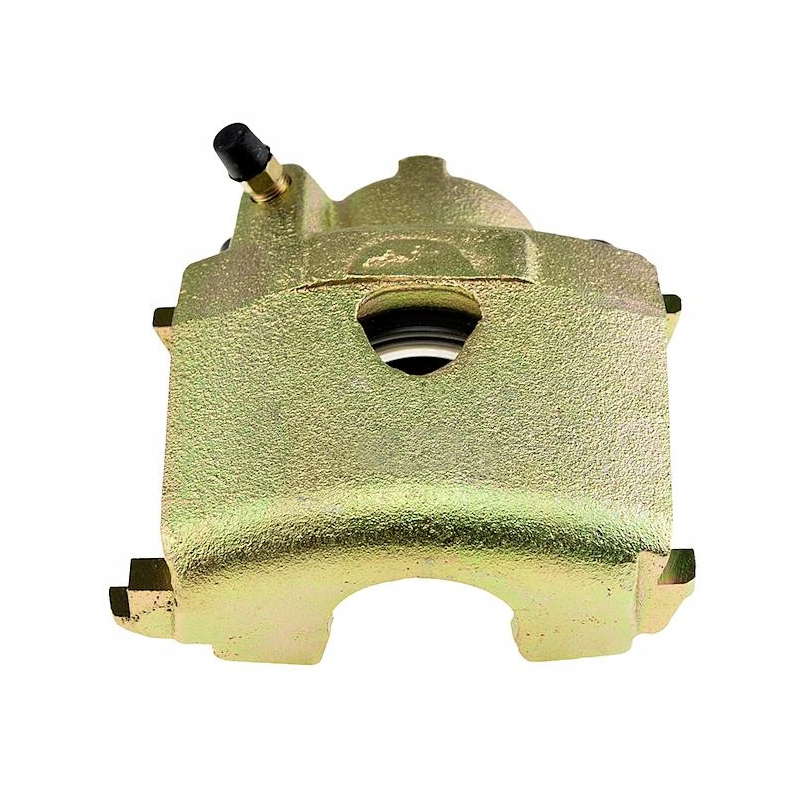

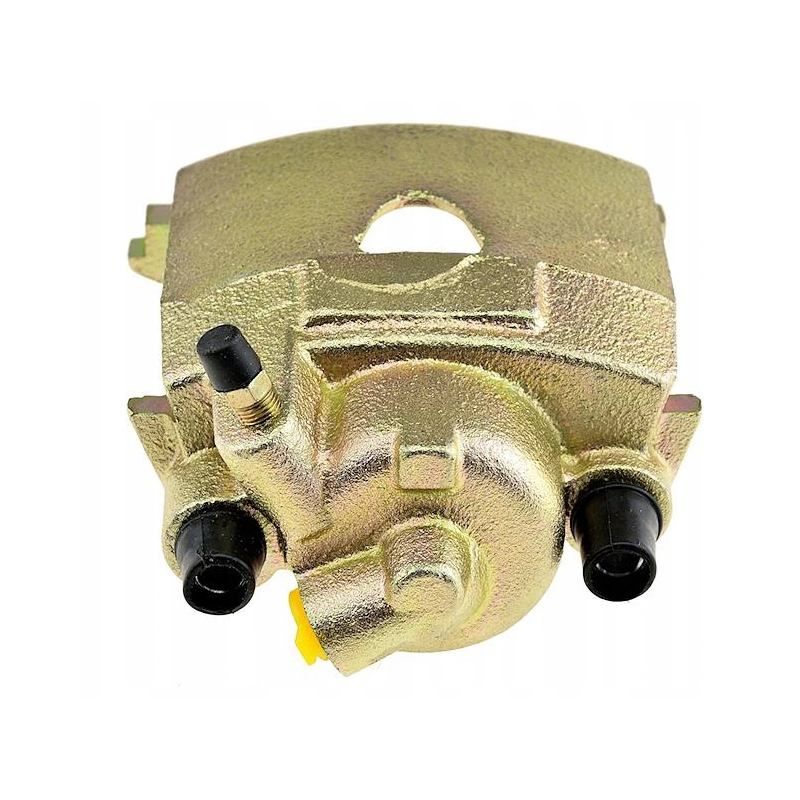

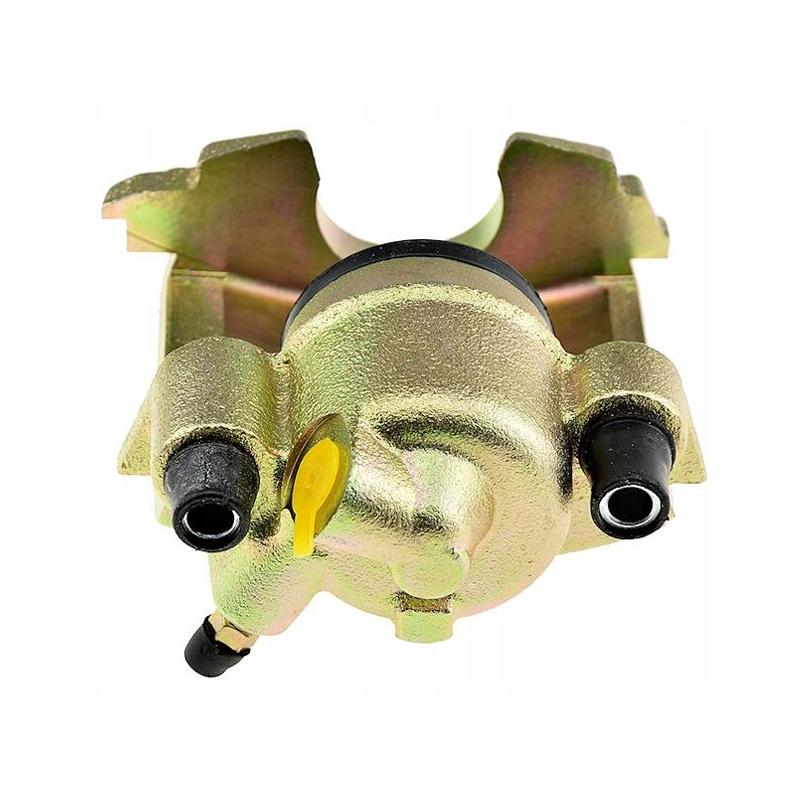

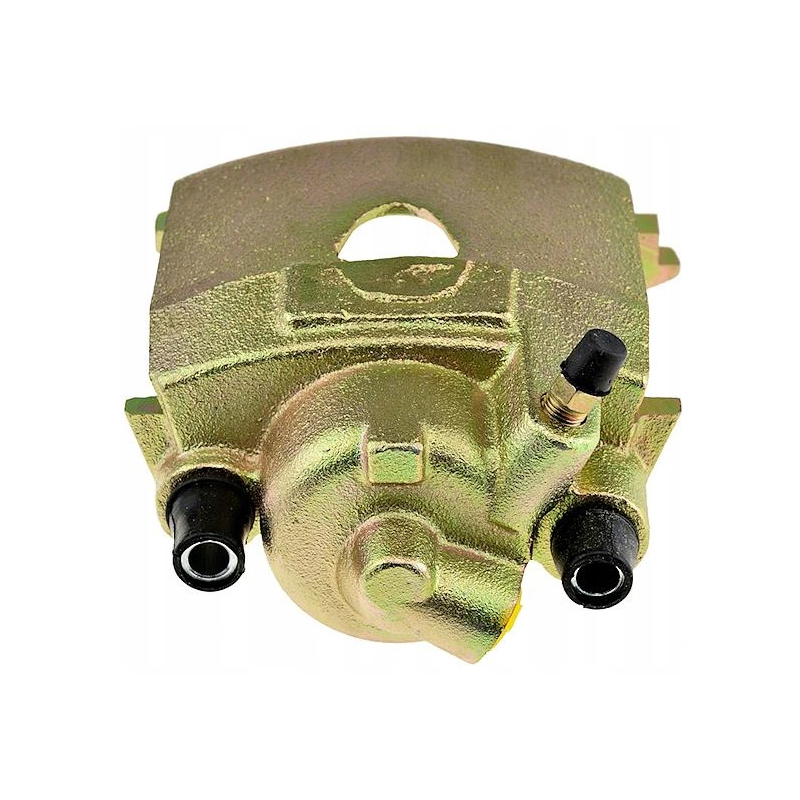

VW Seat Brake Caliper 171615123B 357615123 171615123 1H0615123A
Reference No.
| A.B.S. | 428871 |
| BUDWEG CALIPER | 34070 |
| TRW | BHV120/ BHV308/ BHV120E |
| BOSCH | 0986473663 |
| Brake ENGINEERING | CA1742/ CA592 |
Part List
| REPAIR KIT |
D41076C |
| PISTON |
234831 |
| REPAIR KIT |
204827 |
| GUIDE SLEEVE KIT |
169051 |
| SEAL, PISTON |
184827 |
Compatible Applications
| VW JETTA (16) (1978/08 – 1987/12) | |
| VW CORSAR (32B) (1981/08 – 1985/12) | |
| VW SCIROCCO (53) (1974/02 – 1980/07) | |
| VW SCIROCCO (53B) (1980/08 – 1992/07) | |
| VW CARAT (32B) (1979/11 – 1989/06) | |
| VW PASSAT (3A2, 35I) (1988/02 – 1997/12) | |
| VW PASSAT Variant (32B) (1980/08 – 1989/06) | |
| VW PASSAT Variant (3A5, 35I) (1988/02 – 1997/06) | |
| VW POLO Coupe (86C, 80) (1981/10 – 1994/09) | |
| VW RABBIT I Convertible (155)(1979/01 – 1993/08) | |
| VW GOLF I (17) (1974/04 – 1985/12) | |
| VW GOLF Mk II (19E, 1G1) (1983/08 – 1992/12) | |
| VW GOLF Mk III (1H1) (1991/08 – 1998/07) | |
| VW GOLF III Variant (1H5) (1993/07 – 1999/04) | |
| VW CARAT Saloon (32B) (1984/08 – 1989/06) | |
| VW POLO CLASSIC (6KV2) (1995/11 – 2006/07) | |
| VW POLO Variant (6KV5) (1997/04 – 2001/09) | |
| VW JETTA II Saloon (19E, 1G2, 165) (1983/08 – 1992/12) | |
| VW VENTO (1H2) (1991/11 – 1998/09) | |
| VW CADDY (14) (1979/09 – 1992/07) | |
| VW POLO Box (6NF) (1994/09 – 1999/12) | |
| SEAT CORDOBA Saloon (6K1, 6K2) (1993/02 – 1999/10) | |
| SEAT TOLEDO I (1L) (1991/01 – 1999/10) | |
| SEAT IBIZA Mk II (6K1) (1993/03 – 1999/08) | |
| SEAT CORDOBA Vario (6K5) (1996/08 – 1999/06) | |
| SEAT CORDOBA (6K2) (1999/06 – 2002/10) | |
| SEAT CORDOBA Vario (6K5) (1999/06 – 2002/12) | |
| SEAT IBIZA III (6K1) (1999/08 – 2002/02) |
Dismantling:
1. Lift the car (use a vehicle ramp if available).
2. Remove the wheels.
3. Disconnect pad wear sensor wires if fitted.
4. Untie the brake hose and use a brake pedal depressor to hold the brake pedal down to shut off the system.
5. Dismantle the brake caliper.
6. Dismantle the brake disc and brake pads if you wish to replace them.
