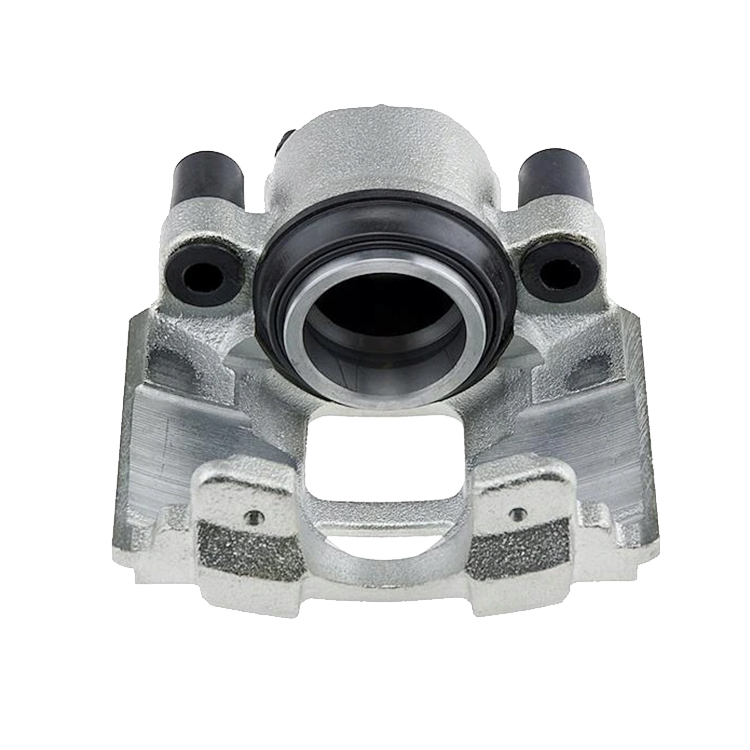

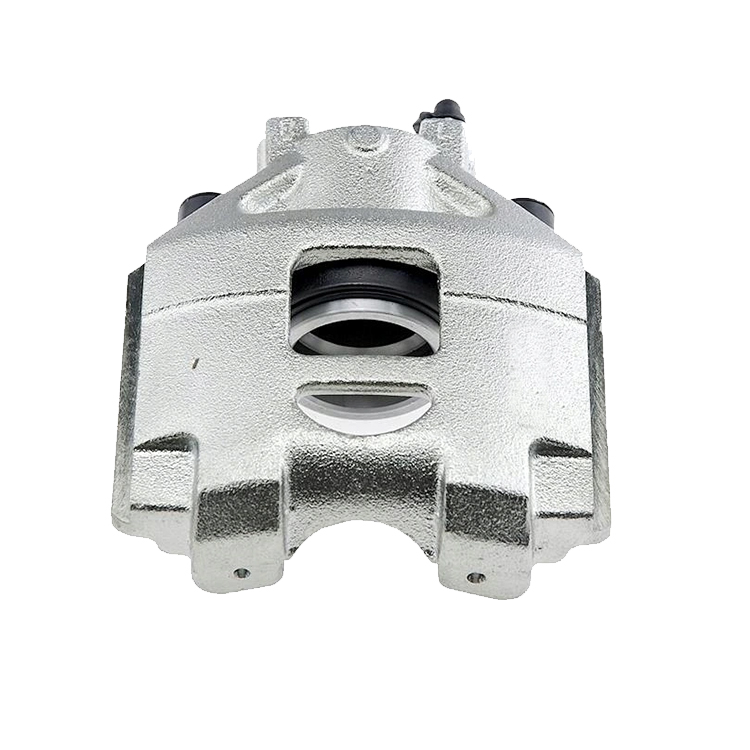

TOYOTA Brake Caliper 47750-0D070 477500D070
Reference No.
| A.B.S. 421321 |
| ATE 11.9541-9569.2 |
| Brake ENGINEERING CA2924 |
| BUDWEG CALIPER 343906 |
| BREMBO F 83 250 |
| CARDONE 385224 |
| DELCO REMY DC83906 |
| DRI 3197010 |
| ELSTOCK 82-1907 |
Part List
| 205472 (REPAIR KIT) |
| 235478 (PISTON) |
| 185472 (SEAL, PISTON) |
| 169200 (GUIDE SLEEVE KIT) |
Compatible Applications
| TOYOTA YARIS/VITZ (SCP9_, NSP9_, KSP9_, NCP9_, ZSP9_) (2005/08 – /) |
| TOYOTA YARIS/VITZ (NHP13_, NSP13_, NCP13_, KSP13_, NLP13_) (2010/12 – /) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
