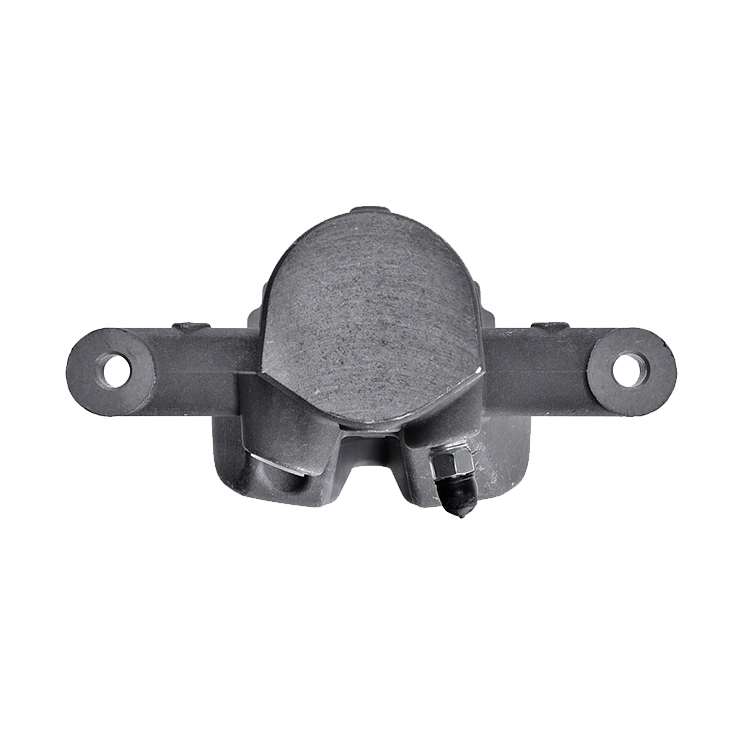

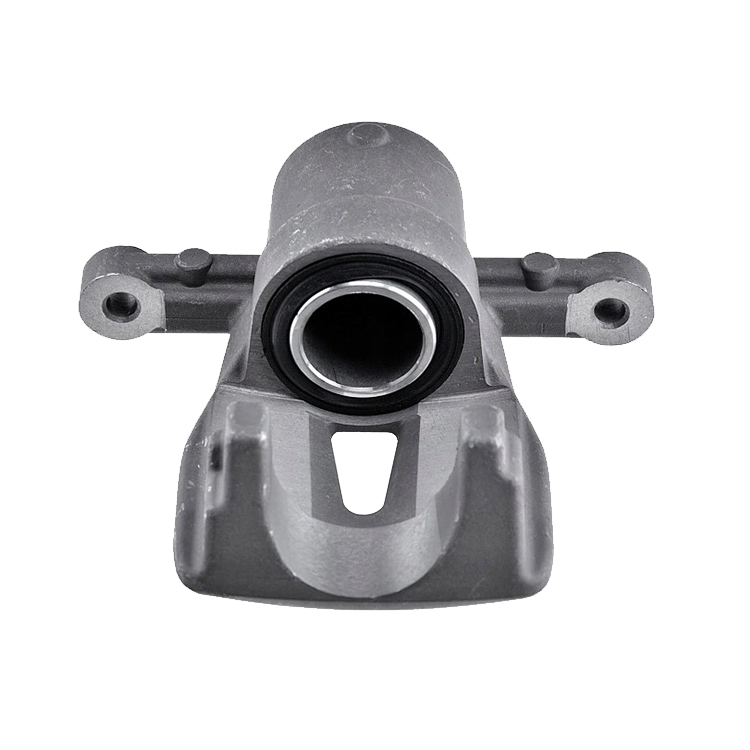

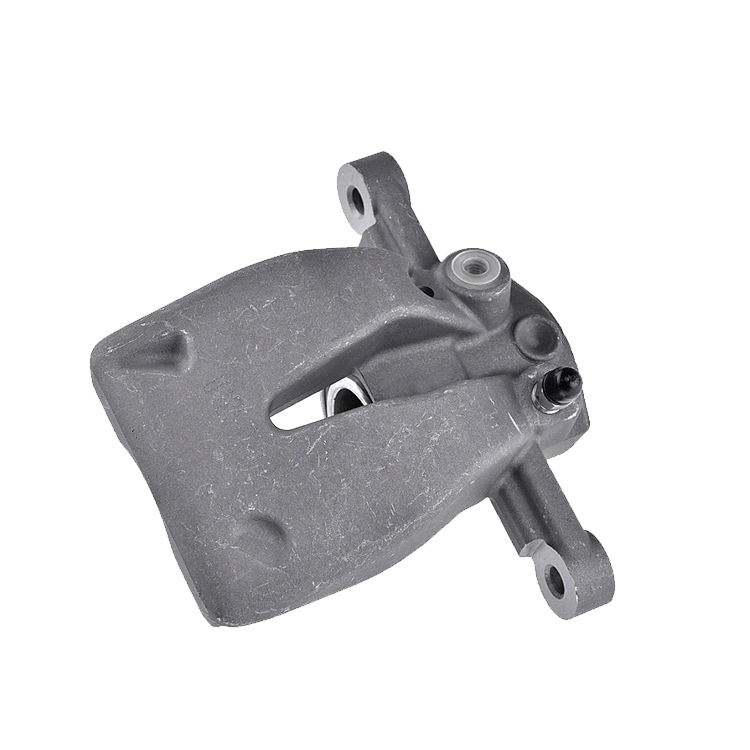

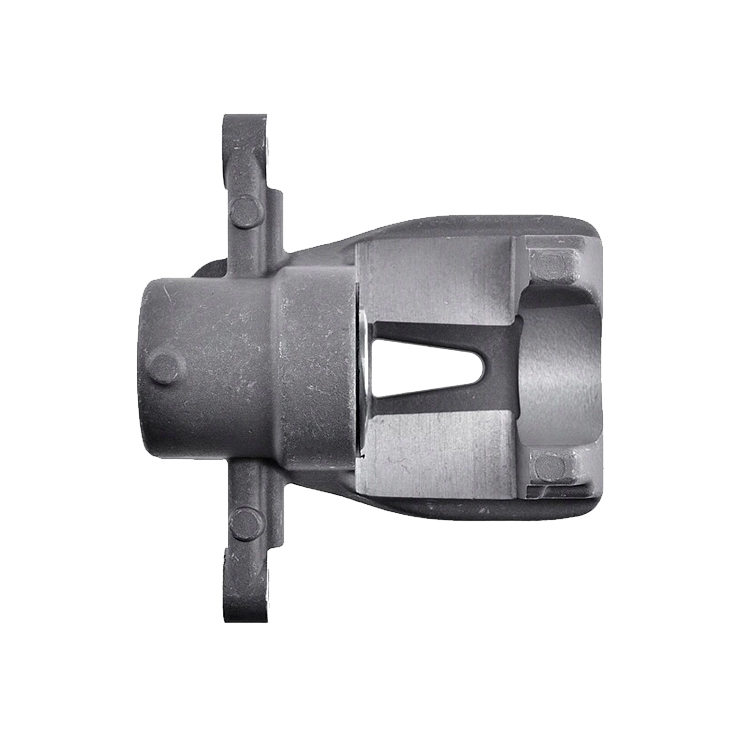

TOYOTA Brake Caliper 47750-05070 4775005070 47850-0F010 478500F010 47750-05071 4775005071
Reference No.
| APEC braking | LCA349 |
| AUTOFREN SEINSA | D41596C |
| BENDIX | 694647B |
| BLUE PRINT | ADT34588R |
| BOSCH | 0 986 473 201 |
| Brake ENGINEERING | CA2485 |
| BREMBO | F 83 216 |
| BUDWEG CALIPER | 343476 |
Part List
| 203855 (REPAIR KIT) |
| 233847 (PISTON) |
| 183855 (SEAL, PISTON) |
| 189921 (GUIDE SLEEVE KIT) |
Compatible Applications
| TOYOTA AVENSIS Saloon (T25) (2003/04 – 2008/11) |
| TOYOTA AVENSIS Combi (T25) (2003/04 – /) |
| TOYOTA AVENSIS (T25_) (2003/04 – 2008/11) |
| TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) (2004/03 – 2009/04) |
Dismantling:
1. Lift the car (use a vehicle ramp if available).
2. Remove the wheels.
3. Disconnect pad wear sensor wires if fitted.
4. Untie the brake hose and use a brake pedal depressor to hold the brake pedal down to shut off the system.
5. Dismantle the brake caliper.
6. Dismantle the brake disc and brake pads if you wish to replace them.
