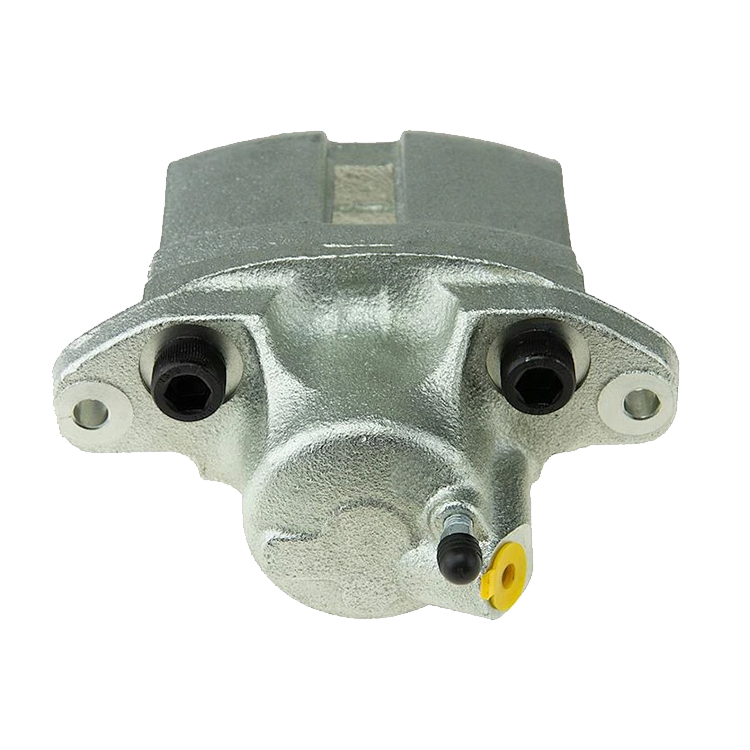

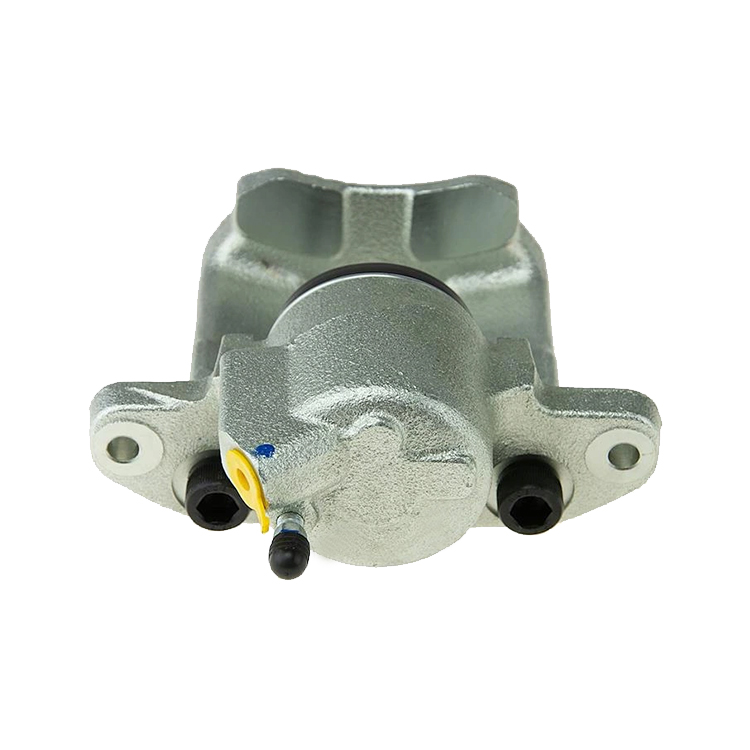

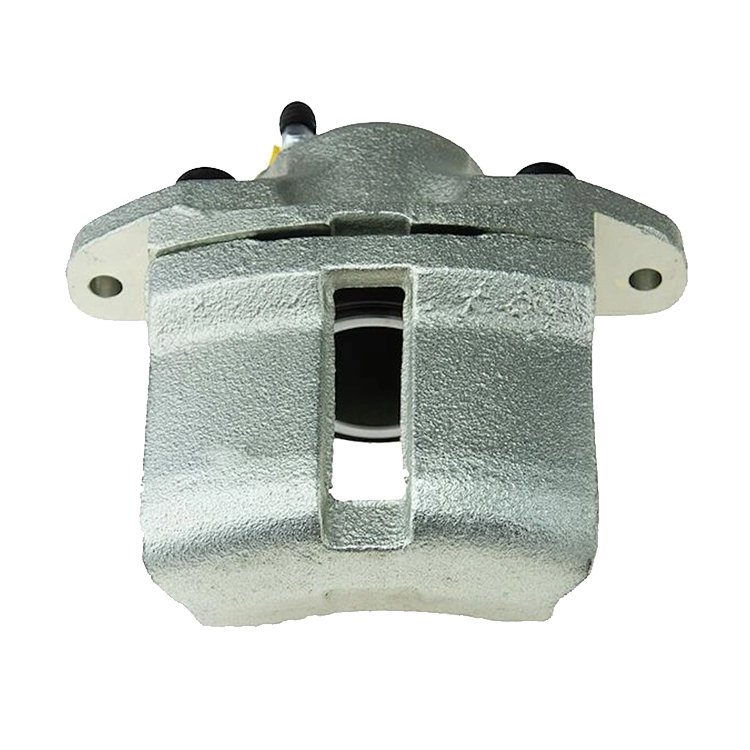

Renault Brake Caliper 95658556 7701207959 440164 7701201966 7701499302
Reference No.
| A.B.S. | 529742 |
| ATE | 24.3481-1616.5 |
| ATE | 24.3481-1616.7 |
| BENDIX | 691986B |
| BOSCH | 0 986 472 677 |
| BOSCH | 0 986 474 677 |
| Brake ENGINEERING | CA673R |
| BREMBO | F 68 035 |
Part List
| REPAIR KIT |
D41063C |
|
| 204836 (REPAIR KIT) | ||
| 234810 (PISTON) | ||
| 184836 (SEAL, PISTON) | ||
Compatible Applications
| Renault CLIO ? (B/C57_, 5/357_) (1990/05 – 1998/09) |
| Renault ENCORE (B/C37_) (1983/03 – 1989/07) |
| Renault TWINGO I (C06_) (1993/03 – /) |
| Renault 19 Mk II Convertible (D53_, 853_) (1992/04 – 2001/06) |
| Renault 19 I (B/C53_) (1988/01 – 1994/09) |
| Renault 19 I Chamade (L53_) (1988/01 – 1992/12) |
| Renault 19 II (B/C53_) (1991/01 – 2001/06) |
| Renault 19 II Chamade (L53_) (1992/04 – 2003/08) |
| Renault 21 Saloon (L48_) (1986/03 – 1997/07) |
| Renault 21 Savanna (K48_) (1986/03 – 1995/09) |
| Renault SUPER 5 (B/C40_) (1984/10 – 1996/12) |
| Renault 9 (L42_) (1981/09 – 1997/02) |
| Renault MEGANE I (BA0/1_) (1995/08 – 2004/12) |
| Renault MEGANE I Coupé (DA0/1_) (1996/03 – 2003/08) |
| Renault MEGANE I Classic (LA0/1_) (1996/09 – 2006/03) |
| Renault MEGANE Scenic (JA0/1_) (1996/10 – 2001/12) |
| Renault MEGANE I Cabriolet (EA0/1_) (1996/10 – 2003/08) |
| Renault 21 (B48_) (1989/07 – 1994/06) |
| Renault CLIO II (BB0/1/2_, CB0/1/2_) (1998/09 – /) |
| Renault MEGANE I Grandtour (KA0/1_) (1999/03 – 2003/08) |
| Renault 19 I Cabriolet (D53_) (1991/07 – 1992/04) |
| Renault 19 II Box (S53_) (1992/03 – 1995/12) |
| Renault 21 Box (S48_) (1986/06 – 1995/04) |
| Renault CLIO ? Box (S57_) (1991/01 – 1998/09) |
| Renault SUPER 5 Box (S40_) (1984/10 – 1996/12) |
| Renault CLIO II Box (SB0/1/2_) (1998/09 – /) |
| Renault THALIA I (LB0/1/2_) (1998/02 – /) |
| Renault CLIO III (BR0/1, CR0/1) (2005/01 – /) |
| Renault TWINGO II (CN0_) (2007/03 – /) |
| Renault LOGAN I (LS_) (2004/09 – /) |
| Renault LOGAN I Est (KS_) (2007/04 – /) |
| Renault SANDERO/STEPWAY I (2007/11 – /) |
| Renault THALIA II (LU1/2_) (2008/09 – /) |
| Qashqai DACIALOGAN (LS_) (2004/09 – /) |
| Qashqai DACIALOGAN MCV (KS_) (2007/02 – /) |
| Qashqai DACIASANDERO (2008/06 – /) |
Note:
For best results and safety, we recommend that all maintenance and repair work should be carried out by a trained technician in accordance with the guidelines issued by the vehicle manufacturer. In case of incorrect or improper installation of the product, no legal responsibility will be accepted.
Dismantling:
1. Lift the car (use a vehicle ramp if available).
2. Remove the wheels.
3. Disconnect pad wear sensor wires if fitted.
4. Untie the brake hose and use a brake pedal depressor to hold the brake pedal down to shut off the system.
5. Dismantle the brake caliper.
6. Dismantle the brake disc and brake pads if you wish to replace them.
