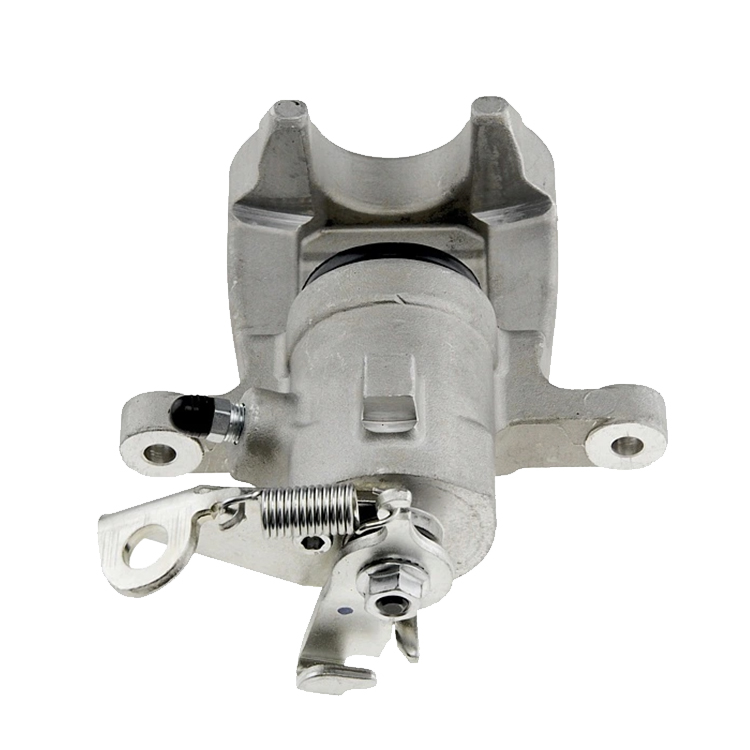

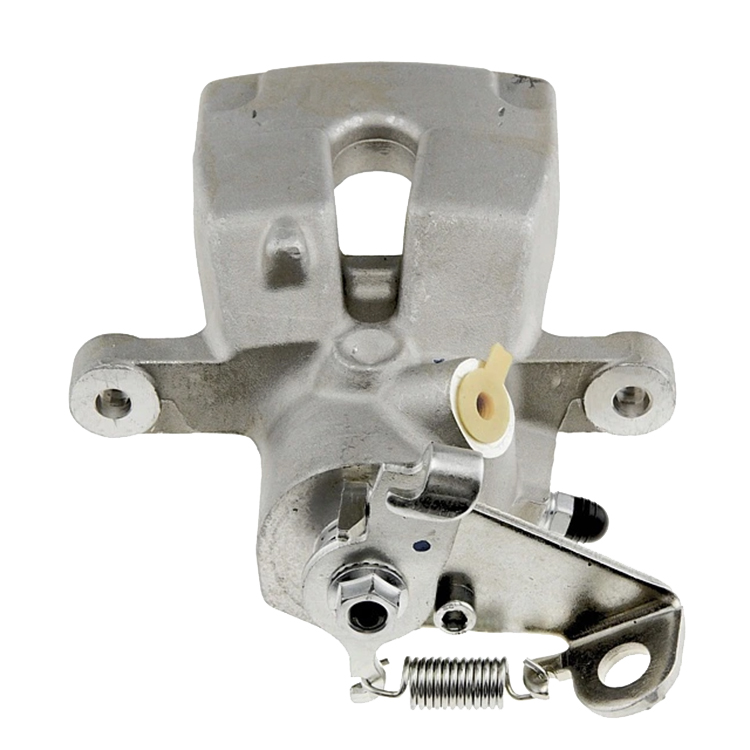

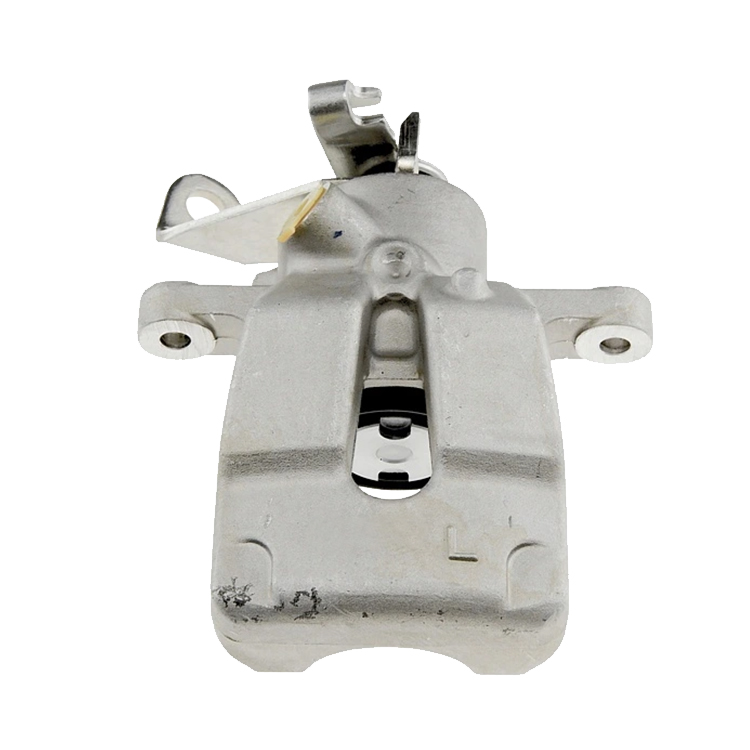

Renault Brake Caliper 7701206344 8253651 7711135719

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 11

Piston Diameter [mm] 34

OE Number 7701206344 8253651 7711135719


Product Detail

Company Profile

Product Tags

Reference No.

A.B.S. 520131
BUDWEG CALIPER   343068
TRW BHQ155E/ BHQ155
ATE 24.3344-1707.7
BOSCH 0986473471
Brake ENGINEERING CA2052



Part List

REPAIR KIT

D41161C

PISTON

233411

REPAIR KIT

203411

GUIDE SLEEVE KIT

169137

REPAIR KIT, PARKING BRAKE HANDLE

2099390

SEAL, PISTON

183411



Compatible Applications

Renault MEGANE Scenic (JA0/1_)      (1996/10 – 2001/12)
Renault MEGANE I Grandtour (KA0/1_)      (1999/03 – 2003/08)
Renault SCéNIC I (JA0/1_)      (1999/09 – 2003/09)



Assembling:

1. Install the brake disc and brake pads if necessary.

2. Install the new brake caliper and tighten bolts to the specified torque.

3. Tighten the brake hose and then remove the pressure from the brake pedal

4. Make sure that all movable parts are lubricated and glide easily.

5. Re-connect the pad wear sensor wires if fitted.

6. Bleed the brake system by following the vehicle manufacturer’s guidelines.

7. Mount the wheels.

8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.

9. Check the brake fluid and replenish if necessary. Follow the operating instructions.

10. Check that there is no leakage of brake fluid.

11. Test the brakes on a brake test stand and carry out a test run.
