OPEL VAUXHALL Brake Caliper 542304 542296 9196452 9193976 5542001 9118110
Address
No.2 Building of Jiujie zone, Kunyang Town,Pingyang County, Wenzhou City, Zhejiang
Phone
+86 18857856585
+86 15088970715
Hours
Monday-Sunday: 9am to 12pm
Product Description

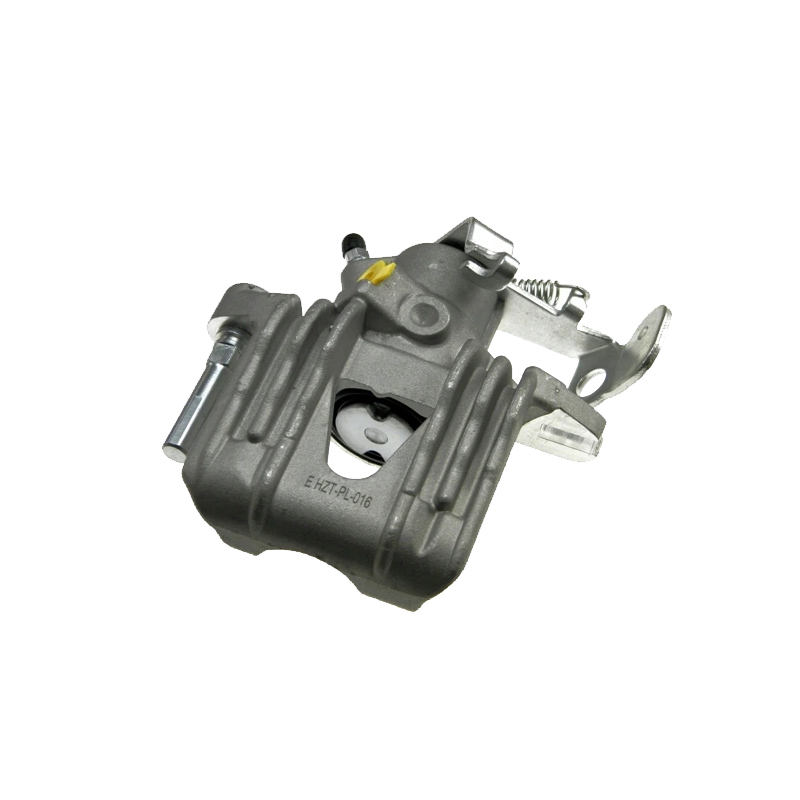

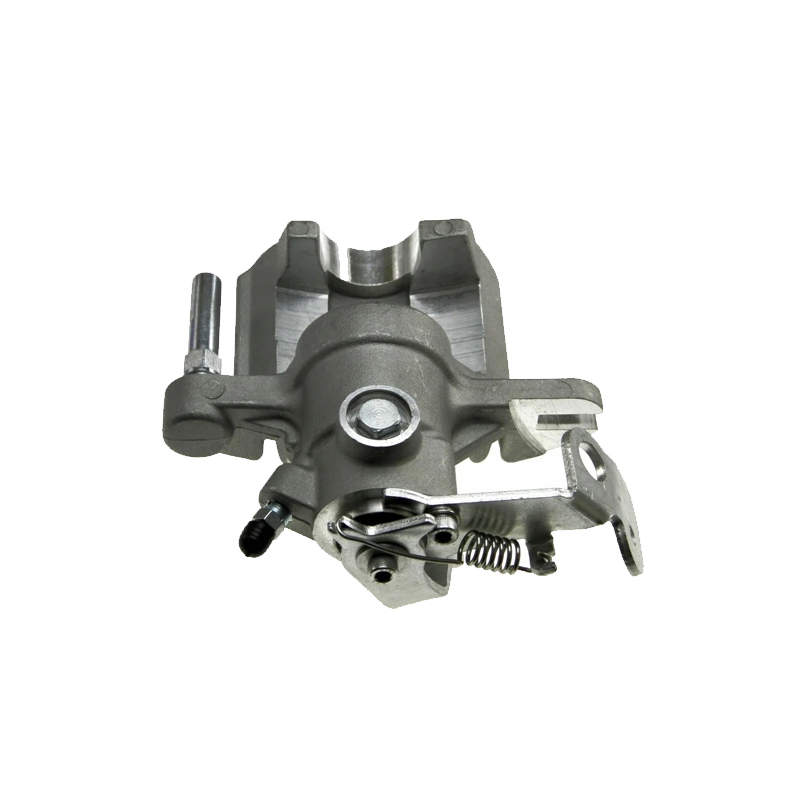

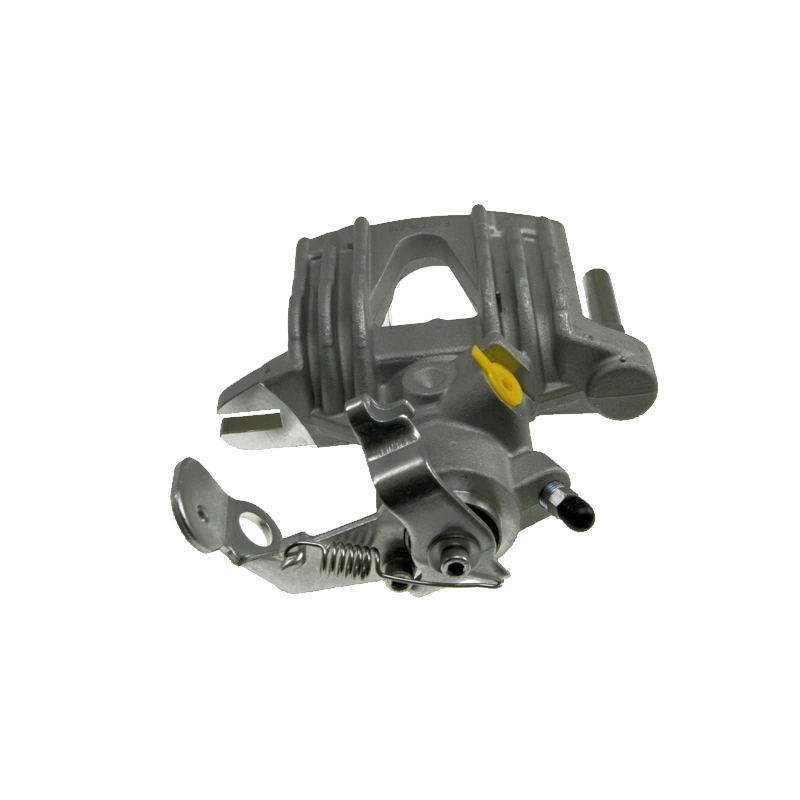

Brake Caliper
The brake caliper plays a central role in a disc-brake system and has two functions. First, it acts either as a bracket to support the brake pads on either side of the rotor or to support the caliper bracket itself — there are other designs, but these are the two most common. Second, it uses pistons to convert pressure exerted on the brake fluid by the master cylinder into friction on the rotor.
Reference No.
| A.B.S. | 623891 |
| BUDWEG CALIPER | 342898 |
| TRW | BHQ291E/ CKQ101 |
| BOSCH | 0986473324 |
| Brake ENGINEERING | CA2015 |
Part List
| REPAIR KIT |
D4853C |
| PISTON |
233419 |
| REPAIR KIT |
203414 |
| GUIDE SLEEVE KIT |
169145 |
| SEAL, PISTON |
183414 |
Compatible Applications
| OPEL ASTRA G Hatchback (F48_, F08_) (1998/02 - 2009/12) |
| OPEL ASTRA G Est (F35_) (1998/02 - 2009/12) |
| OPEL ASTRA G Saloon (F69_) (1998/09 - 2009/12) |
| OPEL ASTRA G Box (F70) (1999/01 - 2005/04) |
| VAUXHALL ASTRA Mk IV (G) Hatchback (1998/02 - 2005/05) |
| VAUXHALL ASTRA Mk IV (G) Saloon (1998/02 - 2005/05) |
| VAUXHALL ASTRA Mk IV (G) Est (1998/02 - 2005/05) |
| VAUXHALL ASTRAVAN Mk IV (G) (1998/08 - 2006/08) |
What You Can Get from Our Factory
BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.
We have complete parts for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.
By the way, we also have wide range catalogs for European, American, Japanese and Korean cars. Such as Audi, VW, BMW, Dodge, Chevy, Toyota, honda, KIA, Hyundai and so on. Find something what you want in our company.
What is Our Production
We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.
How disc brakes work
When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.
Certificate
Quality and value is a common goal we share as a company. We are committed to face any challenges and see this as an opportunity to offer more novel solutions.
This led to many firsts in automotive innovations, as well as many design patents based on the futuristic approach. As a manufacturer of brake calipers, you can rely on us to bring a revolutionary brake caliper product line. With the following advantages, you can be confident that you are getting the best and finest service in the market. In order to assure you our quality, we approved the IATF 16949 Certificate in 2016.
