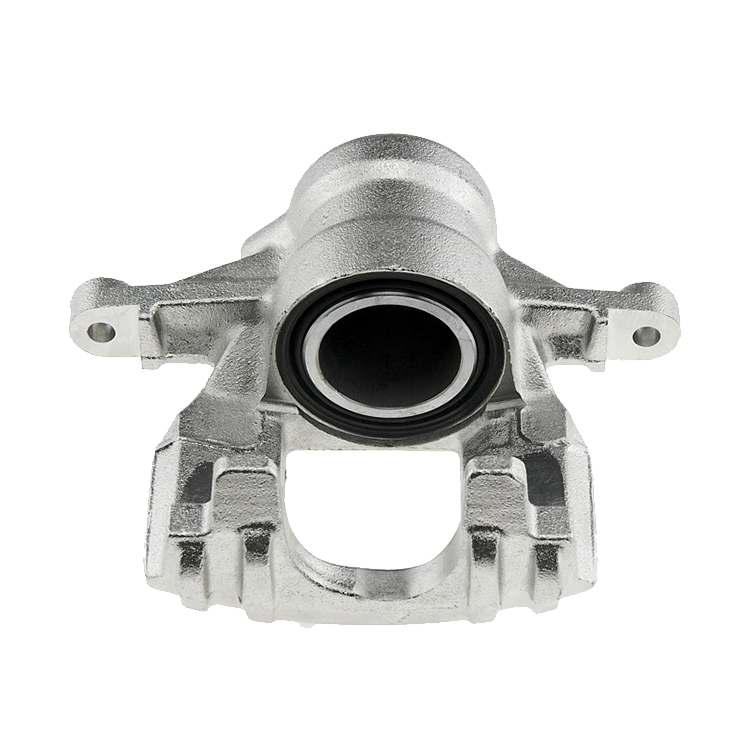

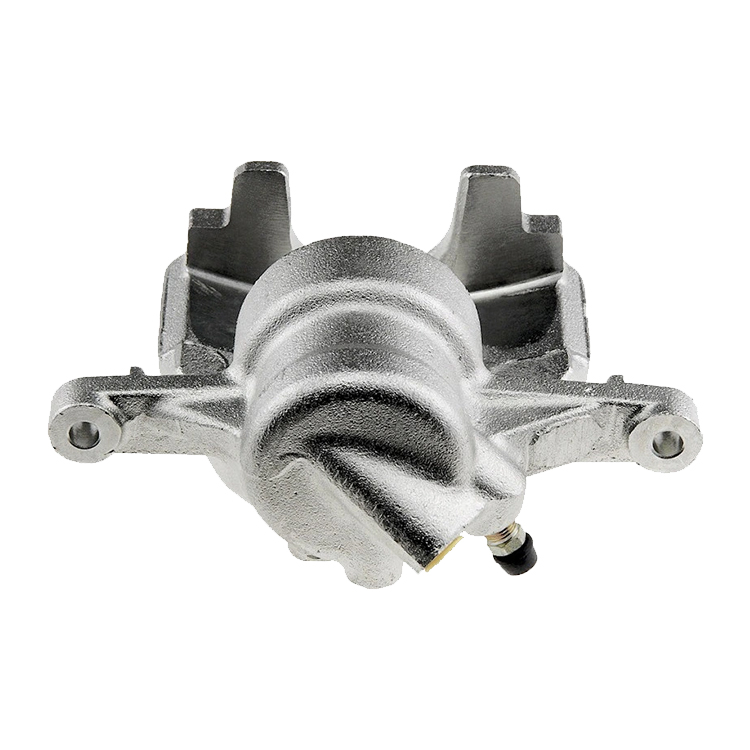

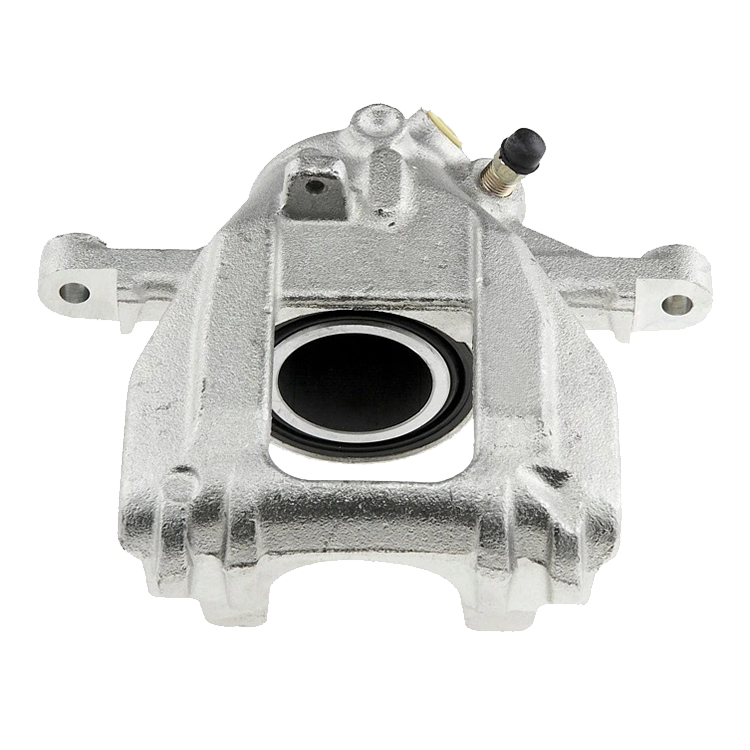

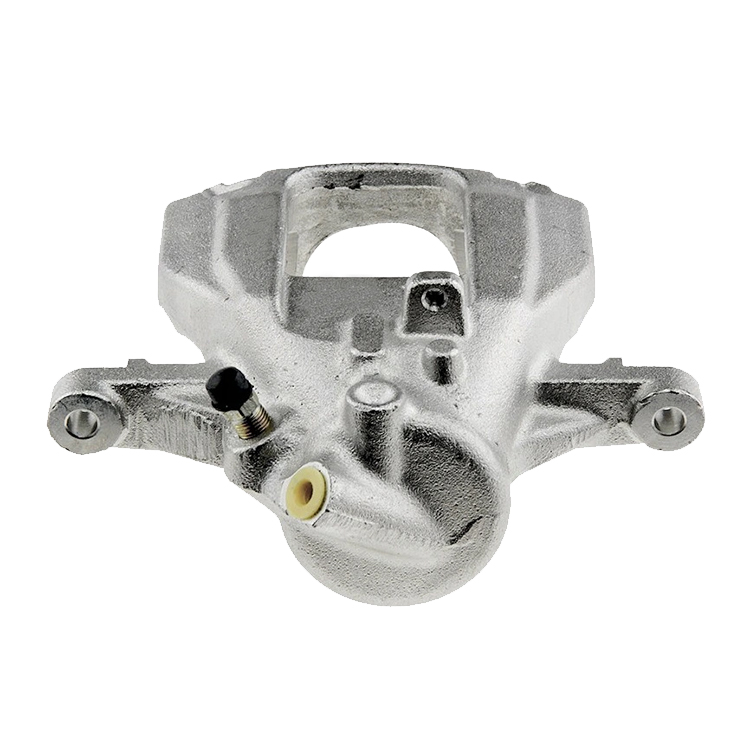

Brake Caliper 343884 0034207183 2E0615405B 2E0615423 A0034207183 for Mercedes-Benz VW

Brake Caliper Type   Caliper (1 piston)

Brake Disc Thickness [mm] 16

Piston Diameter [mm]  51

OE Number  0034207183  2E0615405B  2E0615423  A0034207183


Product Detail

Company Profile

Product Tags

Reference No.

A.B.S. 621401
BOSCH 0 204 004 519
BOSCH 0 986 134 046
Brake ENGINEERING CA2821
BUDWEG CALIPER 343884
BREMBO F 50 242
CARDONE 385592
DELCO REMY DC73884
DRI 4193010



Part List

205134 (REPAIR KIT)
235121 (PISTON)
185134 (SEAL, PISTON)
169132 (GUIDE SLEEVE KIT)



Compatible Applications

VW CRAFTER 30-35 Bus (2E_)      (2006/04 – /)
VW CRAFTER 30-50 Box (2E_)      (2006/04 – /)
VW CRAFTER 30-50 Platform/Chassis (2F_)      (2006/04 – /)
Mercedes-Benz SPRINTER 3-t Bus (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 3-t Box (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 3-t Platform/Chassis (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 3,5-t Bus (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 3,5-t Box (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 3,5-t Platform/Chassis (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 5-t Box (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 5-t Platform/Chassis (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 4,6-t Box (906)      (2006/06 – /)
Mercedes-Benz SPRINTER 4,6-t Platform/Chassis (906)      (2006/06 – /)



Calipers. Calipers. And more calipers.

We specialize in calipers. We re-manufacture already used calipers and manufacture new ones. In both cases, we supply calipers which match or exceed the quality of the originals. When choosing materials, we pursue achieving a durability which exceeds the normal standard. By way of example, we use brass bushings instead of a cheaper alternative. We use hard chrome-plated pistons.


  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

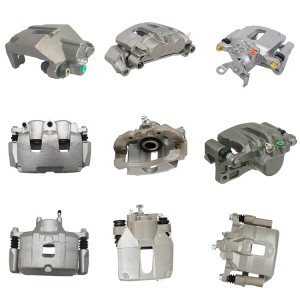

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.

    20211030165742
