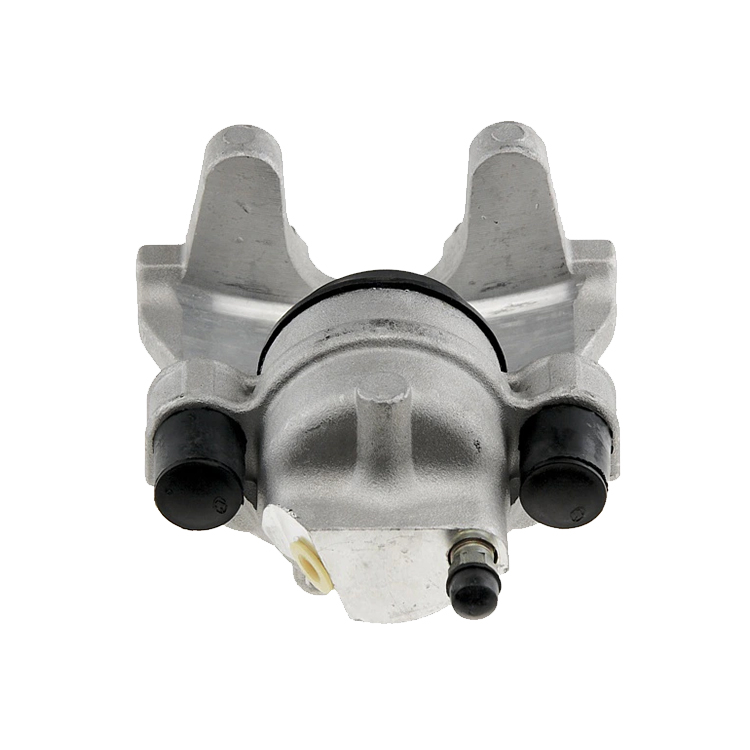

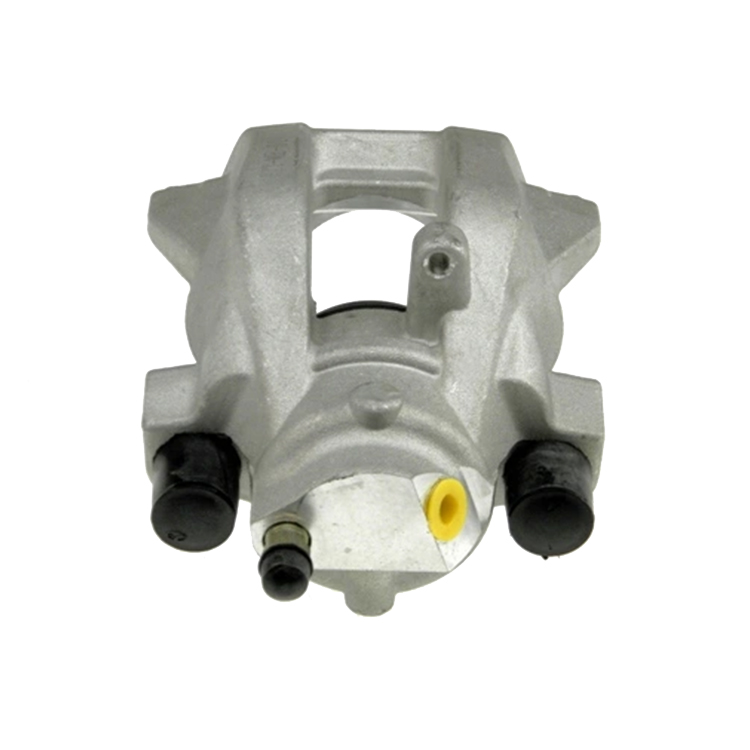

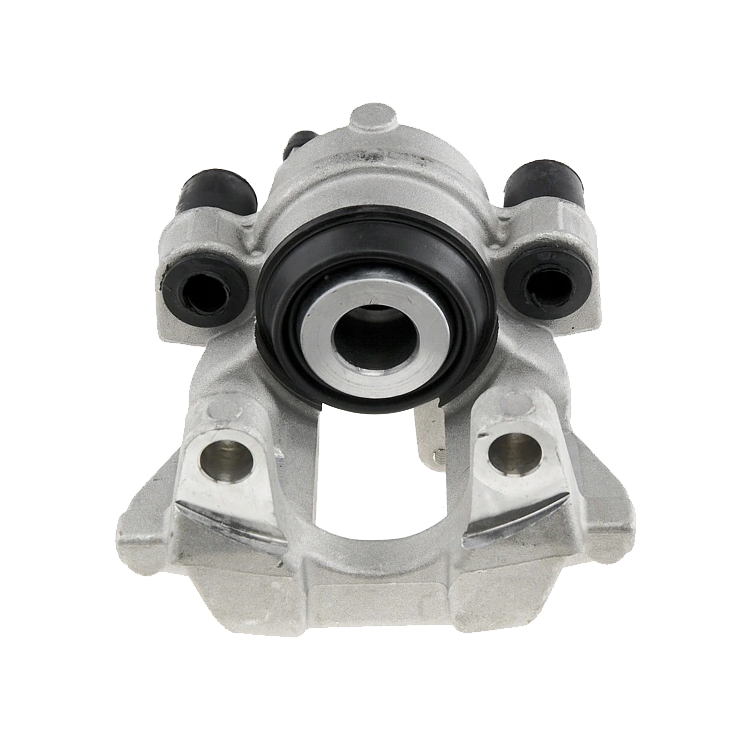

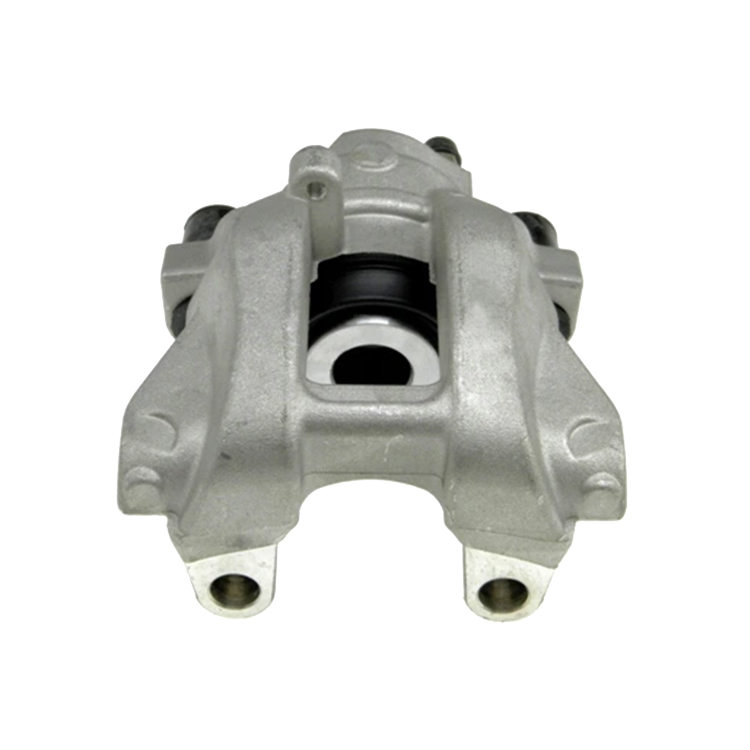

Mercedes-Benz Brake Caliper 24202583 0024202583 A0024202583 343822
Reference No.
|
ATE |
11.9426-9989.2 |
|
BENDIX |
694965B |
|
BOSCH |
0 986 134 086 |
|
Brake ENGINEERING |
CA2360 |
|
BREMBO |
F 50 218 |
|
BUDWEG CALIPER |
343822 |
|
CARDONE |
385826 |
|
DELCO REMY |
DC73822 |
Part List
| 204221 (REPAIR KIT) |
| 234231 (PISTON) |
| 184221 (SEAL, PISTON) |
| 169200 (GUIDE SLEEVE KIT) |
Compatible Applications
| Mercedes-Benz SL (R230) (2001/10 – 2012/01) |
| Mercedes-Benz E-CLASS Saloon (W211) (2002/03 – 2009/03) |
| Mercedes-Benz E-CLASS T-Model (S211) (2003/03 – 2009/07) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
