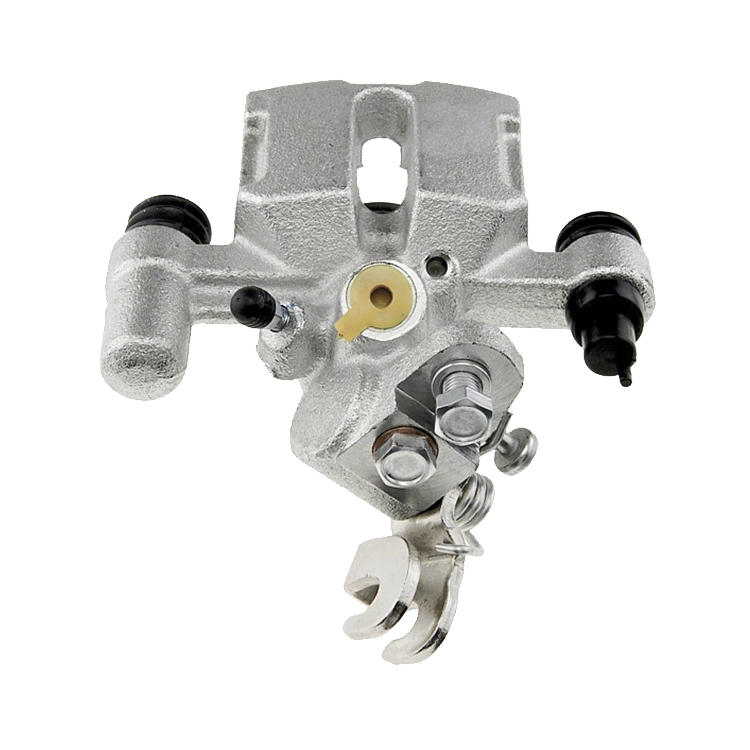

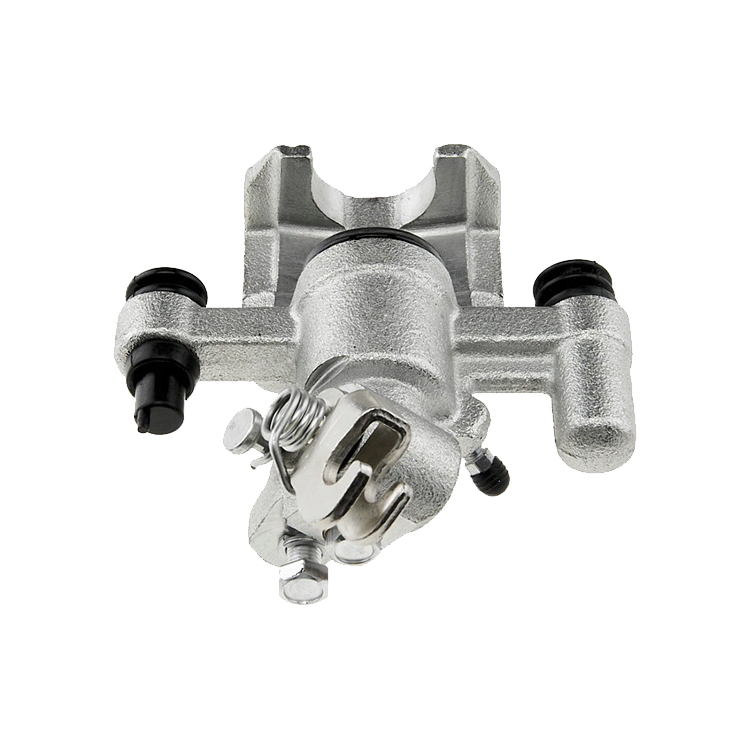

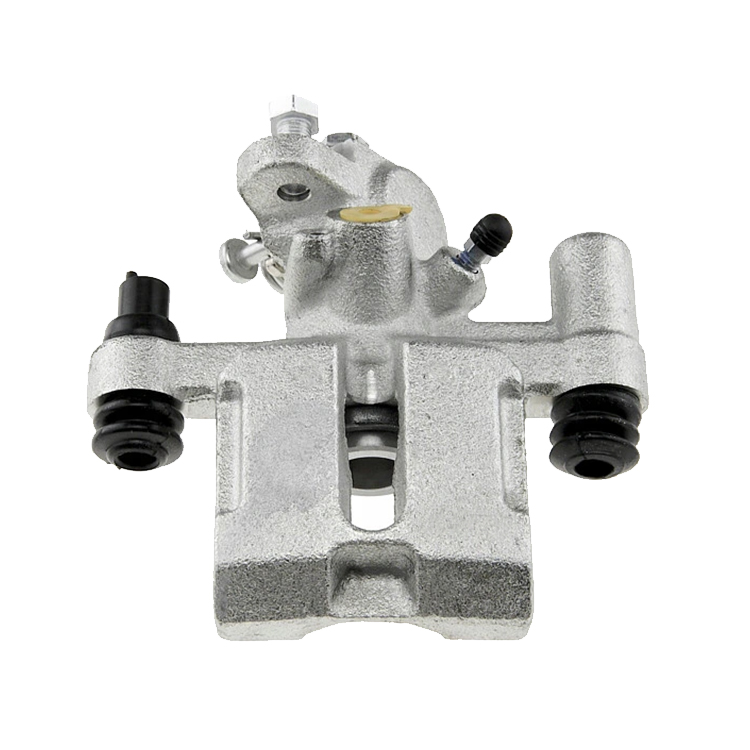

MAZDA Brake Caliper 5137670AB 5137670AA K05137670AB K05137670AA 342758
Reference No.
A.B.S. | 727121 |
BUDWEG CALIPER | 342758 |
TRW | BHN1106E |
BOSCH | 0986134060 |
Part List
PISTON |
233206 |
REPAIR KIT |
203207 |
GUIDE SLEEVE KIT |
169229 |
SEAL, PISTON |
183207 |
Compatible Applications
MAZDA MX-5 (NA) (1989/09 – 1998/04) |
MAZDA MX-5 Mk II (NB) (1998/01 – 2005/10) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
