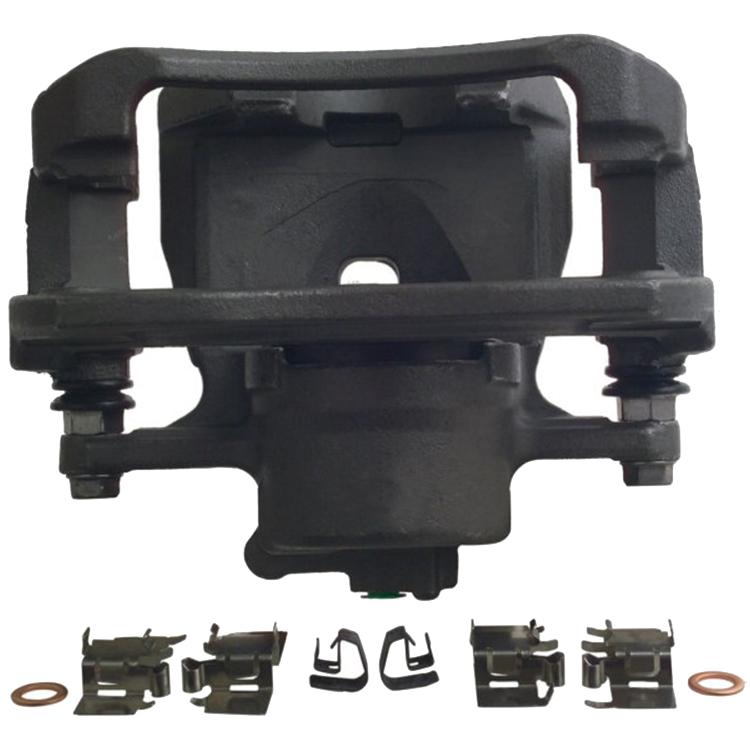

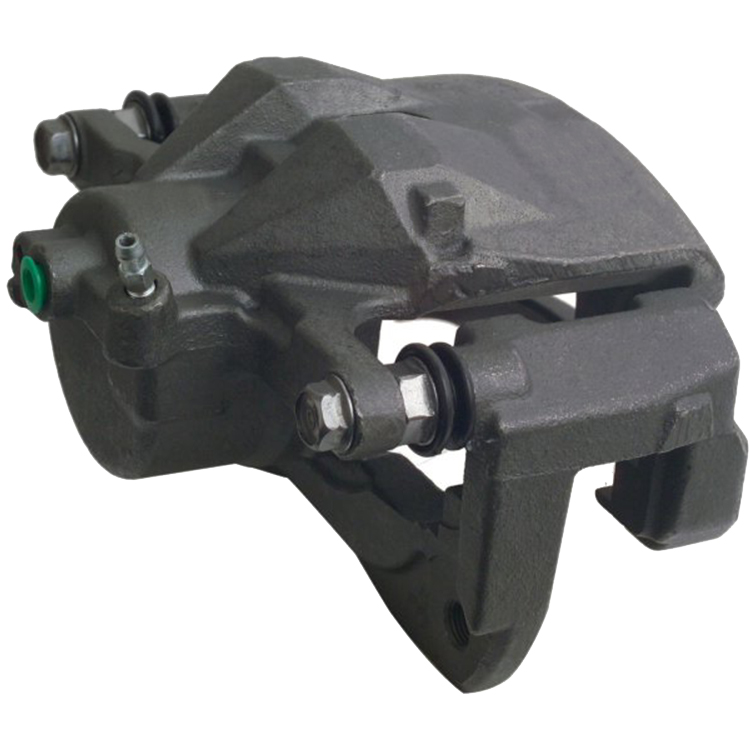

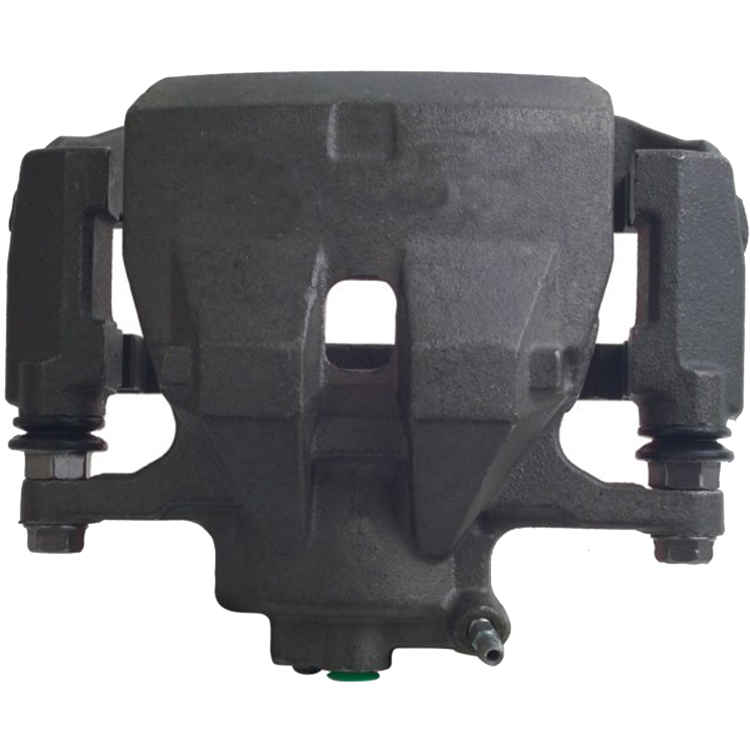

Brake Caliper 4783033211 4772106220 4772133340 4773006220 4773007071 4773033340 19B3129 for Lexus Toyota
Interchanges No.
ER1731KB ABSCO |
18FR12646 AC-DELCO |
18FR2598 AC-DELCO |
SL20154 AUTOLINE |
99-01694B BBB INDUSTRIES |
077-1896S BECK/ARNLEY |
19-B3129 |
19B3129 |
10-04566-1 PROMECANIX |
10-06236-1 PROMECANIX |
FRC11934 RAYBESTOS |
FRC11936 RAYBESTOS |
FRC12646 RAYBESTOS |
CRB140206 WAGNER |
99-01694B WILSON |
SC5504 DNS |
109349S UCX |
Compatible Applications
Lexus ES300h 2013-2018 Front Right |
Lexus ES350 2007-2018 Front Right |
Toyota Avalon 2008-2018 Front Right |
Toyota Camry 2007-2017 Front Right |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
