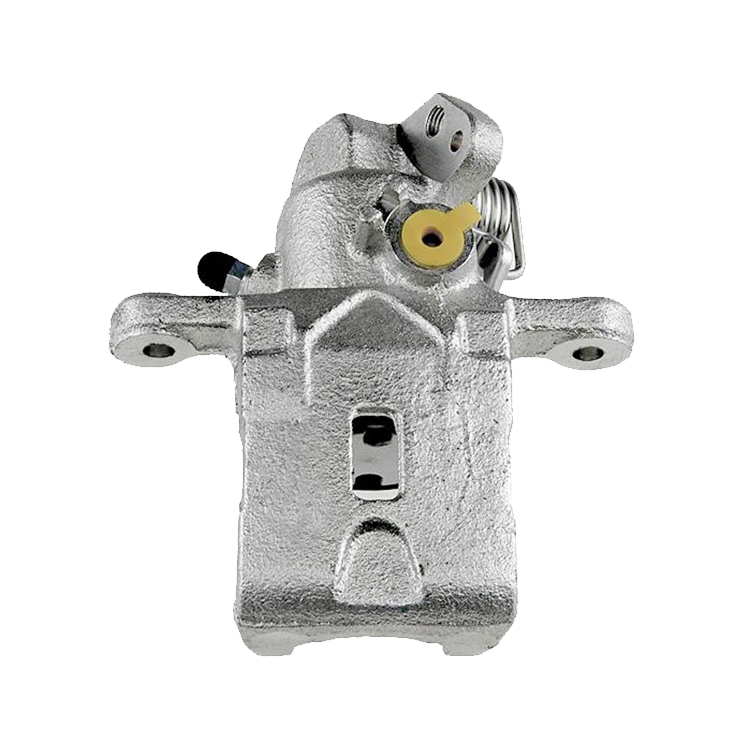

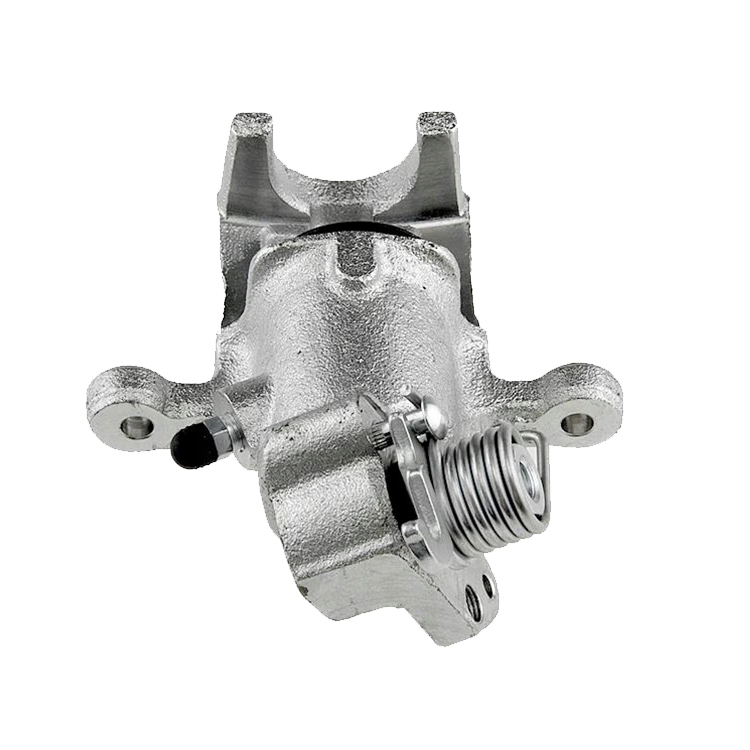

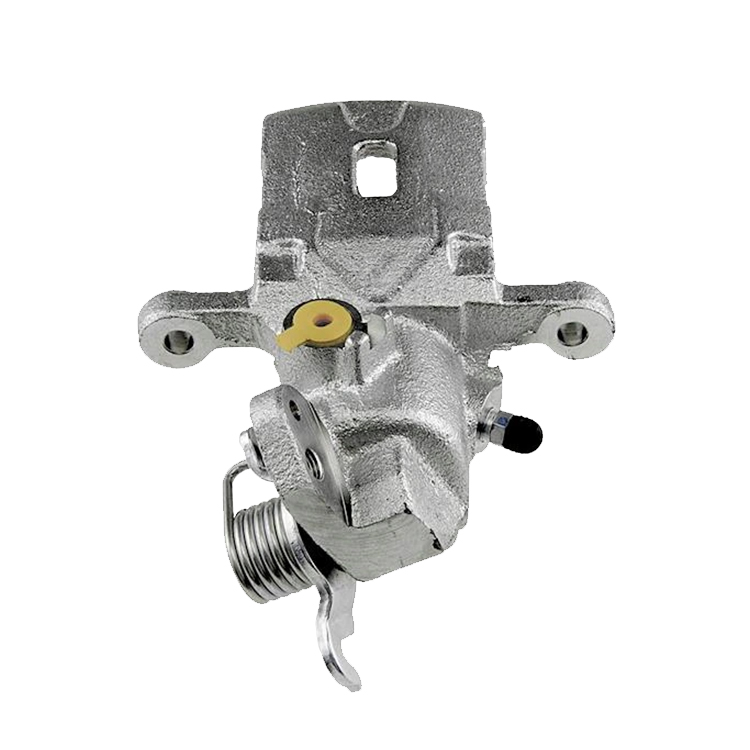

Brake Caliper 582302F200 5832029A10 5832029A20 342645 for KIA HYUNDAI

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 10

Piston Diameter [mm] 34

OE Number 58230-2F200 58320-29A10 58320-29A20


Product Detail

Company Profile

Product Tags

Reference No.

A.B.S. 729312
BUDWEG CALIPER 342645
TRW BHQ202E
BOSCH 0986474083
Brake ENGINEERING CA1702R

Part List

REPAIR KIT

D41890C

PISTON

233416

REPAIR KIT

203435

GUIDE SLEEVE KIT

169106

SEAL, PISTON

183435

Compatible Applications

KIA CERATO Saloon (LD)      (2004/04 – /)
KIA CERATO (LD)      (2004/03 – /)
HYUNDAI LANTRA II Wagon (J-2)      (1996/02 – 2000/10)
HYUNDAI TIBURON (RD)      (1996/06 – 2002/04)
HYUNDAI LANTRA Mk II (J-2)      (1995/06 – 2000/10)

Assembling:

1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
