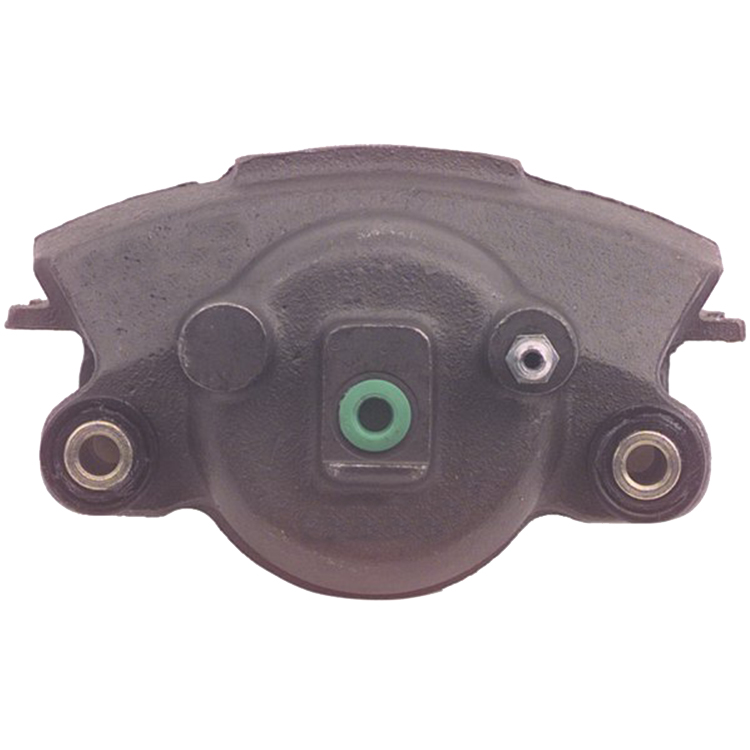

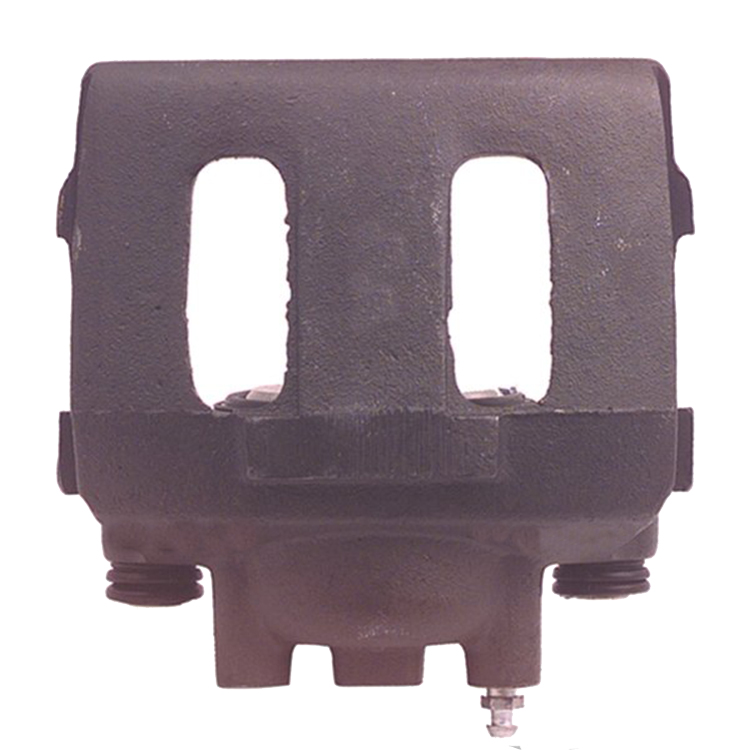

Jeep Brake Caliper 5252610 5252985 184340S
Interchanges No.
| ER104K ABSCO |
| 18FR984 AC-DELCO |
| SL1370 AUTOLINE |
| 97-17647B BBB INDUSTRIES |
| 18-4340 |
| 18-4340S |
| 184340S |
| SLC336 FENCO |
| 242-1012 NAPA / RAYLOC |
| 11-20433-1 PROMECANIX |
| FRC10186 RAYBESTOS |
| CR123599 WAGNER |
| 97-17647B WILSON |
| SC0411 DNS |
Compatible Applications
| Jeep Cherokee 1990-2001 Front Left |
| Jeep Comanche 1990-1992 Front Left |
| Jeep Grand Cherokee 1993-1998 Front Left |
| Jeep Grand Wagoneer 1993 Front Left |
| Jeep TJ 1997-2006 Front Left |
| Jeep Wagoneer 1990 Front Left |
| Jeep Wrangler 1990-1995 Front Left |
| Jeep Wrangler 1997-2006 Front Left |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
