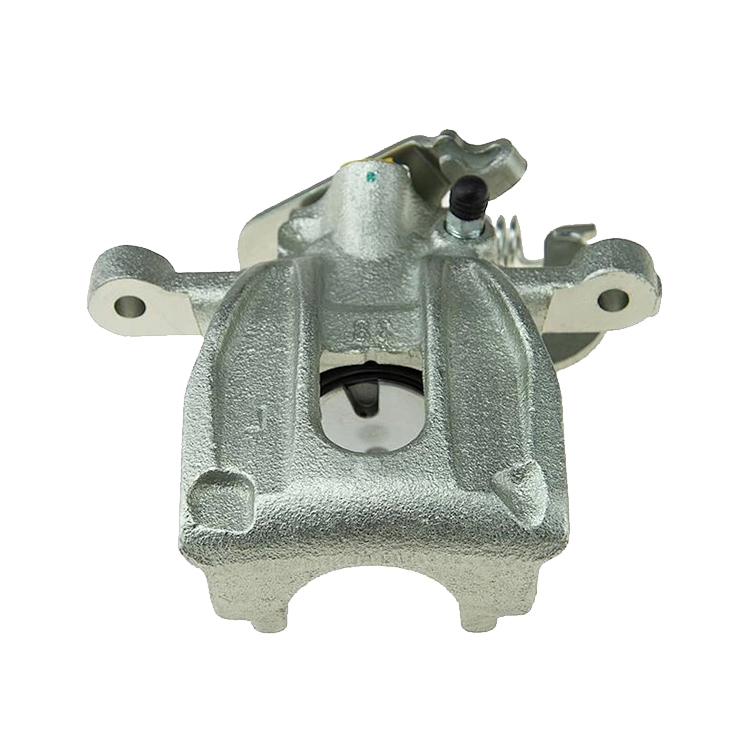

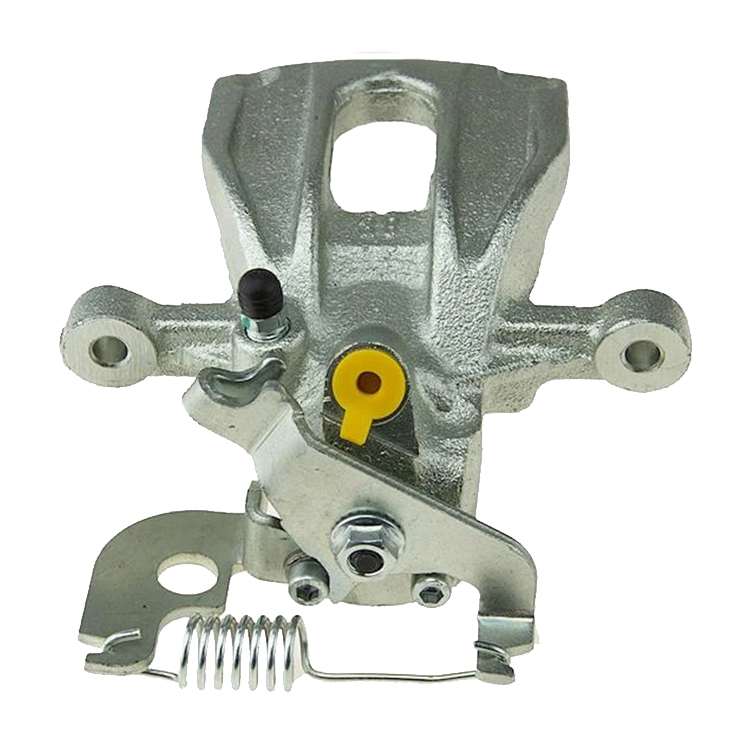

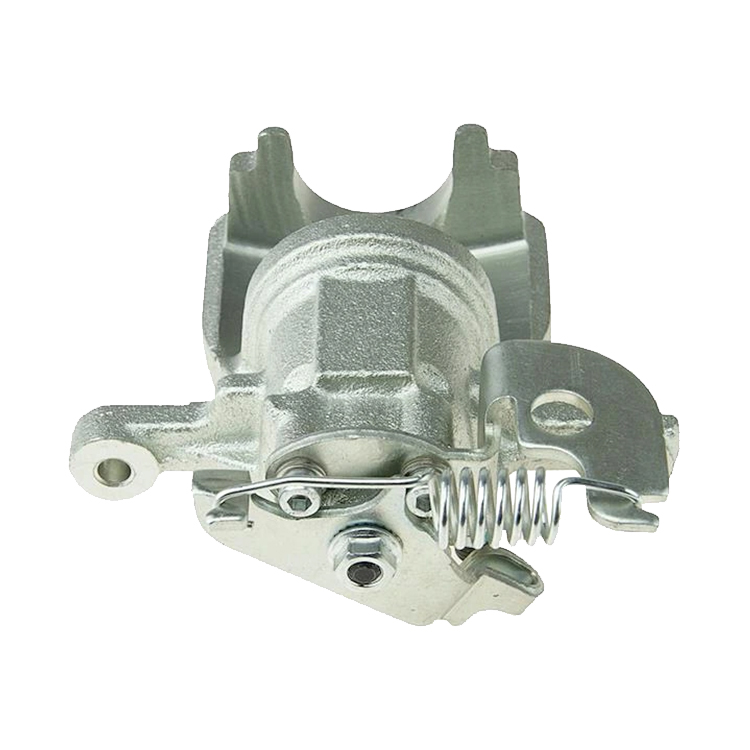

Jaguar Brake Caliper C2S38059 C2S46538 C2S38061 344337
Reference No.
BOSCH |
204205120 |
Brake ENGINEERING |
CA2620R |
BUDWEG CALIPER |
344337 |
DELCO REMY |
DC784753 |
DRI |
4204320 |
ELSTOCK |
872034 |
FTE |
RX3898142A0 |
HELLA PAGID |
8AC355383221 |
Part List
203857 (REPAIR KIT) |
233850 (PISTON) |
183857 (SEAL, PISTON) |
189912 (GUIDE SLEEVE KIT) |
Compatible Applications
Jaguar X-TYPE Saloon (CF1) (2001/06 – 2009/11) |
Jaguar X-TYPE Est (2003/11 – 2009/12) |
Note:
For best results and safety, we recommend that all maintenance and repair work should be carried out by a trained technician in accordance with the guidelines issued by the vehicle manufacturer. In case of incorrect or improper installation of the product, no legal responsibility will be accepted.
Dismantling:
1. Lift the car (use a vehicle ramp if available).
2. Remove the wheels.
3. Disconnect pad wear sensor wires if fitted.
4. Untie the brake hose and use a brake pedal depressor to hold the brake pedal down to shut off the system.
5. Dismantle the brake caliper.
6. Dismantle the brake disc and brake pads if you wish to replace them.
