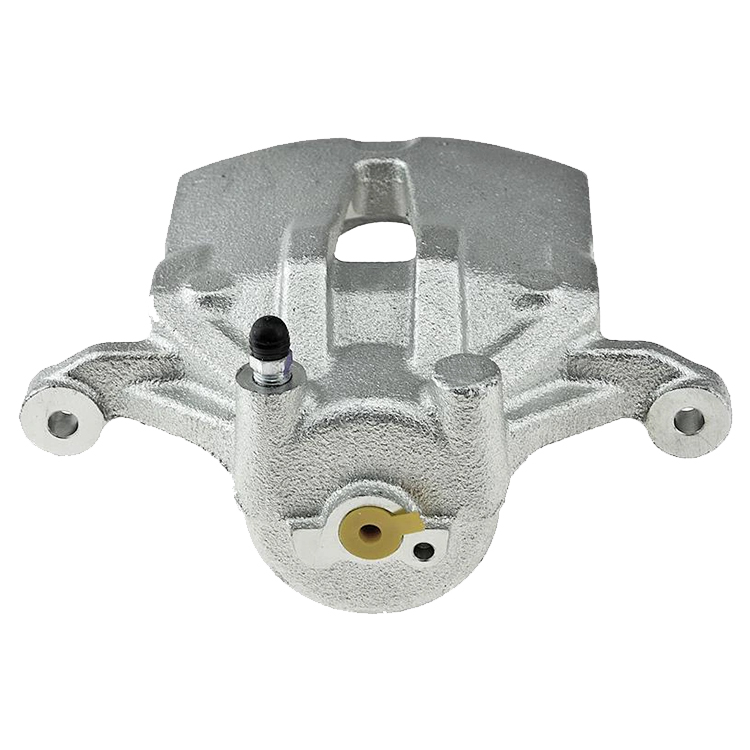

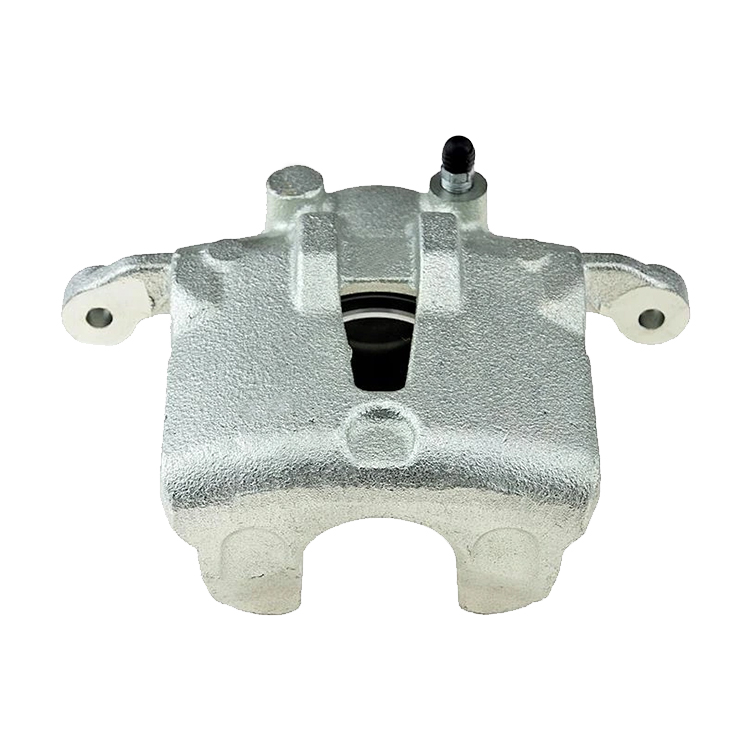

Brake Caliper 581302L500 581902LA00 581902LA10 344517 for HYUNDAI i30 CW FD
Reference No.
| Brake ENGINEERING CA3197R |
| BREMBO F 30 191 |
| BUDWEG CALIPER 344517 |
| DELCO REMY DC84517 |
| DRI 3222520 |
| ELSTOCK 83-2252 |
| HERTH+BUSS JAKOPARTS J3220532 |
| NK 213554 |
| sbs 1301213554 |
Part List
| 205751 (REPAIR KIT) |
| 232144 (PISTON) |
| 185751 (SEAL, PISTON) |
| 169111 (GUIDE SLEEVE KIT) |
Compatible Applications
| HYUNDAI i30 (FD) (2007/10 – 2011/11) |
| HYUNDAI i30 CW (FD) (2007/10 – 2012/06) |
Dismantling:
1. Lift the car (use a vehicle ramp if available).
2. Remove the wheels.
3. Disconnect pad wear sensor wires if fitted.
4. Untie the brake hose and use a brake pedal depressor to hold the brake pedal down to shut off the system.
5. Dismantle the brake caliper.
6. Dismantle the brake disc and brake pads if you wish to replace them.
