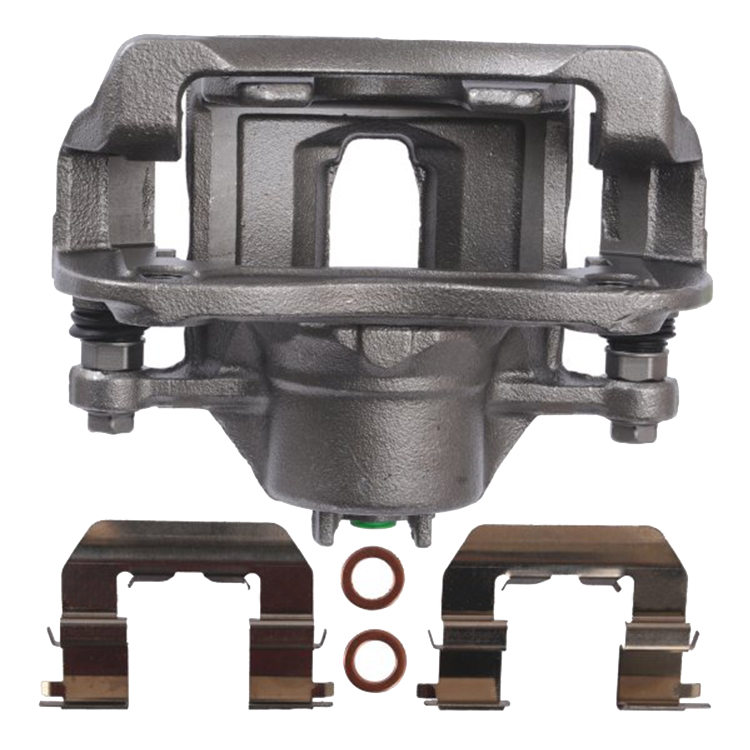

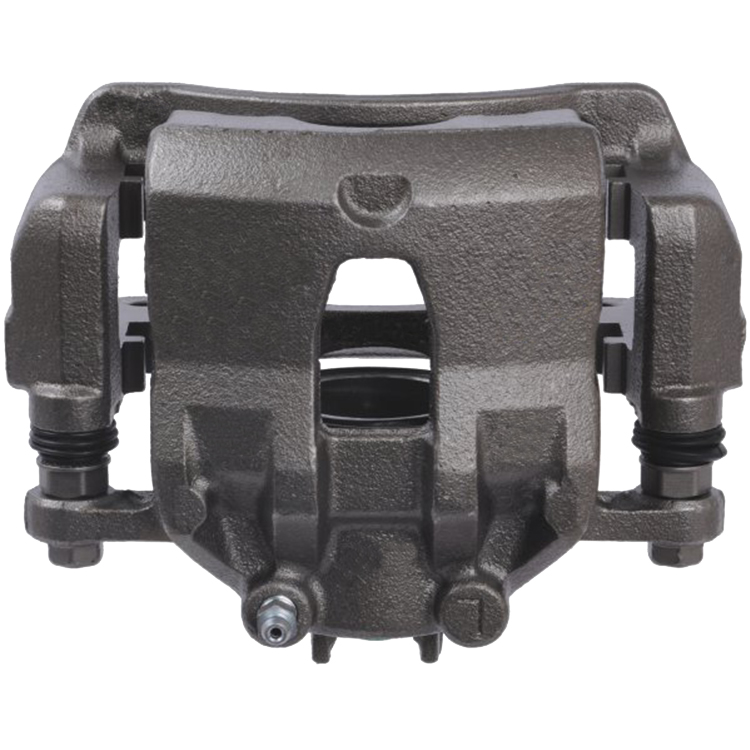

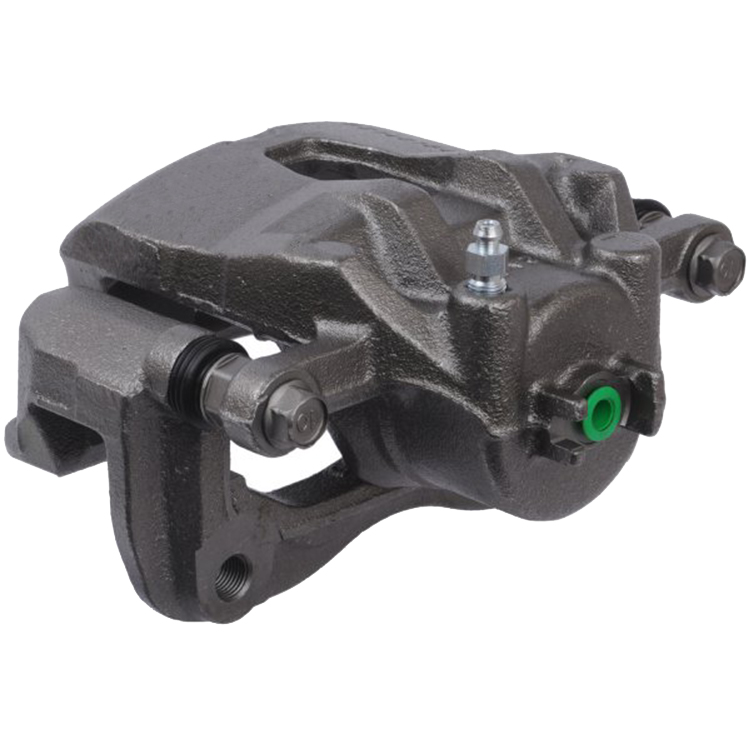

Brake Caliper 581101W350 581801RA00 581801WA05 581101W050 581104L000 19B6794 for Hyundai Accent Kia Rio
Interchanges No.
| ER2304KB ABSCO |
| 18FR12543 AC-DELCO |
| SLB20451 AUTOLINE |
| 99-00871A BBB INDUSTRIES |
| 19-B6794 |
| 19B6794 |
| 581101R000 |
| 581101R000 KIA / KPW |
| 16A5004 MANDO PLUS |
| 16A5192 MANDO PLUS |
| BC186794 MPA |
| 10-02257-1 PROMECANIX |
| FRC12543 RAYBESTOS |
| CRB606794 WAGNER |
| 99-00871A WILSON |
| SC5103 DNS |
| 106431S UCX |
Compatible Applications
| Hyundai Accent 2012-2017 Front Left |
| Kia Rio 2012-2020 Front Left |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
