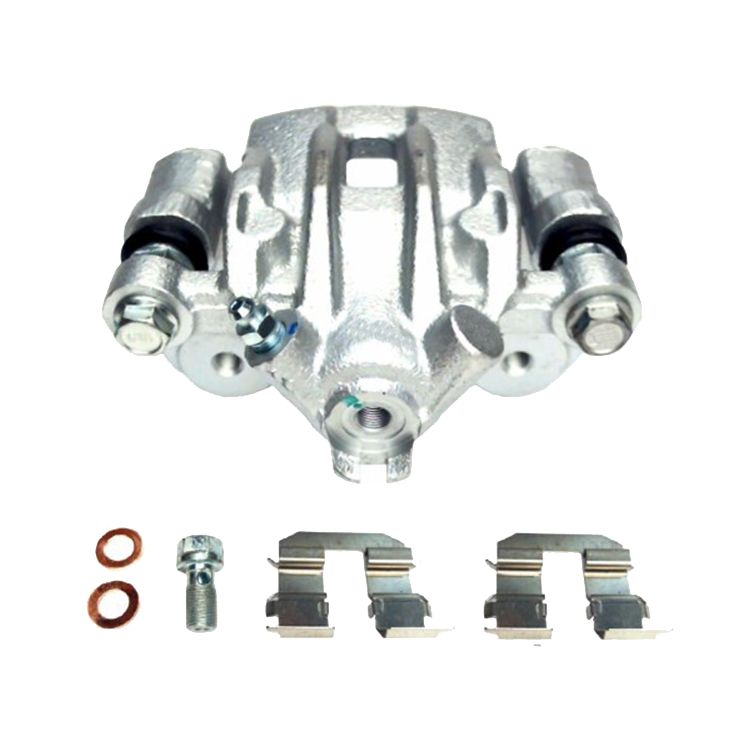

Brake Caliper 19B3477A 583102LA00 for Hyundai Elantra

Bleeder Port Size:  M8x1.0

Product Packing Weight:  5.75 lbs

Piston Size (OD) (mm) : 30.9118

Brake Caliper Finish: Oil Emulsion

Package Contents: Caliper; Bracket; Hardware Kit

Piston Material: STEEL

OE Number:  58310-2LA00 19B3477A 583102LA00


Product Detail

Company Profile

Product Tags

Interchanges No.

ER1176KB ABSCO
18FR12536 AC-DELCO
SL20233 AUTOLINE
99-00848B BBB INDUSTRIES
077-1955S BECK/ARNLEY
19-B3477A
19B3477A
583102LA00
10-03621A-1 PROMECANIX
FRC12536 RAYBESTOS
CRB603477A WAGNER
99-00848B WILSON
SC2433 DNS



Compatible Applications

Hyundai Elantra 2009-2012 Rear Left



WHY CHOOSE BIT?

We are not the cheapest choice in the market but is the professional supplier.

Quality comes at a price. And because we do not compromise, we do not aim to be the cheapest in the market. You can take pleasure from that. Because if you want to sell quality products, using our calipers will ensure that you achieve a greater turnover and greater earnings per unit. At the same time, you have more satisfied customers.



Assembling:

1. Install the brake disc and brake pads if necessary.

2. Install the new brake caliper and tighten bolts to the specified torque.

3. Tighten the brake hose and then remove the pressure from the brake pedal

4. Make sure that all movable parts are lubricated and glide easily.

5. Re-connect the pad wear sensor wires if fitted.

6. Bleed the brake system by following the vehicle manufacturer’s guidelines.

7. Mount the wheels.

8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.

9. Check the brake fluid and replenish if necessary. Follow the operating instructions.

10. Check that there is no leakage of brake fluid.

11. Test the brakes on a brake test stand and carry out a test run.
