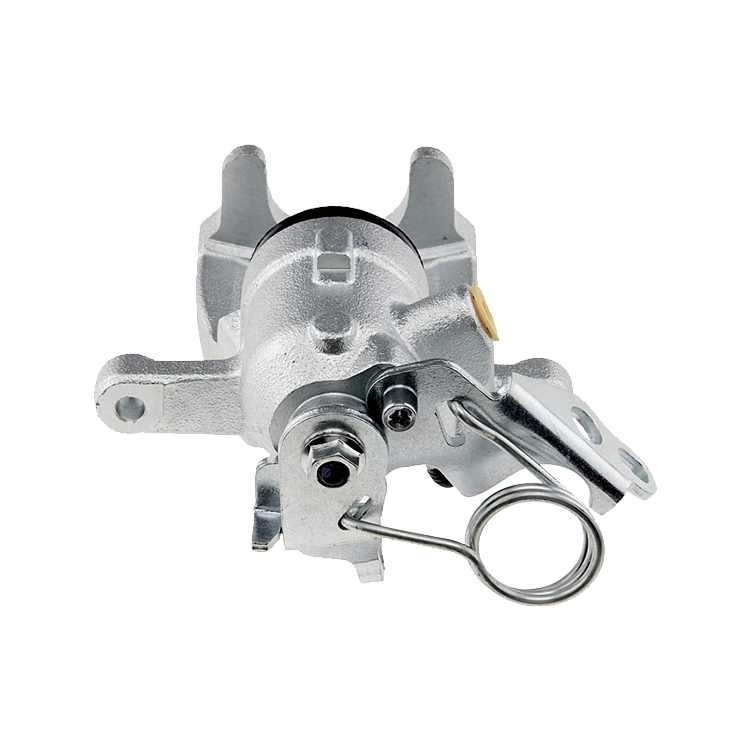

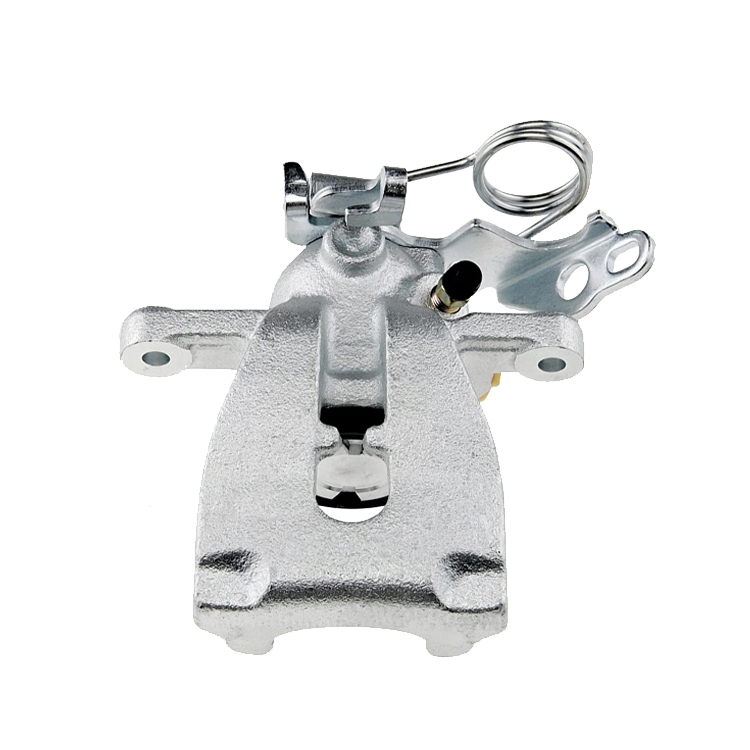

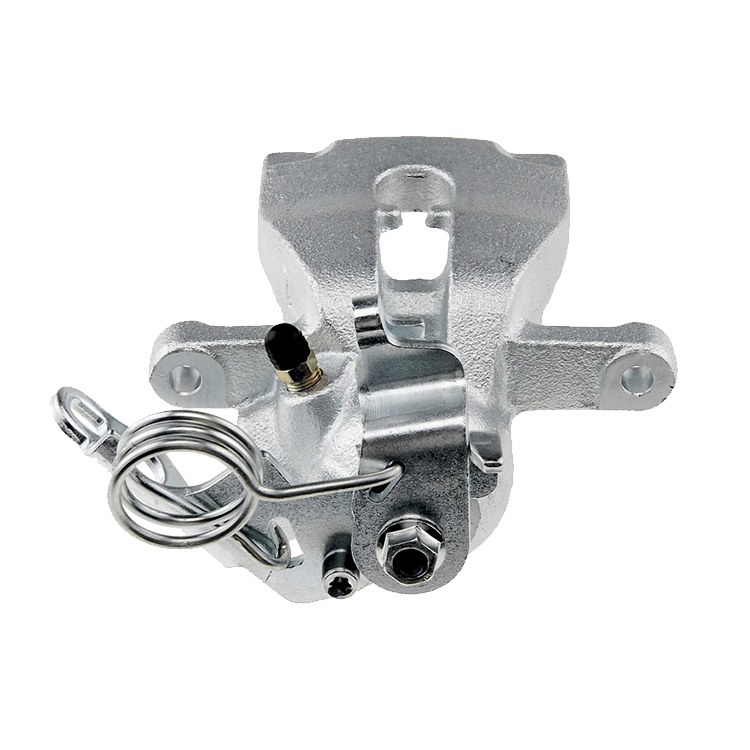

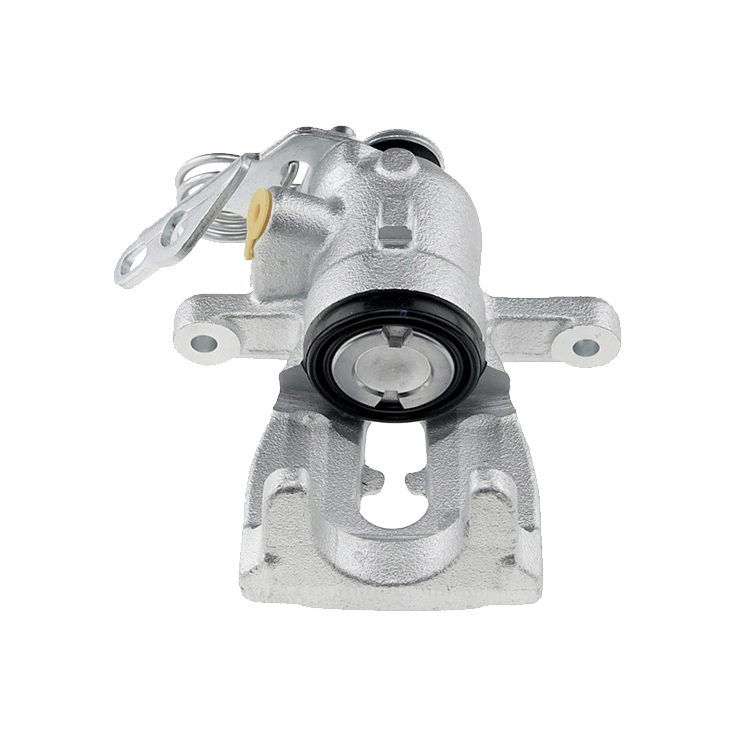

FORD Brake Caliper 1537001 1465776 1439860 1460302 1502337 1738987 1426838 343977 343723
Reference No.
| A.B.S. | 523702 |
| BUDWEG CALIPER | 343977 |
| TRW | BHN1018E/ BHN965 |
| BOSCH | 0986135430 |
| Brake ENGINEERING | CA2848R |
Part List
| REPAIR KIT |
D4846C |
| PISTON |
233815 |
| REPAIR KIT |
203843 |
| SEAL, PISTON |
183843 |
Compatible Applications
| FORD FOCUS II (DA_) (2004/11 – /) |
| FORD GALAXY (WA6) (2006/05 – 2015/06) |
| FORD S-MAX (WA6) (2006/05 – /) |
| FORD MONDEO IV Saloon (BA7) (2007/03 – /) |
| FORD MONDEO IV (BA7) (2007/03 – /) |
| FORD MONDEO IV Turnier (BA7) (2007/03 – /) |
| FORD KUGA I (2008/03 – /) |
Assembling
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
