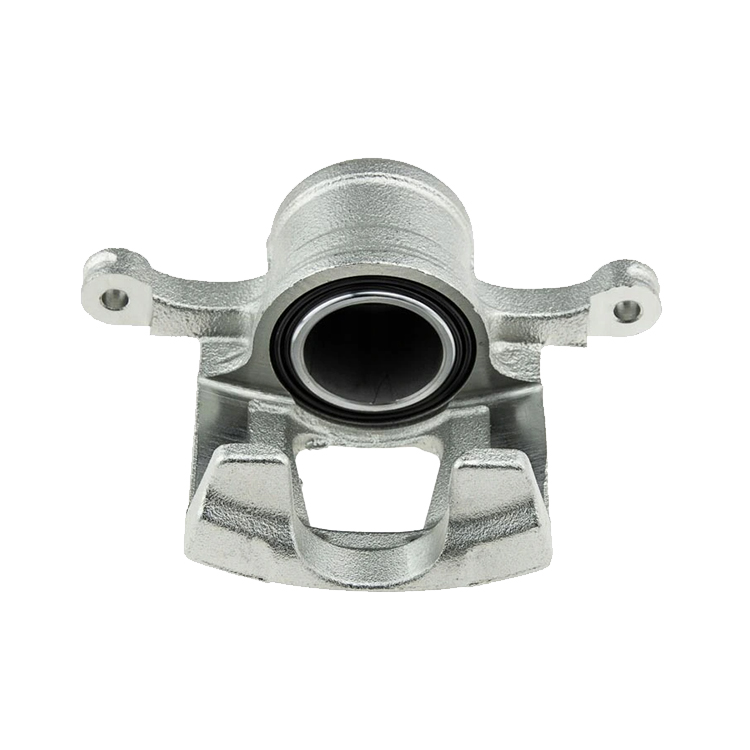

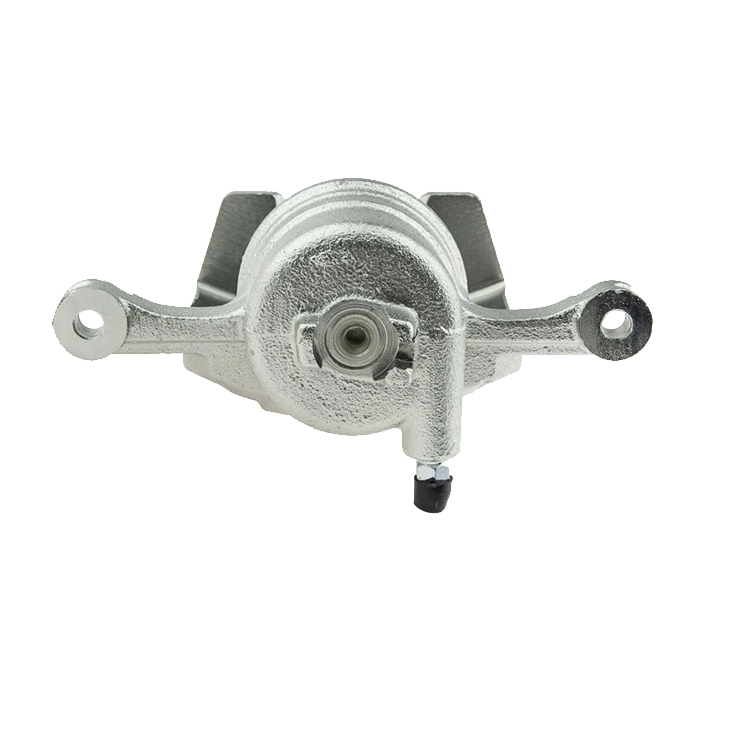

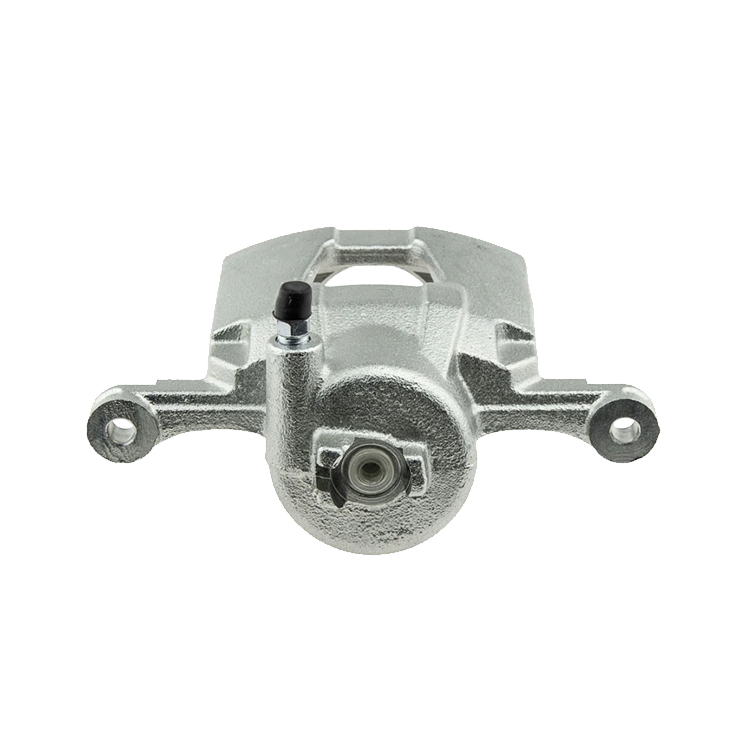

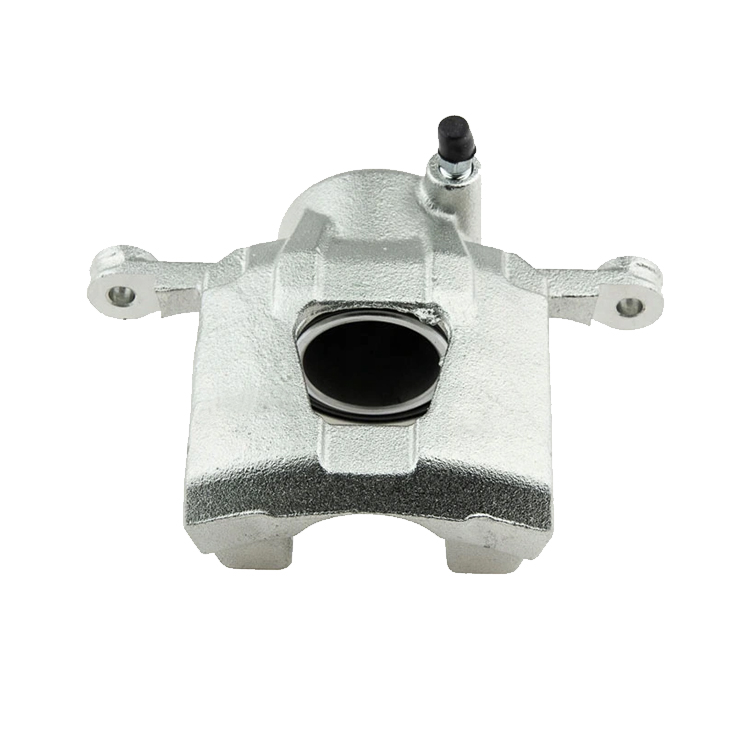

Brake Caliper 96534637 94566890 for DAEWOO Chevrolet
Reference No.
A.B.S. | 729741 |
BUDWEG CALIPER | 343380 |
TRW | BHS1172E |
Brake ENGINEERING | CA2541 |
Part List
REPAIR KIT |
D41954C |
PISTON |
235209 |
REPAIR KIT |
205209 |
GUIDE SLEEVE KIT |
169128 |
SEAL, PISTON |
185209 |
Compatible Applications
DAEWOO KALOS (KLAS) (2002/09 - /) |
DAEWOO KALOS Saloon (KLAS) (2002/11 - 2004/12) |
Chevrolet KALOS (2005/03 - /) |
Chevrolet KALOS Saloon (2005/03 - /) |
Chevrolet LOVA Saloon (T250, T255) (2005/05 - /) |
Chevrolet LOVA Hatchback (T250, T255) (2007/01 - /) |
Chevrolet AVEO Hatchback (T200) (2003/02 - 2008/05) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
