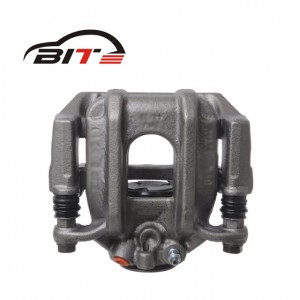

Brake Caliper 34116776783 for BMW X5 X6
Reference No.
| Brake ENGINEERING CA2761 |
| BREMBO F 06 188 |
| BUDWEG CALIPER 344104 |
| DELCO REMY DC84104 |
| DRI 3112220 |
| ELSTOCK 82-2122 |
| NK 2115235 |
| sbs 13012115235 |
| TRW BHS1062E |
Part List
| 206023 (REPAIR KIT) |
| 236057 (PISTON) |
| 186023 (SEAL, PISTON) |
| 169200 (GUIDE SLEEVE KIT) |
| 189974 (GUIDE SLEEVE KIT) |
Compatible Applications
| BMW X5 (E70) (2007/02 - 2013/06) |
| BMW X6 (E71, E72) (2008/05 - /) |
| BMW X5 (F15, F85) (2013/07 - /) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
