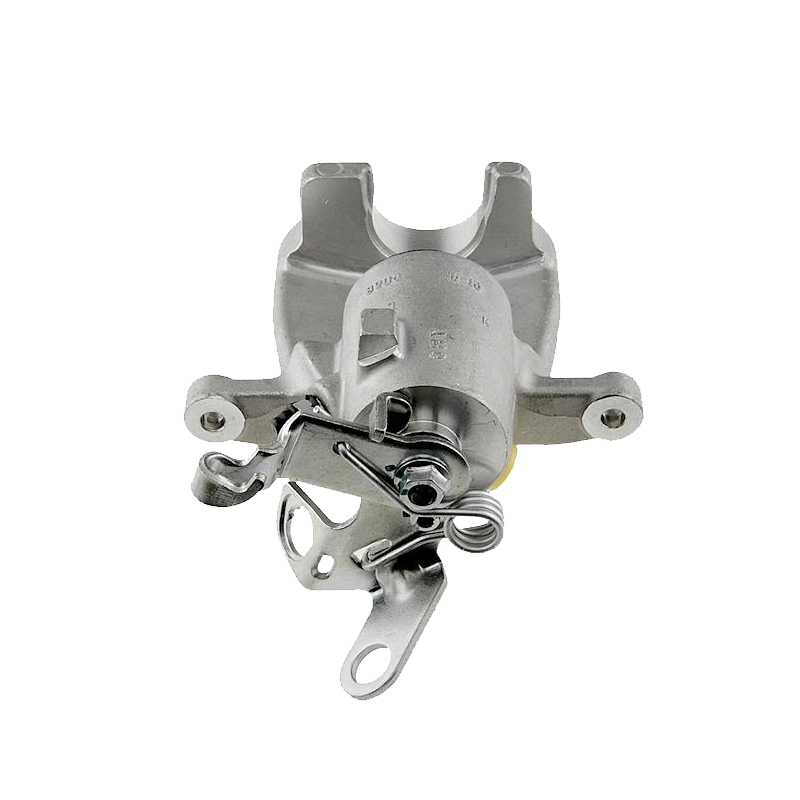

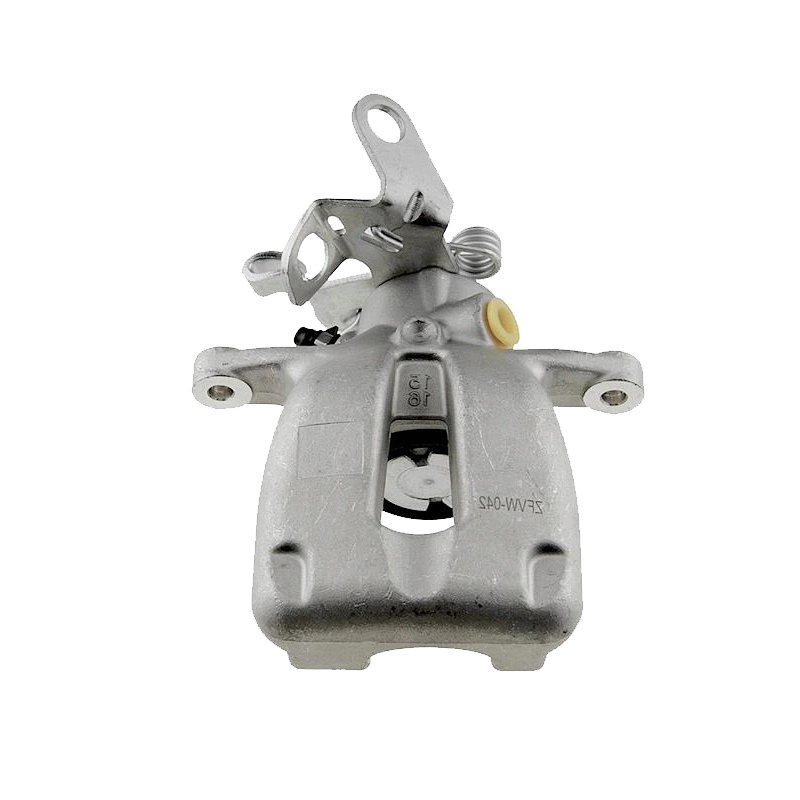

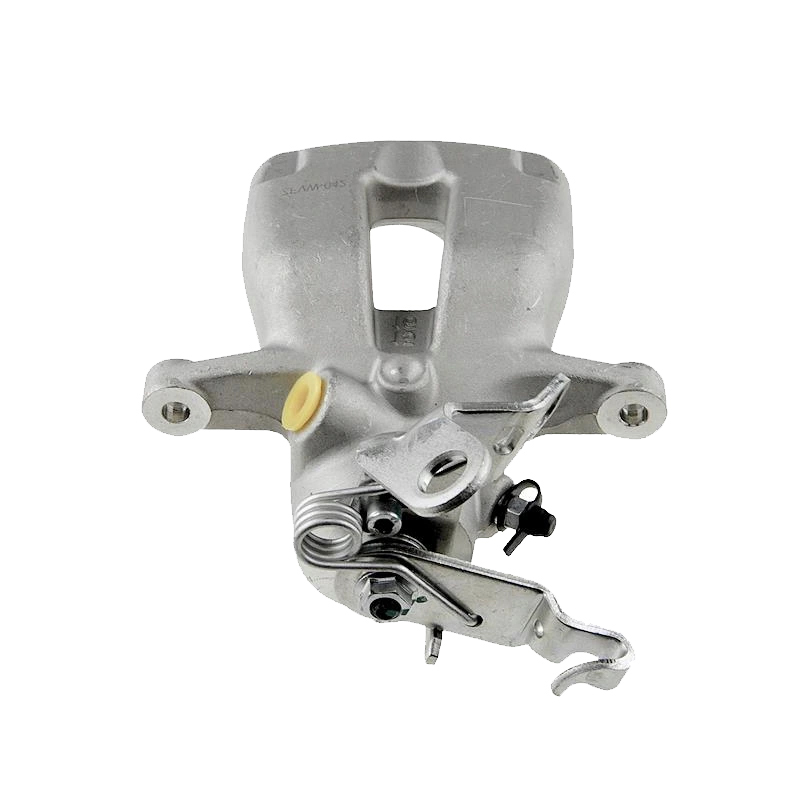

Brake Caliper 1K0615424K 8J0615424B 1K0615424B 1K0615424G 8J0615424E for AUDI VW SKODA

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 22

Piston Diameter [mm] 41

OE Number 1K0615424K 8J0615424B 1K0615424B 1K0615424G

8J0615424E


Product Detail

Company Profile

Product Tags

WENZHOU BIT AUTOMOBILE PARTS CO., LTD

Address

No.2 Building of Jiujie zone, Kunyang Town,Pingyang County, Wenzhou City, Zhejiang

Phone

+86 18857856585
+86 15088970715

Hours

Monday-Sunday: 9am to 12pm

Product Description

Brake Caliper

The brake caliper plays a central role in a disc-brake system and has two functions. First, it acts either as a bracket to support the brake pads on either side of the rotor or to support the caliper bracket itself — there are other designs, but these are the two most common. Second, it uses pistons to convert pressure exerted on the brake fluid by the master cylinder into friction on the rotor.

Reference No.

A.B.S. 522942
BUDWEG CALIPER 343893
TRW BHS1025/ BHS1025E/ BHS1029E/ BHS1029/ BHS939/BHS939E
ATE 24.3417-1712.7
BOSCH 0986135297
Brake ENGINEERING CA2856R/CA3023R

Part List

REPAIR KIT

D41124C

PISTON

234101

REPAIR KIT

204101

SEAL, PISTON

184101

Compatible Applications

AUDI A3 (8P1)      (2003/05 - 2012/08)
AUDI A3 Sportback (8PA)      (2004/09 - 2013/03)
AUDI TT (8J3)      (2006/08 - 2014/06)
AUDI TT Roadster (8J9)      (2007/03 - 2014/06)
VW RABBIT V (1K1)      (2003/10 - 2009/02)
VW EOS (1F7, 1F8)      (2006/03 - /)
VW SCIROCCO (137, 138)      (2008/05 - /)
VW GOLF VI (5K1)      (2008/10 - 2013/11)
VW GOLF VI Convertible (517)      (2011/03 - /)
SKODA SUPERB (3T4)      (2008/03 - 2015/05)
SKODA SUPERB Est (3T5)      (2009/10 - 2015/05)

What You Can Get from Our Factory

BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.

We have complete parts for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

By the way, we also have wide range catalogs for European, American, Japanese and Korean cars. Such as Audi, VW, BMW, Dodge, Chevy, Toyota, honda, KIA, Hyundai and so on. Find something what you want in our company.

微信图片_20211030153016

What is Our Production

We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.

微信图片_20211030165742

How disc brakes work

When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

brake-caliper3

Certificate

Quality and value is a common goal we share as a company. We are committed to face any challenges and see this as an opportunity to offer more novel solutions.

This led to many firsts in automotive innovations, as well as many design patents based on the futuristic approach. As a manufacturer of brake calipers, you can rely on us to bring a revolutionary brake caliper product line. With the following advantages, you can be confident that you are getting the best and finest service in the market. In order to assure you our quality, we approved the IATF 16949 Certificate in 2016.

sred
