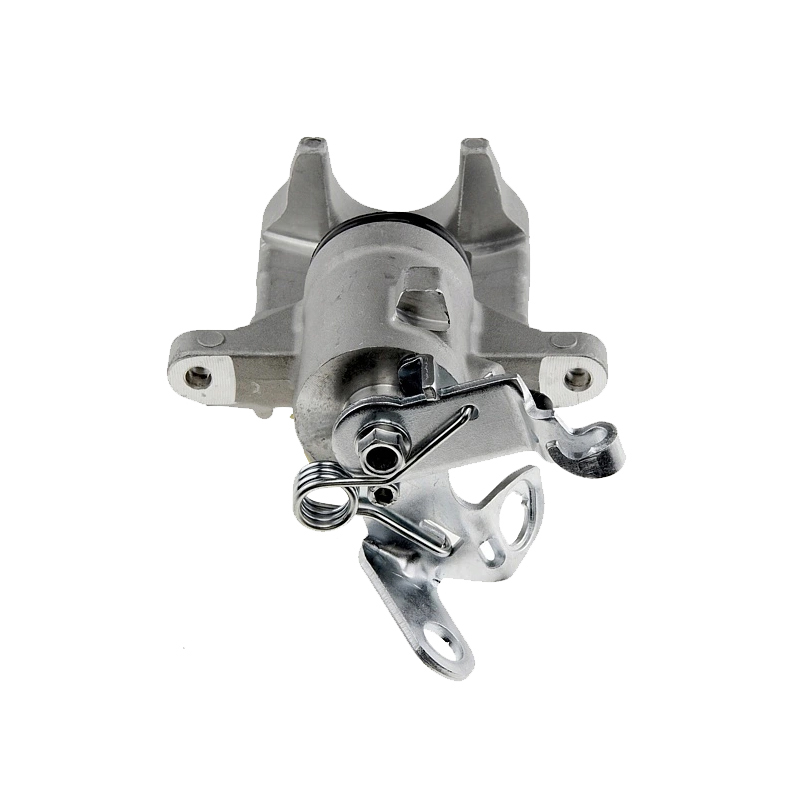

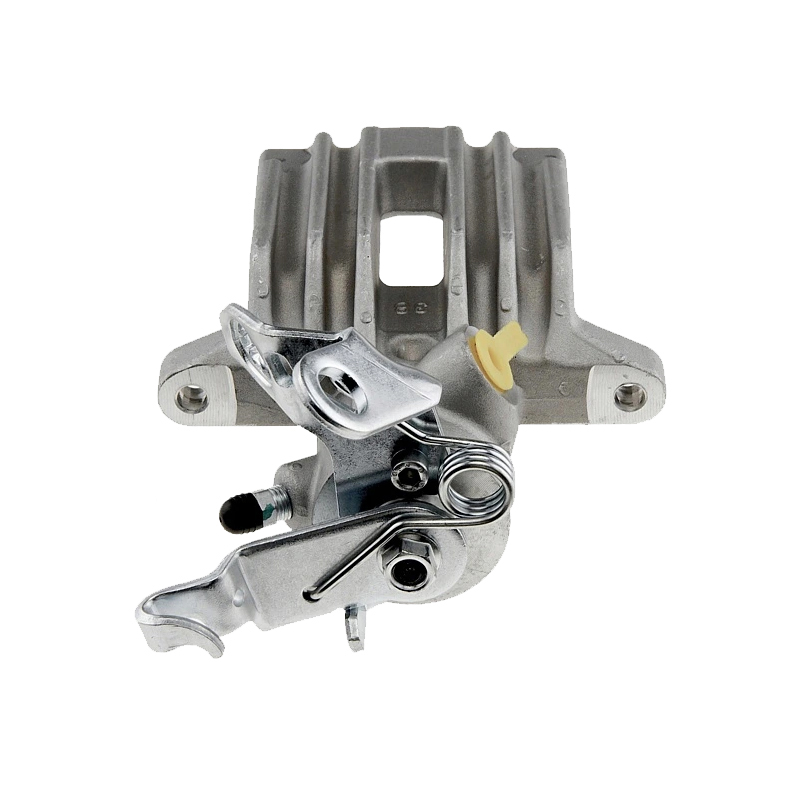

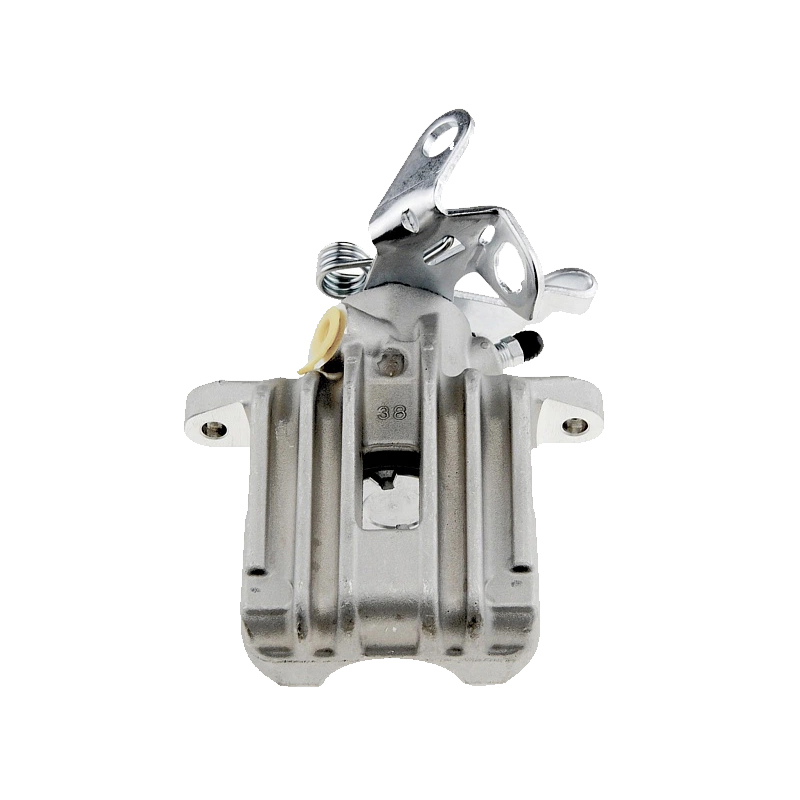

Brake Caliper 1K0615423A 1K0615423D 1K0615423J 343644 for Audi A3 VW Golf Skoda Octavia Seat Altea

Brake Caliper Type Caliper (1 piston)

Brake Disc Thickness [mm] 10

Piston Diameter [mm] 38

For Brake Disc Diameter [mm] 38

OE Number 1K0615423A 1K0615423D 1K0615423J


Product Detail

Company Profile

Product Tags

WENZHOU BIT AUTOMOBILE PARTS CO., LTD

Address

No.2 Building of Jiujie zone, Kunyang Town,Pingyang County, Wenzhou City, Zhejiang

Phone

+86 18857856585
+86 15088970715

Hours

Monday-Sunday: 9am to 12pm

Product Description

Reference No.

A.B.S. 520831
BUDWEG CALIPER 343644
TRW BHN317
ATE 24.3384-1755.7
BOSCH 0986473381
Brake ENGINEERING CA2576

Part List

REPAIR KIT

D4846C

PISTON

233815

REPAIR KIT

203843

GUIDE SLEEVE KIT

169135

SEAL, PISTON

183843

Compatible Applications

Audi A3 (8P1)      (2003/05 - 2012/08)
Audi A3 Sportback (8PA)      (2004/09 - 2013/03)
Audi A3 Convertible (8P7)    (2008/04 - 2013/05)
VW RABBIT V (1K1)      (2003/10 - 2009/02)
VW GOLF PLUS (5M1, 521)      (2005/01 - 2013/12)
VW EOS (1F7, 1F8)      (2006/03 - /)
VW SCIROCCO (137, 138)      (2008/05 - /)
VW GOLF VI (5K1)      (2008/10 - 2013/11)
VW JETTA VI IV (162, 163)      (2010/04 - /)
VW GOLF VI Convertible (517)      (2011/03 - /)
VW NOVO FUSCA (5C1)      (2011/04 - /)
VW BEETLE Convertible (5C7)      (2011/12 - /)
SKODA OCTAVIA (1Z3)      (2004/02 - 2013/06)
SKODA OCTAVIA Combi (1Z5)    (2004/02 - 2013/06)
SKODA YETI (5L)      (2009/05 - /)
SEAT ALTEA (5P1)      (2004/03 - /)
SEAT TOLEDO III (5P2)      (2004/04 - 2009/05)
SEAT LEON (1P1)      (2005/05 - 2012/12)
SEAT ALTEA XL (5P5, 5P8)      (2006/10 - /)

Dismantling

1. Lift the car (use a vehicle ramp if available).
2. Remove the wheels.
3. Disconnect pad wear sensor wires if fitted.
4. Untie the brake hose and use a brake pedal depressor to hold the brake pedal down to shut off the system.
5. Dismantle the brake caliper.
6. Dismantle the brake disc and brake pads if you wish to replace them.

Europe’s largest caliper program

We are specialized in brake calipers for most European series cars. Such as VW, AUDI, Mercedes-Benz, BMW and so on. If you don’t find the parts you are finding, welcome to send us inquiry or chat with us online.

Calipers. Calipers. And more calipers.

We specialize in calipers. We re-manufacture already used calipers and manufacture new ones. In both cases, we supply calipers which match or exceed the quality of the originals. When choosing materials, we pursue achieving a durability which exceeds the normal standard. By way of example, we use brass bushings instead of a cheaper alternative. We use hard chrome-plated pistons.

What You Can Get from Our Factory

BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.

We have complete parts for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

By the way, we also have wide range catalogs for European, American, Japanese and Korean cars. Such as Audi, VW, BMW, Dodge, Chevy, Toyota, honda, KIA, Hyundai and so on. Find something what you want in our company.

微信图片_20211030153016

What is Our Production

We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.

微信图片_20211030165742

How disc brakes work

When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

brake-caliper3

Certificate

Quality and value is a common goal we share as a company. We are committed to face any challenges and see this as an opportunity to offer more novel solutions.

This led to many firsts in automotive innovations, as well as many design patents based on the futuristic approach. As a manufacturer of brake calipers, you can rely on us to bring a revolutionary brake caliper product line. With the following advantages, you can be confident that you are getting the best and finest service in the market. In order to assure you our quality, we approved the IATF 16949 Certificate in 2016.
