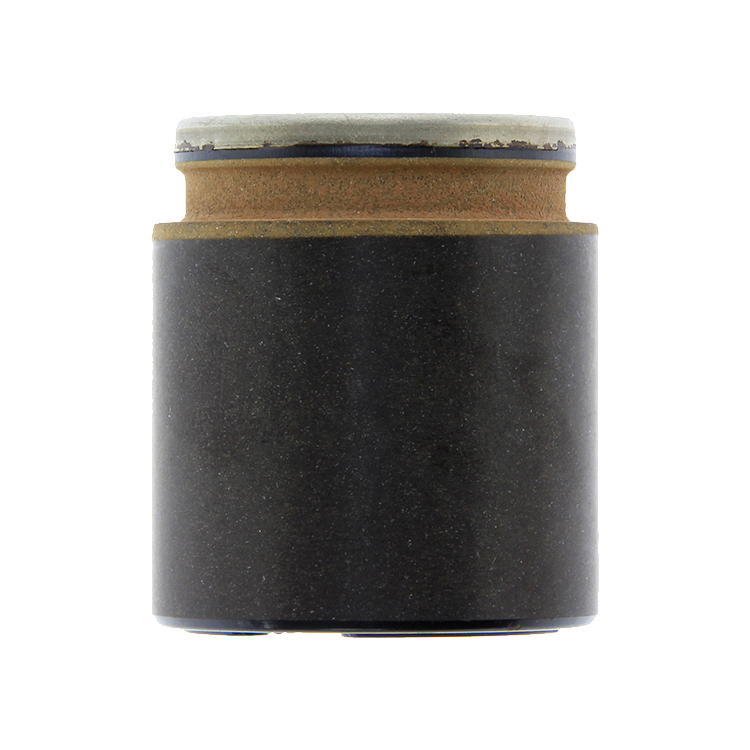

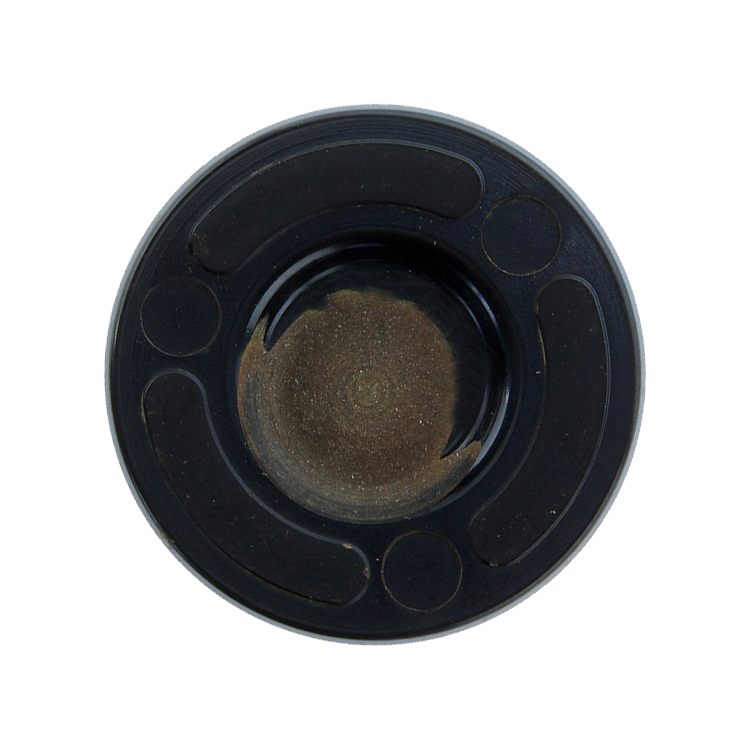

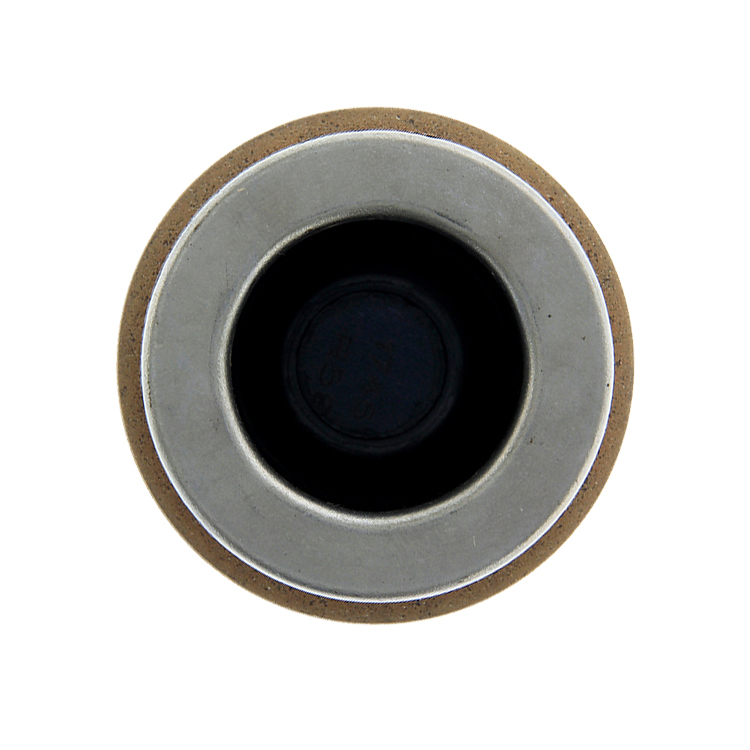

145.43003 14543003 Phenolic Brake Caliper Piston for Ford Mustang Nissan NV1500 NV2500 NV3500 TITAN

Centric Number: 145.43003/ 14543003

Inside Diameter: 23.47

Length: 49.0

Material: Phenolic

Piston OD mm: 42.72

Thickness mm: 9.82


Product Detail

Company Profile

Product Tags

Compatible Applications

FORD MUSTANG 2015-2018
NISSAN NV1500 2012-2021
NISSAN NV2500 2012-2021
NISSAN NV3500 2012-2021
NISSAN TITAN XD 2016-2021



Features:

  • Guarantees proper performance throughout the lifetime of the caliper
  • Made from high-quality phenolic resin
  • Carefully tested to ensure a precise fit, high quality, and excellent performance



Made from premium phenolic resin and manufactured to the most stringent OE requirements, this caliper piston is resistant to corrosion and rust while ensuring excellent performance. Phenolic pistons are also lighter than steel pistons and have superior heat insulating properties, which helps prevent heat from being transferred to the brake fluid and causing a spongy pedal.


  • Previous:
  • Next:

  • Brakes for Automobiles

    BIT’s main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture functional components such as brake calipers and accessories.




    What You Can Get from Our Factory

    We have complete catalogs for disc brakes, such as brake caliper, bracket, piston, seal, bleeder screw, bleeder cap, guide pin, pin boots, pad clip and so on. Anything in the disc brakes, welcome to contact us to get the catalog.

    0211030153016

    How disc brakes work

    When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.

    brake caliper3

    What is Our Production

    We are a professional manufacturer of braking system. We have our own R & D and production team. Each product will be tested after production and tested again before delivery.
